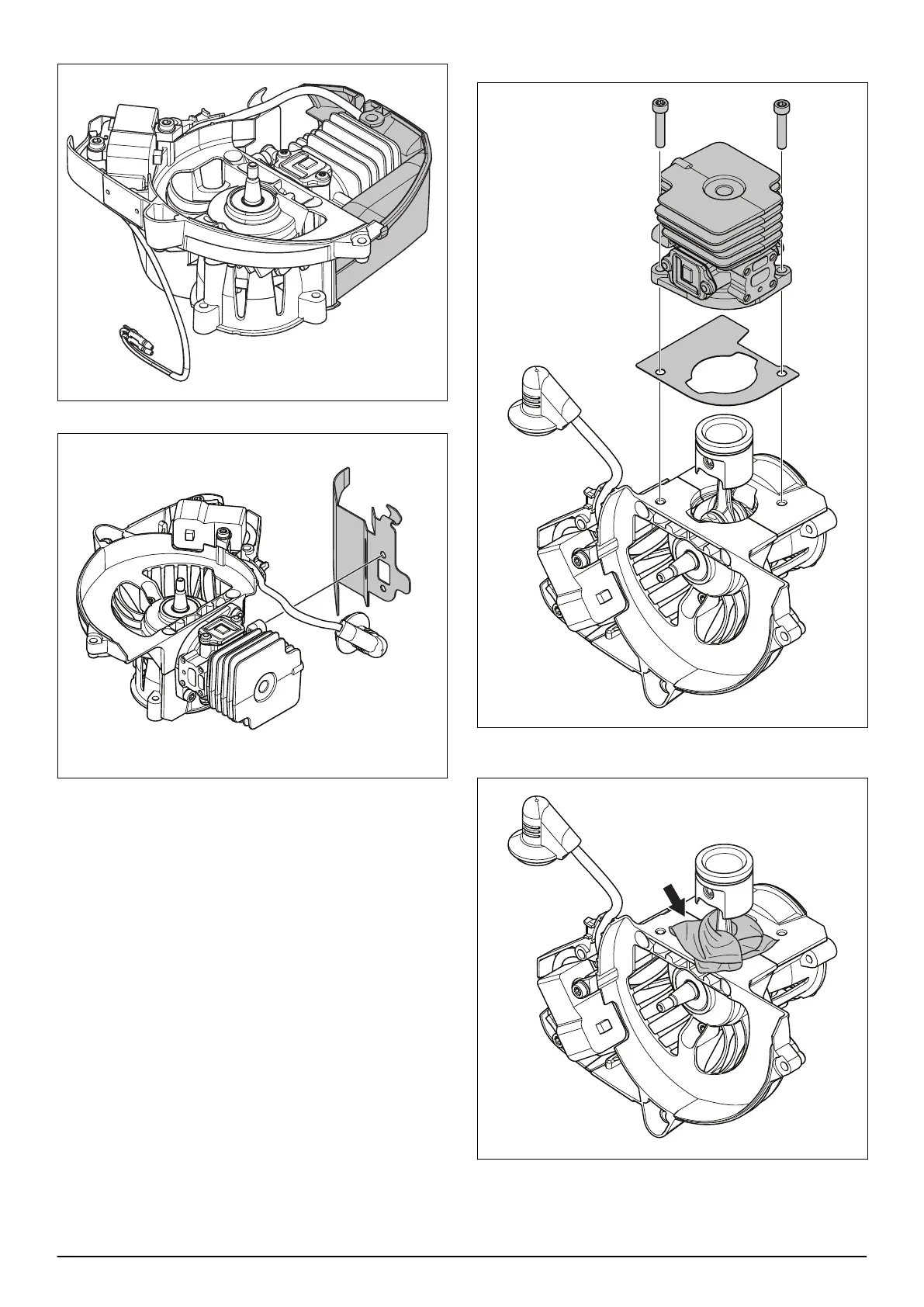

9.
Remove the cylinder cover.
10.
Remove the heat shield.
11.
Remove the 2 screws, the cylinder, and the cylinder
gasket.
12.
Put a cloth above the crankcase opening below the
piston.
34
- Repair instructions
1351 - 002 - 25.11.2020
