Assembly

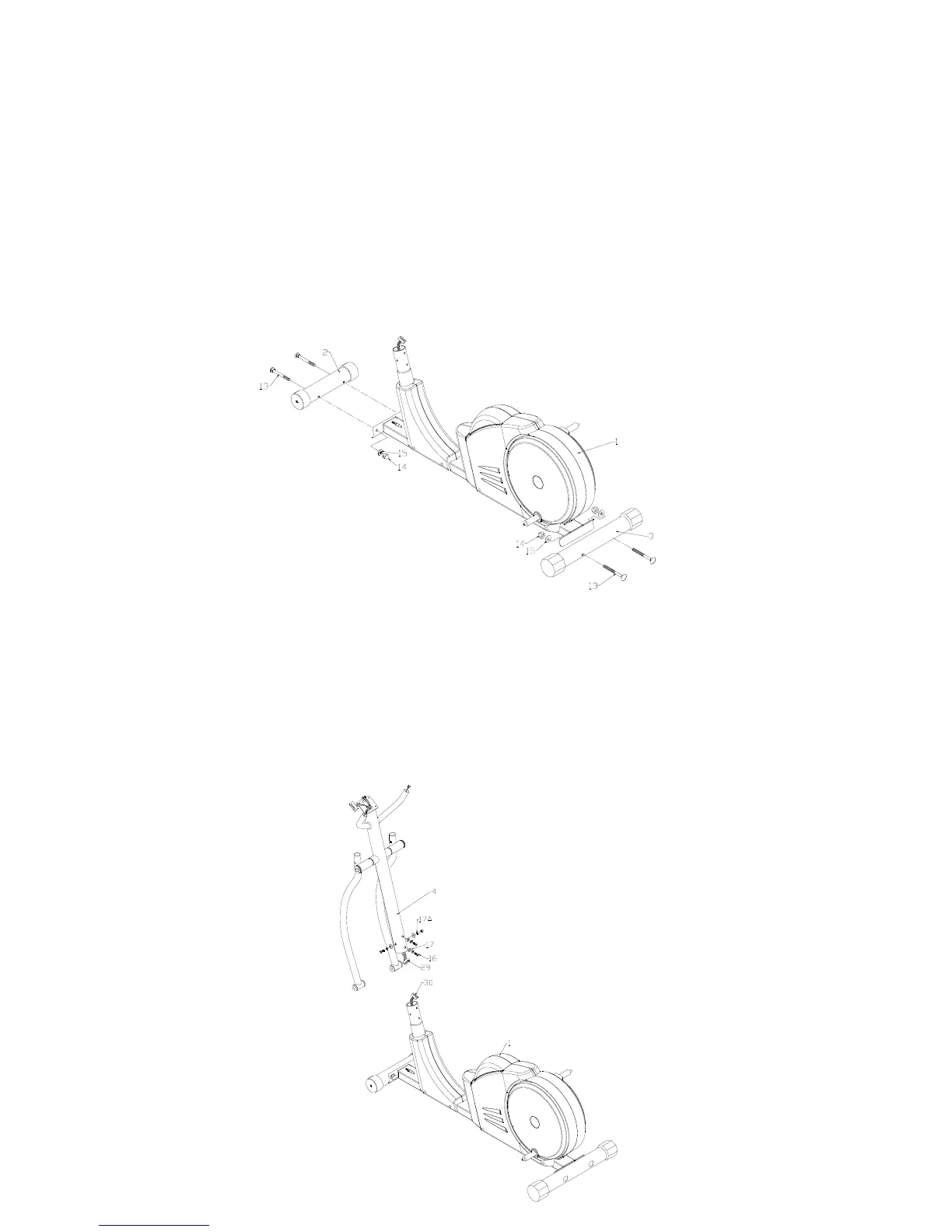

# STEP 1.
A) Attach the rear foot tube (3) to the main frame (1) fasten and secure carriage bolts (13) with
Arc washers (15) and domed nuts (14).
B) Attach the front foot tube (2) to the main frame (1) fasten and secure carriage bolts (13) with
Arc washers (15) and domed nuts (14).
# STEP 2.
A) Hold the front post (4) and connect the middle computer sensor wire (29) and lower wire
end (30) individually as shown on diagram.
B) Insert the Front Post (4) onto the main body of the cross trainer ensure no wires are
pinched / trapped..
C) Fasten and secure with 4 Hex Bolts (16), 4 Arc washers(17), 4 Split Washers (17A).
7
