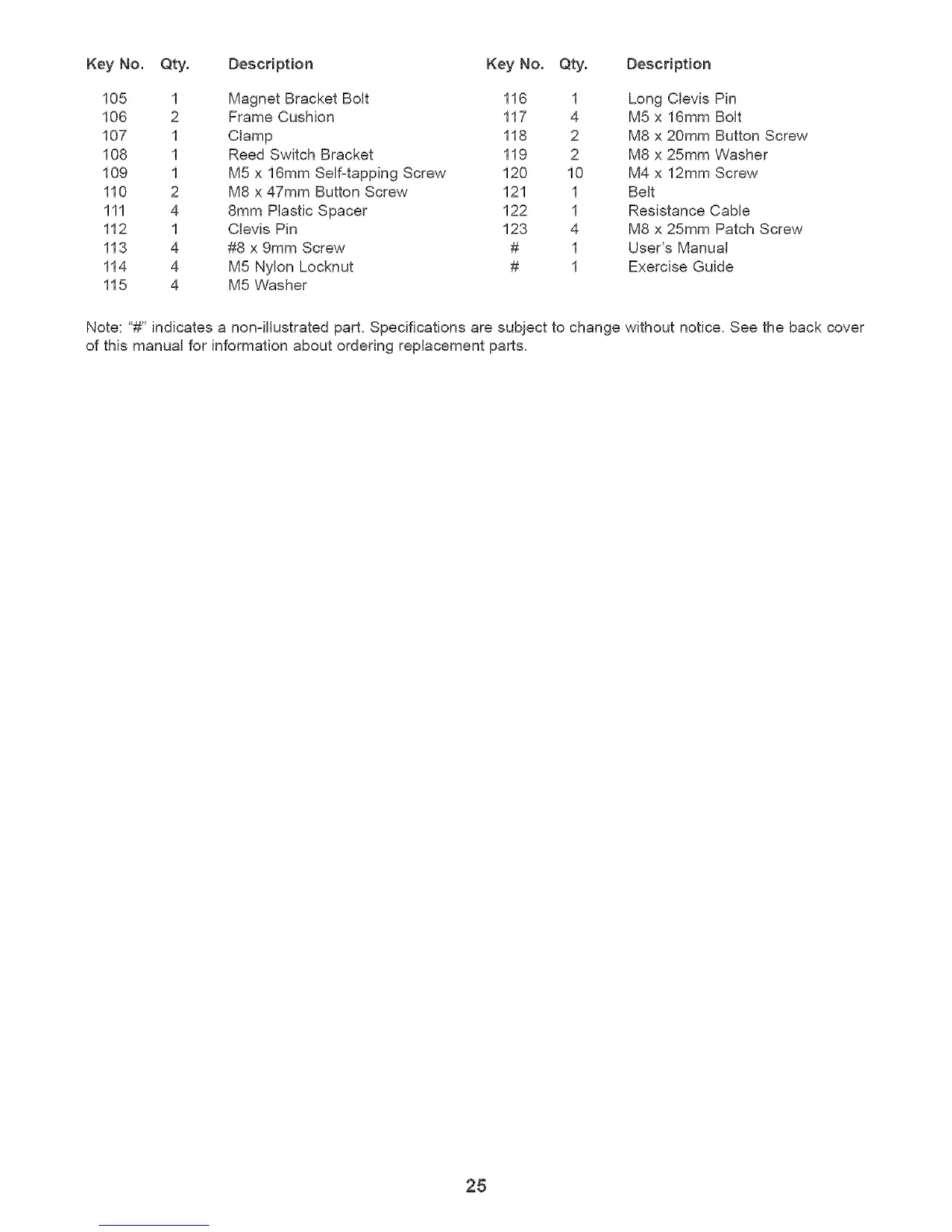

Key No. Qty. Description Key No. Qty. Desctipt{on
105 1 Magnet Bracket Bolt 116 1 Long Clevis Pin
106 2 Frame Cushion 117 4 M5 x 16mm Bolt
107 1 Clamp 118 2 M8 x 20mm Button Screw
108 1 Reed Switch Bracket 119 2 M8 x 25mm Washer
109 1 M5 x 16mm SeGtapping Screw 120 10 M4 x 12mm Screw
110 2 M8 x 47mm Button Screw 121 1 Belt
111 4 8mm Plastic Spacer 122 1 Resistance Cable
112 1 Clevis Pin 123 4 M8 x 25mm Patch Screw
113 4 #8 x 9mm Screw # 1 User's Manual
114 4 M5 Nylon Locknut # 1 Exercise Guide
115 4 M5 Washer
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
25
