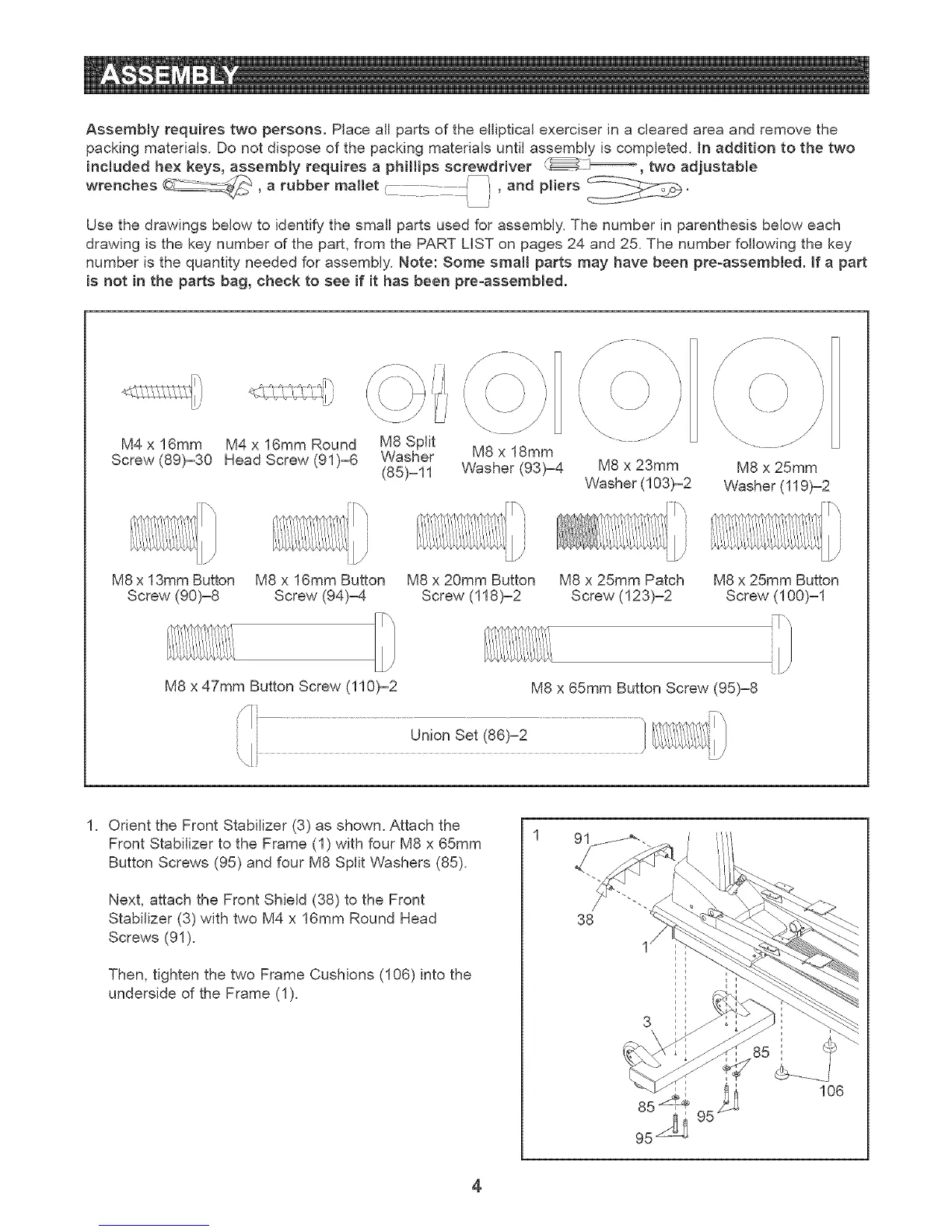

Assemblyrequirestwopersons.Placeallpartsoftheelliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed, in addition to the two
included hex keys, assembly requires a phillips screwdriver C_--_, two adjustable
wrenches __, a rubber mallet r ......... _, and pliers
_Xf_
Use the drawings below to identify the small parts used for assembly. The number in parenthesis below each
drawing is the key number of the part, from the PART LiST on pages 24 and 25. The number following the key
number is the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a part
is not in the parts bag, check to see if it has been pre-assembled.
M4 x 16mm M4 x 16mm Round
Screw (89)-30 Head Screw (91)-6
i','!'
'\ \/
\
M8 Split
Washer M8 x 18mm
(85)-11 Washer (93)-4 M8 x 23mm M8 x 25mm
Washer (103)-2 Washer (119)-2
M8 x 13mm Button M8 x 16mm Button M8 x 20mm Button M8 x 25mm Patch
Screw (90)-8 Screw (94)--4 Screw (118)-2 Screw (123)-2
M8 x 25mm Button
Screw (100)-1
M8 x 47mm Button Screw (110)-2
M8 x 65ram Button Screw (95)-8
1. Orient the Front Stabilizer (3) as shown. Attach the
Front Stabilizer to the Frame (1) with four M8 x 65mm
Button Screws (95) and four M8 Split Washers (85).
Next, attach the Front Shield (38) to the Front
Stabilizer (3) with two M4 x 16mm Round Head
Screws (91).
Then, tighten the two Frame Cushions (106) into the
underside of the Frame (1).
38
1/
95
95
85
106
4
To Next Page
