Reer MOSAIC MO4 - GUARD LOCK OPERATORS; GUARD LOCK

MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
122 8540780 • 07/05/2018 • Rev.33
English
GUARD LOCK

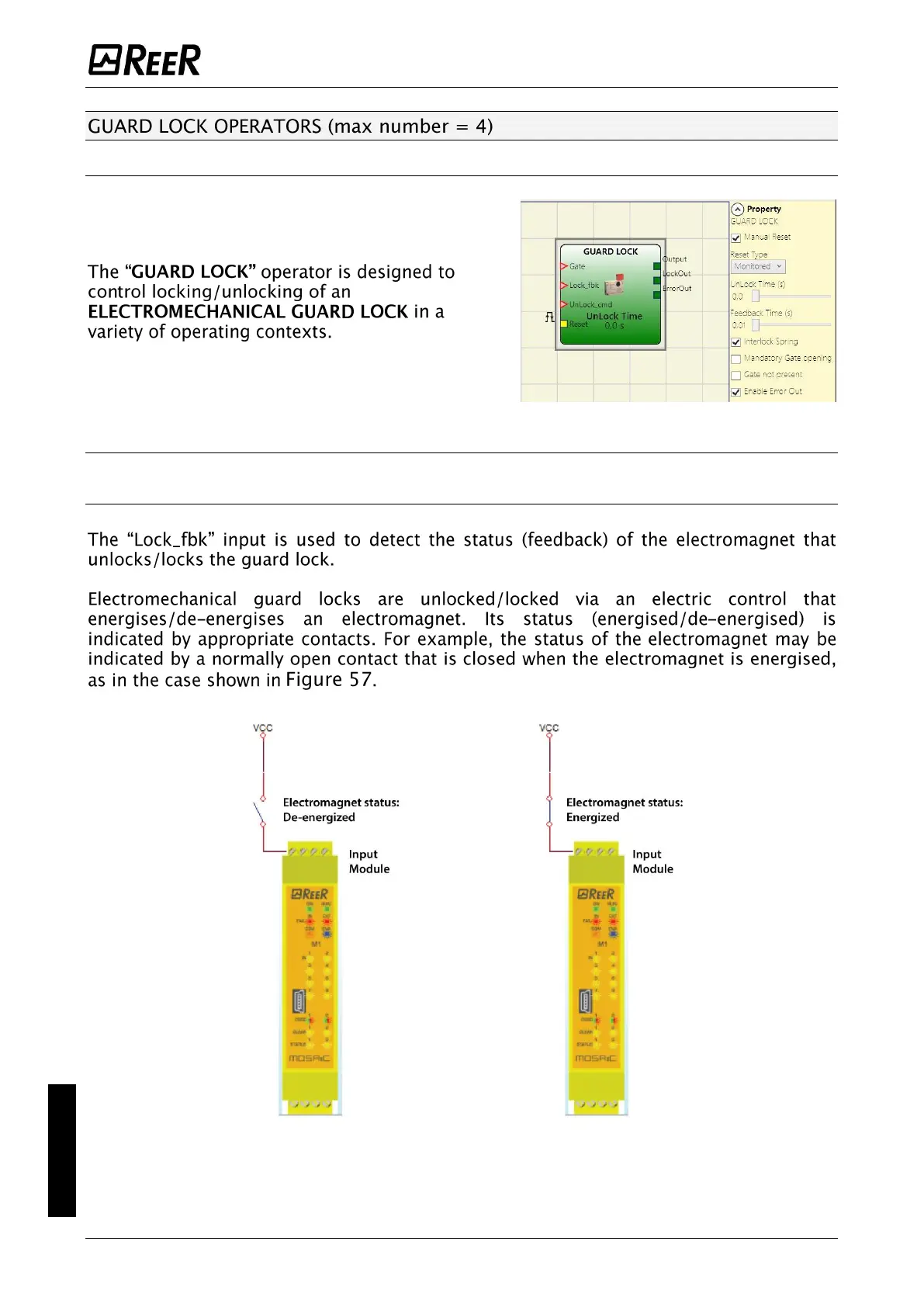

Description of "GUARD LOCK" operator inputs/outputs
“Lock_fbk” input
Figure 57 - Example of feedback of the status of the electromagnet of a guard lock. The signal
received by the module is processed by the "Guard Lock" operator.
