M5 HEAD & CENTER SECTION
Part Number:
30892 & 30884
FOR INSTALLATION WITH
M5 MOUNTING LEGS
5. Trucks come in many different configurations. Reese’s M-Series hitch is designed for use in light trucks such as the
GMC Sierra and Chevrolet Silverado. We recommend the use of long bed (8ft) light trucks for the best combination in truck
- trailer turning clearance.
6. If a short bed pickup (less than 8 ft. but longer than 6 ft.) is to be used for towing, Reese recommends the trailer be
equipped with a minimum 13” extended pin box to help gain additional truck - trailer turning clearance (See trailer
manufacturer for options) (See Fig. 19).
7. The height of the hitch and the pin box should be adjusted so the trailer is approximately level as it is towed. Allow
approximately 6 inches clearance between the top of the pickup walls and the underside of the front of the trailer for pitch
and roll of the trailer. (See Fig. 20). For off road use allow more clearance between pickup walls and trailer.
KING PIN
RV TRAILER
TRUCK

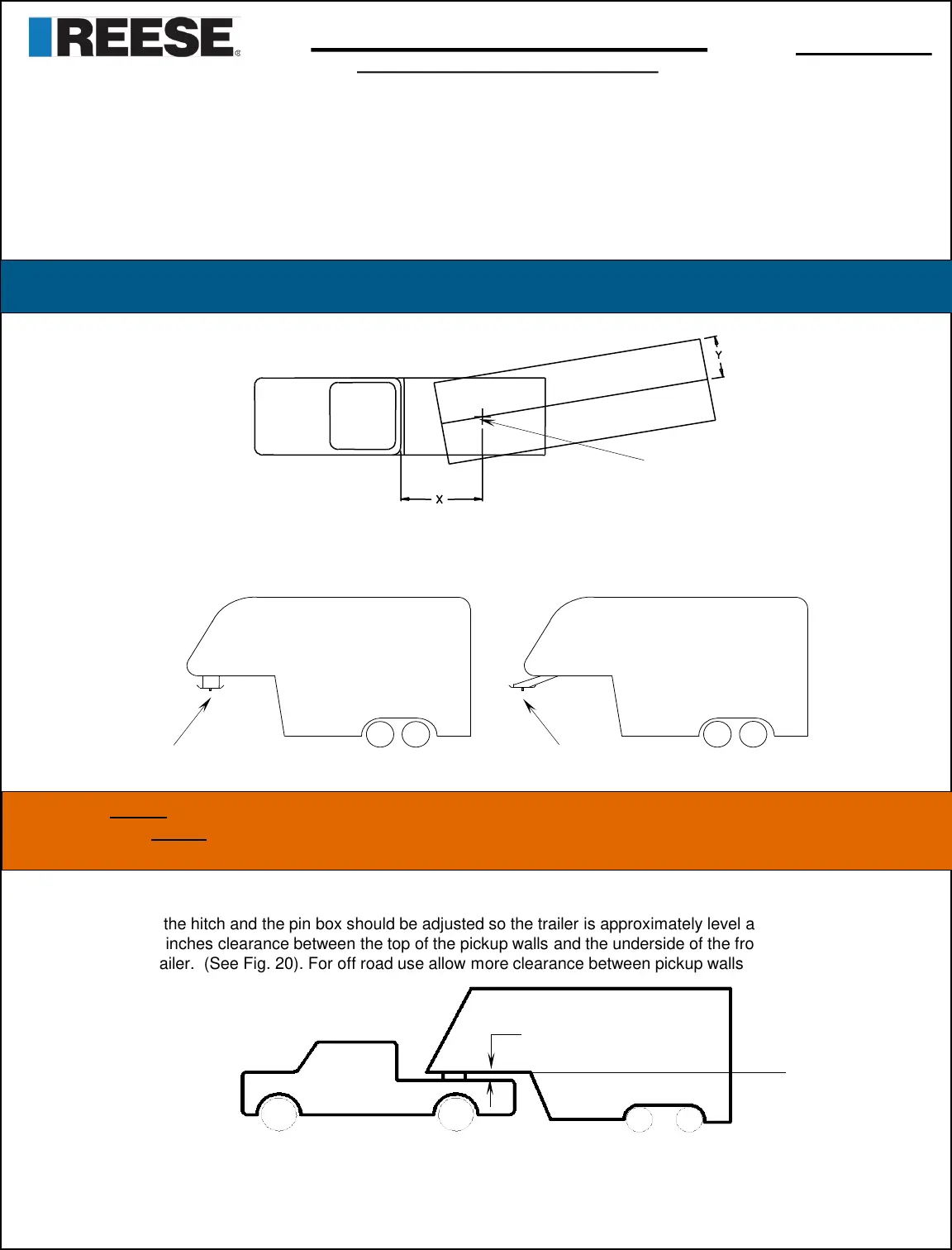

Figure 18
Conventional Pin Box
Extended Pin Box
Figure 19
NOTICE: The distance from the back of the truck cab to the center of the rear truck axle (“X” in Fig. 18), should be
approximately 4 inches greater than one-half the trailer width (“Y” in Fig.18)
Approximately 6 Inches
Level Trailer
Figure 20
WARNING: Do Not install this fifth wheel hitch on or attempt to tow with a short bed pickup truck that has a bed
shorter than 6 ft. Unless you use a REESE Sidewinder or Revolution Pin Box. Doing so could result in vehicle
damage, serious injury, or death.
X
Installation Instructions
