3.6 Stretcher Mode

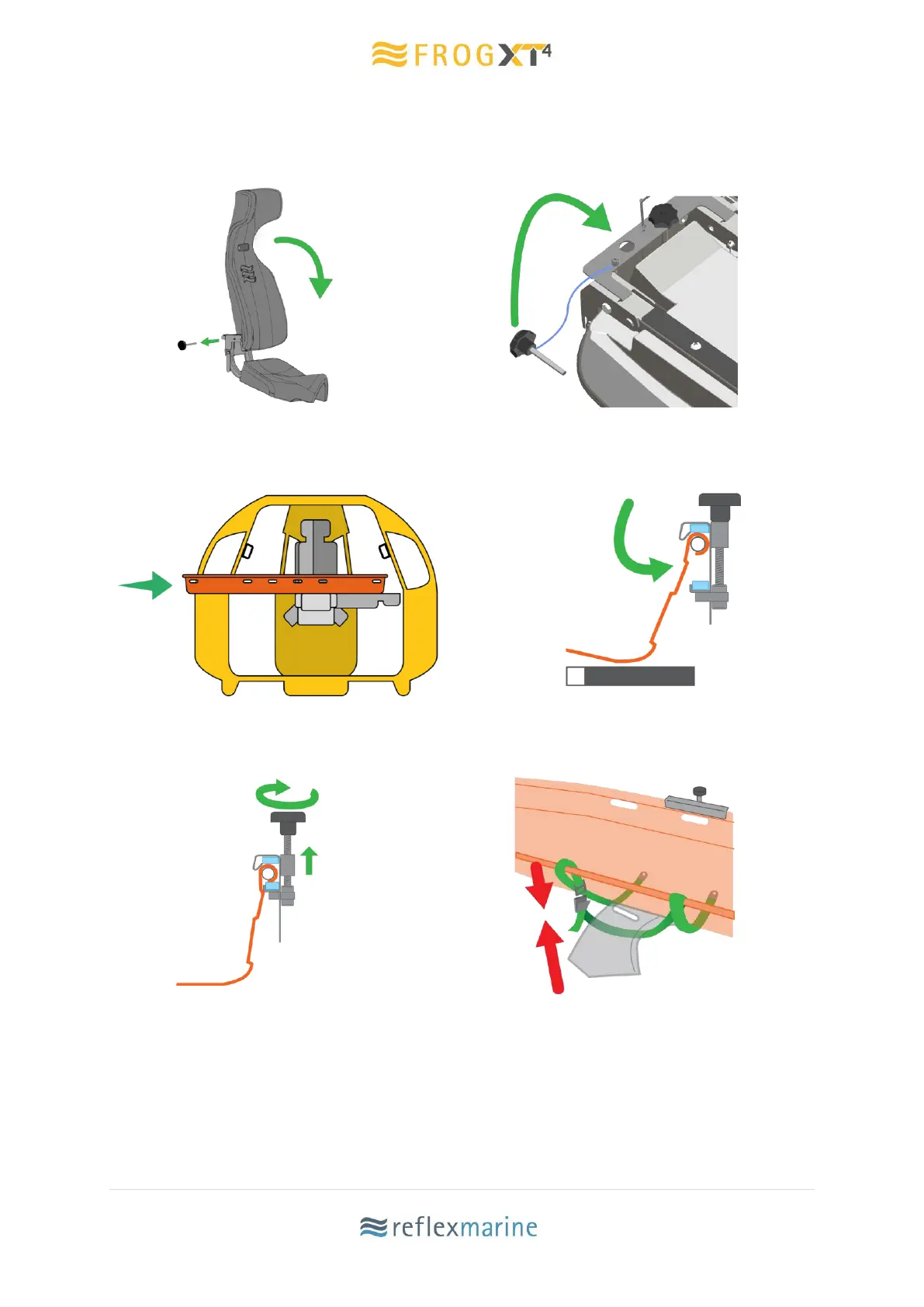

The following steps outline the procedure required to convert the FROG-XT4 into stretcher
mode. For units XT4-126 onwards.
1 Remove thumb screws and fold down
the seats behind buoyancy panels A
and D
2 Place both thumb screws into place holder
3 Slide stretcher in
4 Insert stretcher into clamp
5 Tighten thumbscrew
6 Attach straps to anchor points
The stretcher clamp has been designed to fit the Ferno Model 71 Basket stretcher.
Please note that not all stretcher types will fit. The specific stretcher in use should be test
fitted prior to being used.
