Appendix A - Stretcher Conversion Instructions Units XT4-001 to XT4-125

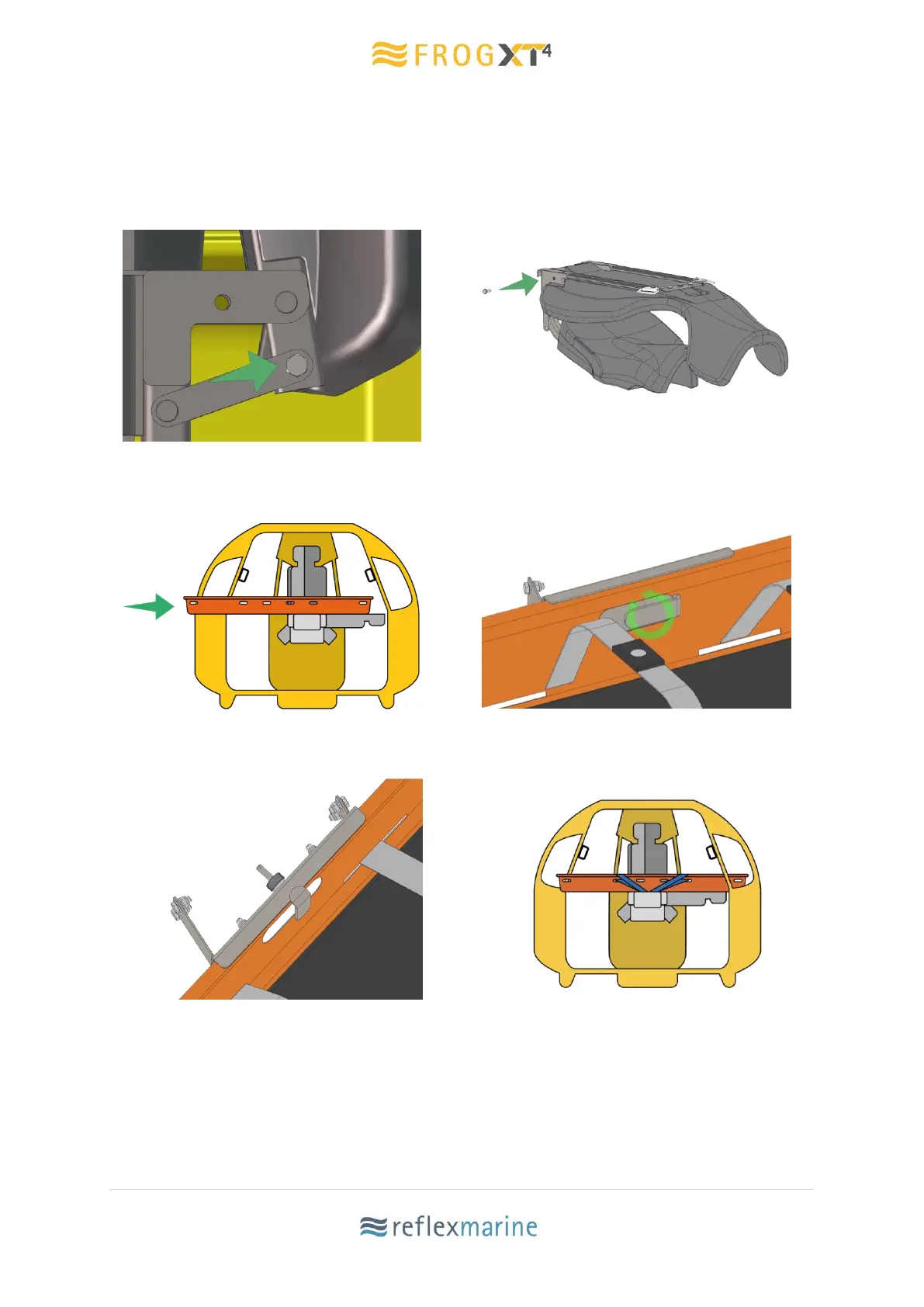

The following steps outline the procedure required to convert the FROG-XT4 into stretcher
mode.
1 Remove fixings and fold down seat
2 Refit fittings
3 Slide stretcher in
4 Rotate clamp anti-clockwise 90 degrees
5 Tighten thumbscrew
6 Attach straps to anchor points
The stretcher clamp has been designed to fit the Ferno Model 71 Basket stretcher.
Please note that not all stretcher types will fit. The specific stretcher in use should be test
fitted prior to being used.
