3.8 Lifting Assembly Connection

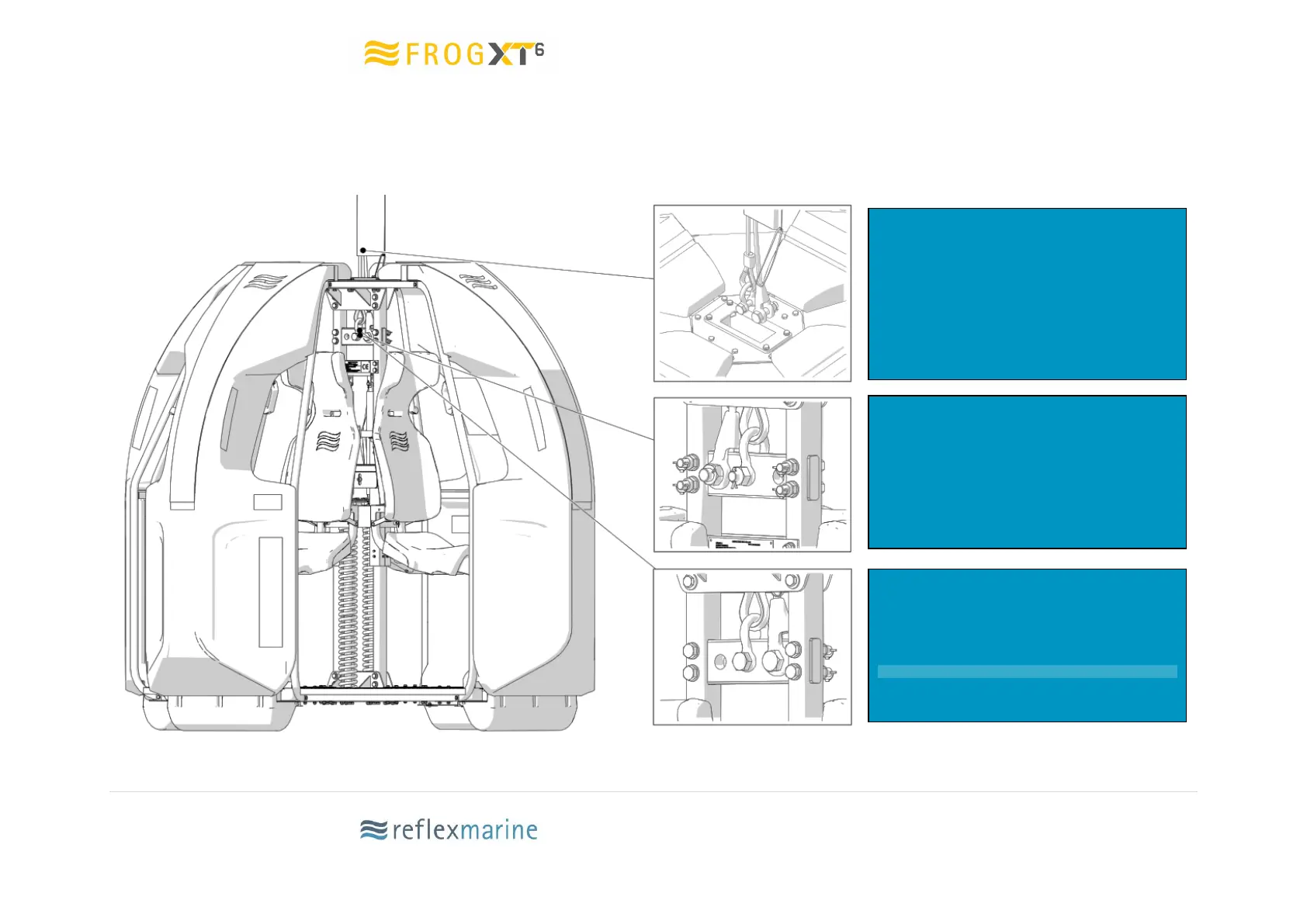

Figure 4 Lifting Assembly
Lifting assembly is fitted to the FROG-XT
by initially lowering it through the letter
box opening at the top of the carrier.
The lifting assembly is fitted with two
different terminations. The main leg is
fitted with a bow shackle and the back-up
leg is fitted with a spelter socket.
The main leg connects to the centre hole
in the load plate and the backup leg
connects to the larger of the two
remaining holes
A handling line can then be fitted to the
free hole in the load plate
