Reflex EEHR Series - 4 Technical Data

Technical data
8
— English EEHR Electric screw-in heating element — 18.05.2018
4
Technical data
Note!
The following values apply for all variants:
• Permissible ambient temperature at the housing:
• Permissible minimum content of the water tank:
• Permissible overpressure:
35 °C
200 l
Max. 10 bar

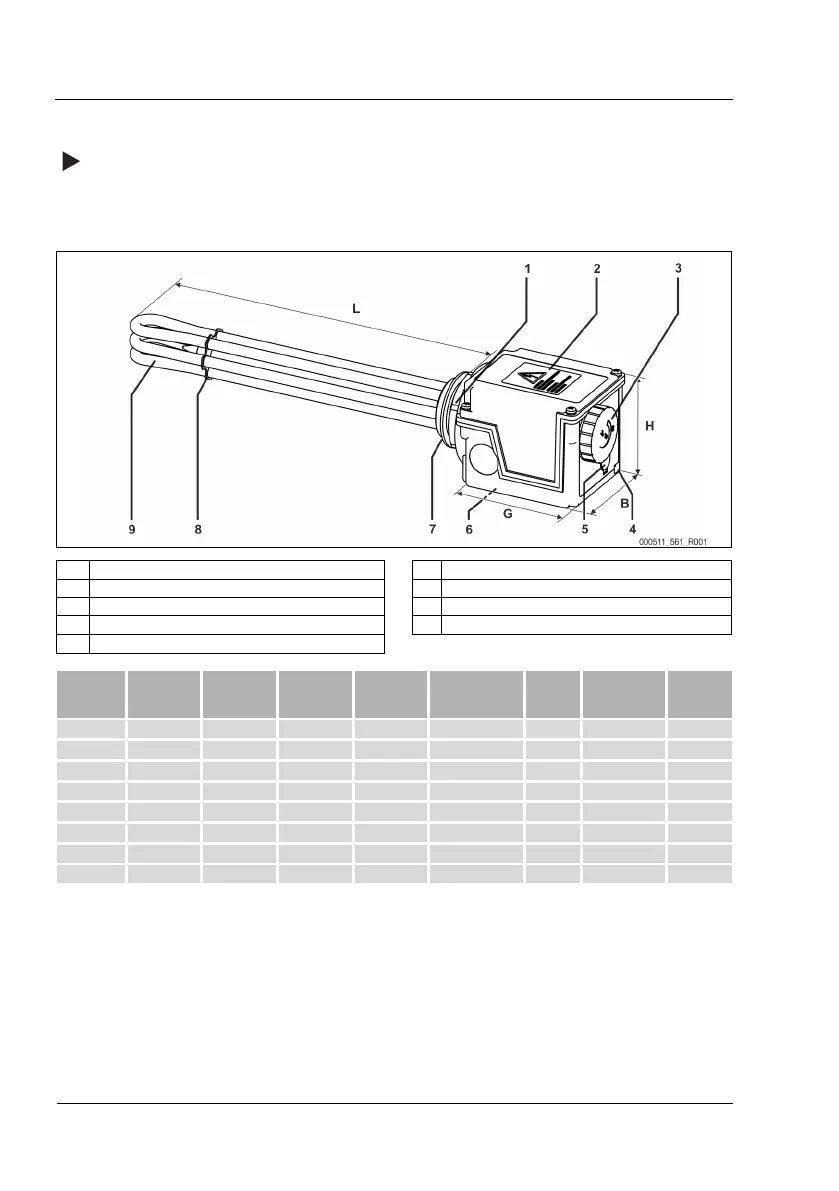

1 60 mm AF open-ended spanner fixture 6 Nameplate (on the bottom)
2 Warning sign 7 G 1 ½ B screw-in thread
3 Temperature control knob 8 Spacer plate for installation lengths larger than 240 mm
4 Indicator lamp 9 Heating elements
5 Cover, safety temperature limiter
Type
Installation
length
(L) mm
Width
(W) mm
Height
(H) mm
Housing
length
(G) mm
Electric supply
V
Capacity
KW
Power density
W/cm
2
Type of
protection
EEHR 2,0 KW 320 88 88 118 ~230 or 3~400 2.0 7.5 IP 45
EEHR 2,5 KW 390 88 88 118 ~230 or 3~400 2.5 6.3 IP 45
EEHR 3,0 KW 390 88 88 118 ~230 or 3~400 3.0 7.6 IP 45
EEHR 3,8 KW 430 88 88 118 3~400 3.8 8.5 IP 45
EEHR 4,5 KW 470 88 88 118 3~400 4.5 8.5 IP 45
EEHR 6,0 KW 500 88 88 118 3~400 6.0 10.2 IP 45
EEHR 7,5 KW 720 88 88 118 3~400 7.5 8.1 IP 45
EEHR 9,0 KW 780 88 88 118 3~400 9.0 8.8 IP 45
