The Reflex Control Smart app provides the following functions amongst others:
• Intuitive and self-explanatory menu and operating
guidance
• Easy and quick commissioning (commissioning-wizard)
• Querying of the system pressure
• Setting of operating mode Levelcontrol, Magcontrol
and make-up degassing
• Individual configuration of the degassing mode
(operating times for continuous and interval
degassing, number of cycles, day of the week and
time)
• Maintenance and troubleshooting wizard
• Software updates for system control

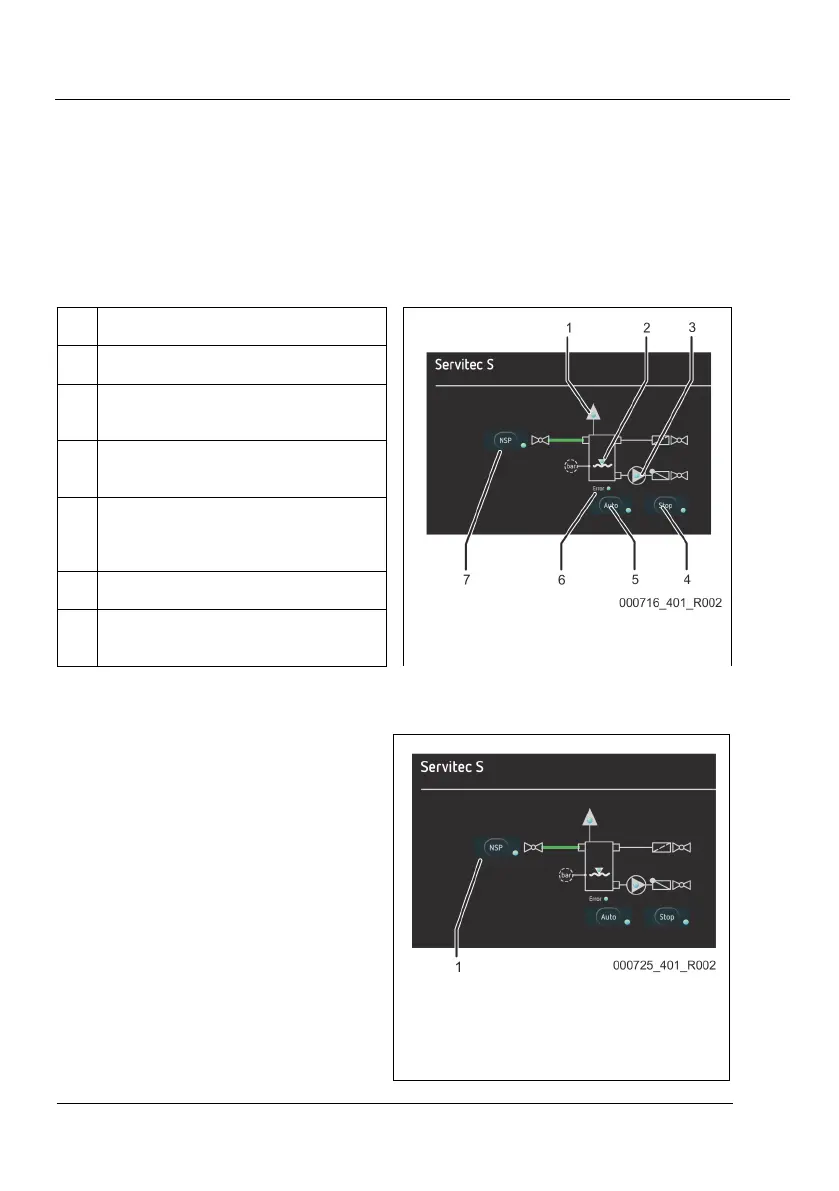

9.2 Operator panel
1 Degassing LED
• Turns green during degassing
2 Water level LED
• Lights up red if a warning exists
3 Pump LED
• Lights up green during operation
• Flashes during vacuum test
4 Stop button/LED
• For stop mode
• Lights up yellow
5 Auto button/LED
• For automatic mode
• Acknowledge error messages
• Lights up green
6 Error LED
• Lights up red if an error exists
7 Make-up button/LED
• For manual make-up
• Lights up green if make-up is necessary
9.3 Manual make-up
-up can be performed via the make-up button
Press the button for 10 seconds to increase the pressure
by 0.1 bar.
Repeat for a further pressure increase.
Operating mode “Magcontrol” can only be activated
and processed via the Reflex Control Smart App for
Android & iOS.
In “Magcontrol” operating mode the make-up
button on the operating display is inactive.
As supplied, the system can also be operated
directly without the app. It runs automatically
preset in “Levelcontrol” mode with 230 V applied
via the supply cable for an external make-up
request from an external pressure maintenance
To Next Page
