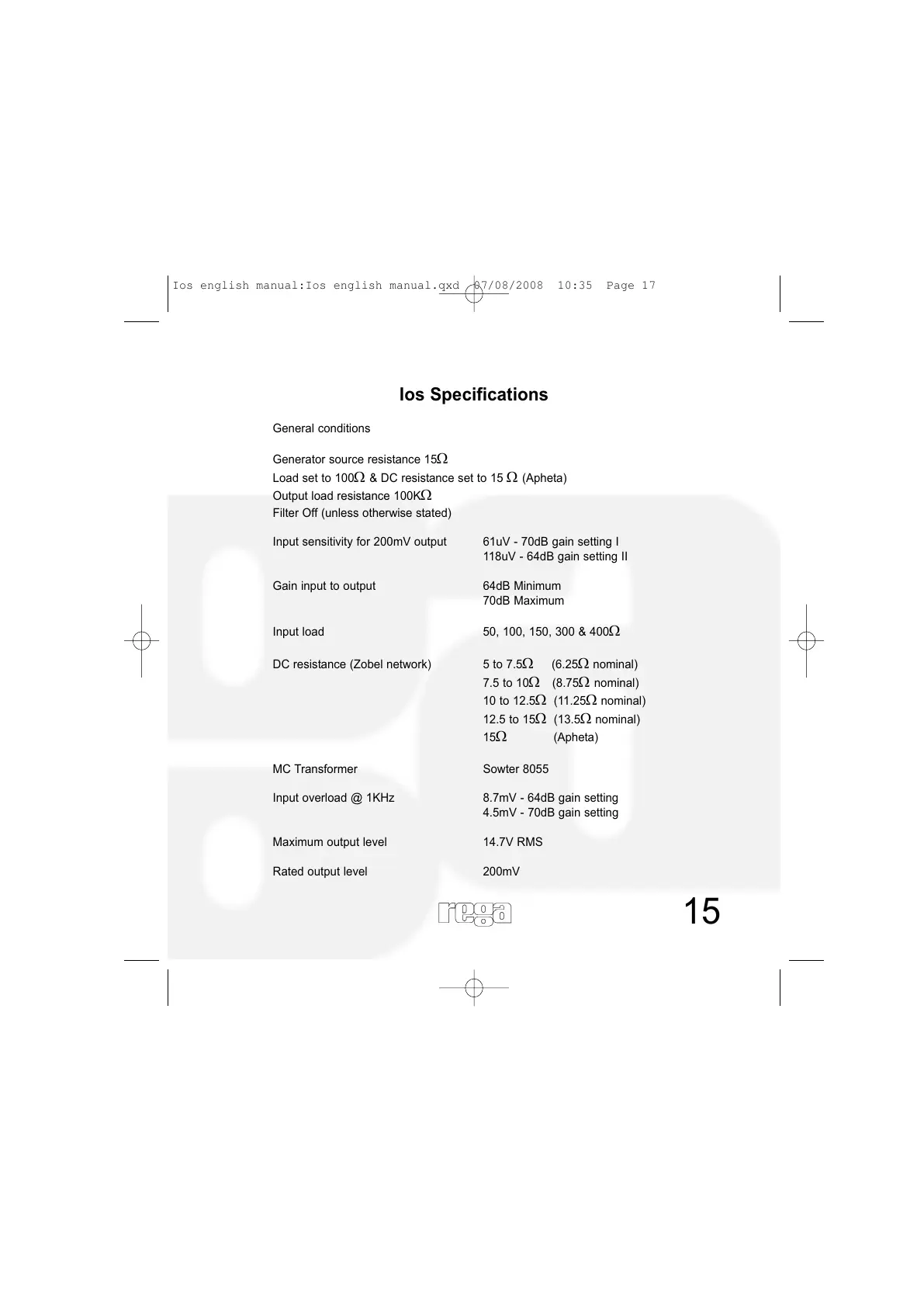

Ios Specifications
General conditions
Generator source resistance 15Ω
Load set to 100Ω & DC resistance set to 15 Ω (Apheta)
Output load resistance 100KΩ
Filter Off (unless otherwise stated)
Input sensitivity for 200mV output 61uV - 70dB gain setting I
118uV - 64dB gain setting II
Gain input to output 64dB Minimum
70dB Maximum
Input load 50, 100, 150, 300 & 400Ω
DC resistance (Zobel network) 5 to 7.5Ω (6.25Ω nominal)
7.5 to 10Ω (8.75Ω nominal)
10 to 12.5Ω (11.25Ω nominal)
12.5 to 15Ω (13.5Ω nominal)
15Ω (Apheta)
MC Transformer Sowter 8055
Input overload @ 1KHz 8.7mV - 64dB gain setting
4.5mV - 70dB gain setting
Maximum output level 14.7V RMS
Rated output level 200mV
