8

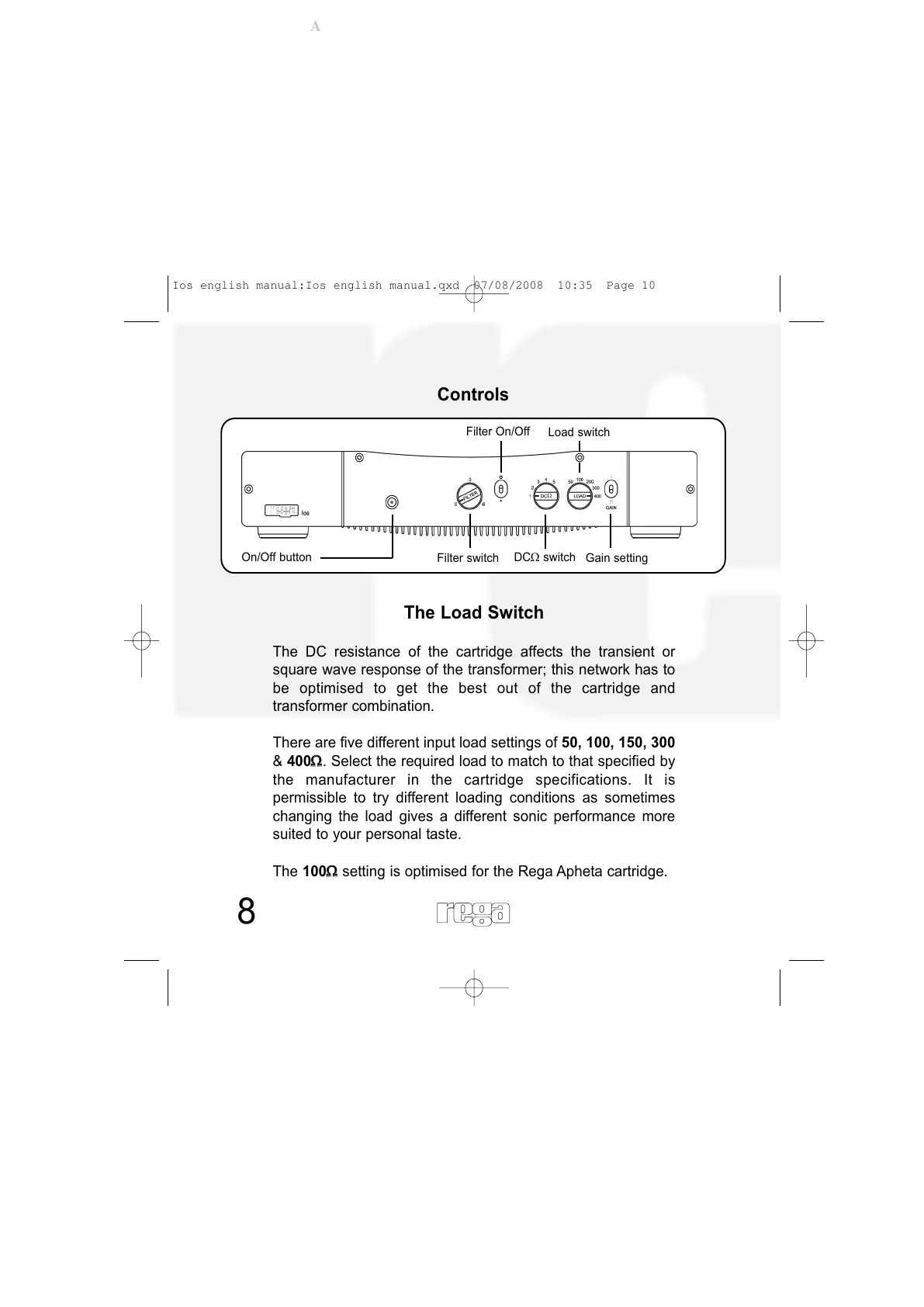

Controls
The Load Switch
The DC resistance of the cartridge affects the transient or
square wave response of the transformer; this network has to
be optimised to get the best out of the cartridge and
transformer combination.
There are five different input load settings of 50, 100, 150, 300
& 400
Ω
. Select the required load to match to that specified by
the manufacturer in the cartridge specifications. It is
permissible to try different loading conditions as sometimes
changing the load gives a different sonic performance more
suited to your personal taste.
The 100
Ω
setting is optimised for the Rega Apheta cartridge.
Load switch
Filter switch
DCΩ switch
On/Off button
Gain setting
Filter On/Off
Ω
