Technical Information
12-10
DATE:
REVISION DESCRIPTION APP. BY:DR. BY:
DR. BY:
02-19-04
TELEPHONE (407) 851-4360
DRAWING TITLE:
REGAL MARINE INDUSTRIES
ORLANDO FLORIDA 32809-7895
EVC22H
LATEST REV :
APP. BY:

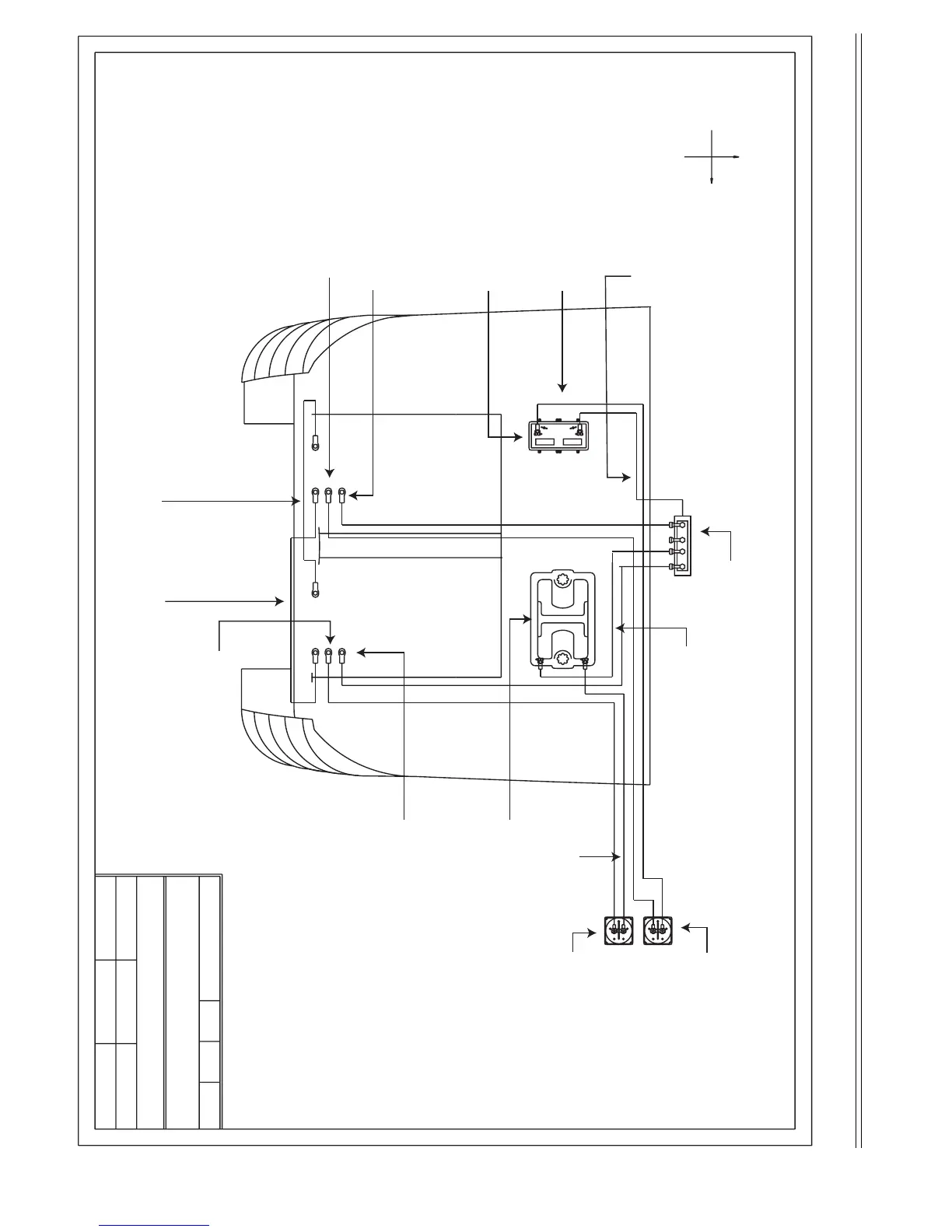

VC BATTERY CABLE ROUTING
DWG. NO.:
SCALE:
2300 JETPORT DRIVE
REV. DATE:
NOTES:
1. INSTALL CABLES AS SHOWN.
2. CABLES SHALL BE SECURED AT LEAST
EVERY 18 INCHES TO COMPLY WITH
ABYC/NMMA STANDARDS, OR AT LEAST
EVERY 12 INCHES TO COMPLY FOR
CE CERTIFICATION.
3. USE CHAFE PROTECTION AS NEEDED.
FWD
STBD
-
+
-
+
PORT BATTERY SWITCH
STBD BATTERY SWITCH
MAIN DC GROUND BUSS
8-B STBD ENGINE/
HOUSE/OPT GENERATOR
BATTERY
PORT ENGINE/
ELECTRONICS/
OPT WINDLASS BATTERY
#2 ENGINE TO
ENGINE GROUND
#1 ENGINE TO
ENGINE GROUND
FROM MAIN DC
GROUND BUSS
FROM PORT
BATTERY SWITCH
FROM MAIN DC
GROUND BUSS
FROM STBD
BATTERY SWITCH
TO PORT
BATTERY SWITCH
TO MAIN DC
GROUND BUSS
TO STBD
BATTERY SWITCH
TO MAIN DC
GROUND BUSS
