Technical Information
12-11
FWD
STBD
NOTES:
1. HARNESS SHALL BE SECURED AT LEAST
EVERY 18 INCHES TO COMPLY WITH
ABYC/NMMA STANDARDS, OR AT LEAST
EVERY 12 INCHES TO COMPLY FOR
CE CERTIFICATION.
2. USE CHAFE PROTECTION AS NEEDED.
LEFT FRONT
SPEAKER
FRESH
WATER PUMP
120VAC OUTLET/
EXHAUST BLOWER SWITCH
EXHAUST BLOWER
OPT A/C UNIT/
BOND
CONNECTORS TO BATTERY
SWITCH PANEL
WASTE TANK LEVEL SENDER/
OPT MACERATOR
VALANCE
LIGHTS
UTILITY LIGHT
WATER HEATER/
BOND
CLOSET LIGHT
HEAD OVERHEAD LIGHT
120VAC/12VDC
DISTRIBUTION PANEL
WATER TANK
LEVEL SENDER
FWD BILGE PUMP/
AUTO FLOAT SWITCH/
SHOWER SUMP
WATER TANK/HOLDING TANK
LEVEL INDICATOR PANEL
EVC22C
2300 JETPORT DRIVE
DWG. NO.:
ORLANDO FLORIDA 32809-7895
REGAL MARINE INDUSTRIES
TELEPHONE (407) 851-4360
APP. BY:REVISION DESCRIPTION
DRAWING TITLE:
DR. BY:
APP. BY:
LATEST REV:
DATE:
R SIFORD
DR. BY:
01-21-04
REV. DATE:

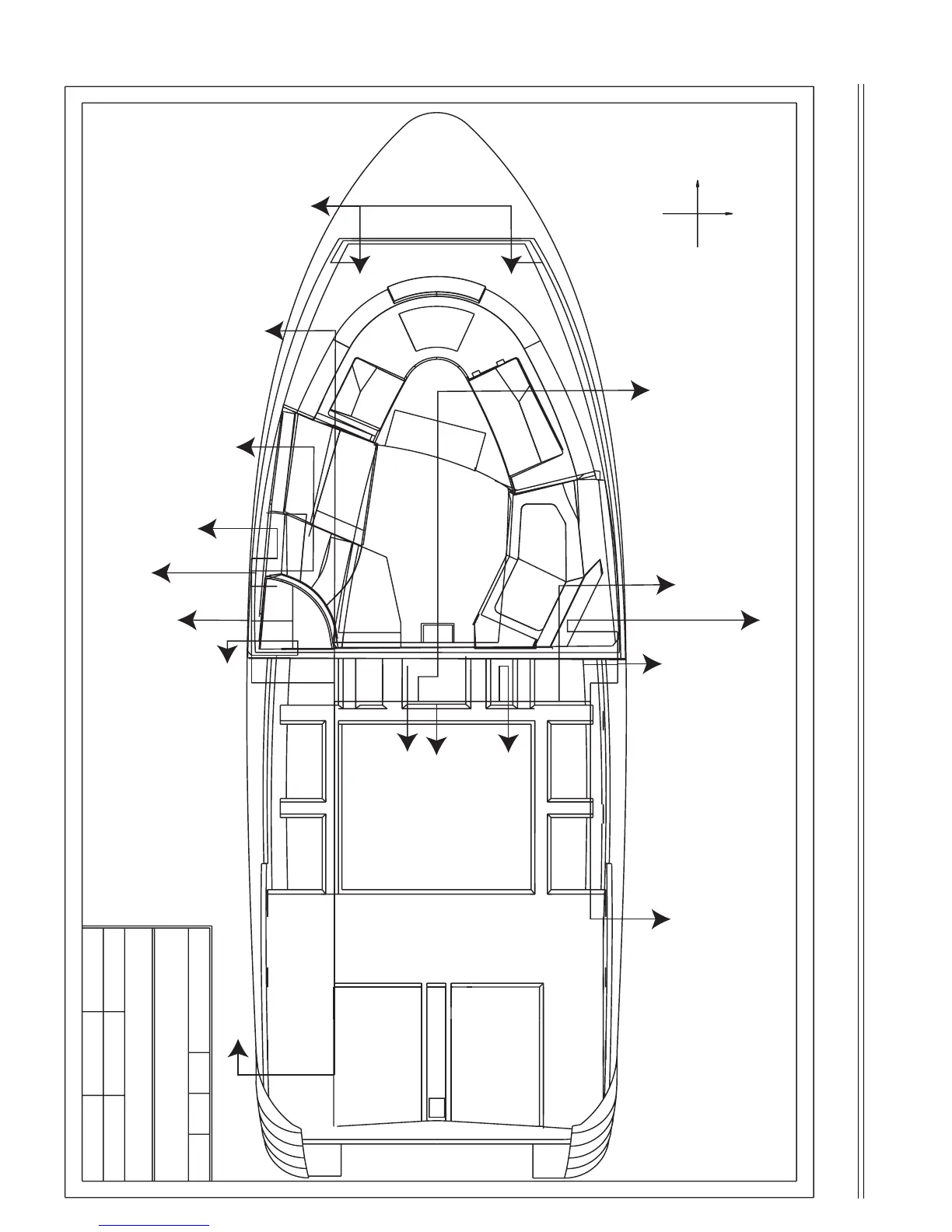

VC HULL HARNESS INSTALLATION
SCALE:
