Technical Information
12-12
NOTES:
1. HARNESS SHALL BE SECURED AT LEAST
EVERY 18 INCHES TO COMPLY WITH
ABYC/NMMA STANDARDS, OR AT LEAST
EVERY 12 INCHES TO COMPLY FOR
CE CERTIFICATION.
2. USE CHAFE PROTECTION AS NEEDED.
EVC22D
DR. BY:REVISION DESCRIPTION APP. BY: REV. DATE:
DRAWING TITLE:
2300 JETPORT DRIVE
SCALE:
DWG. NO.:

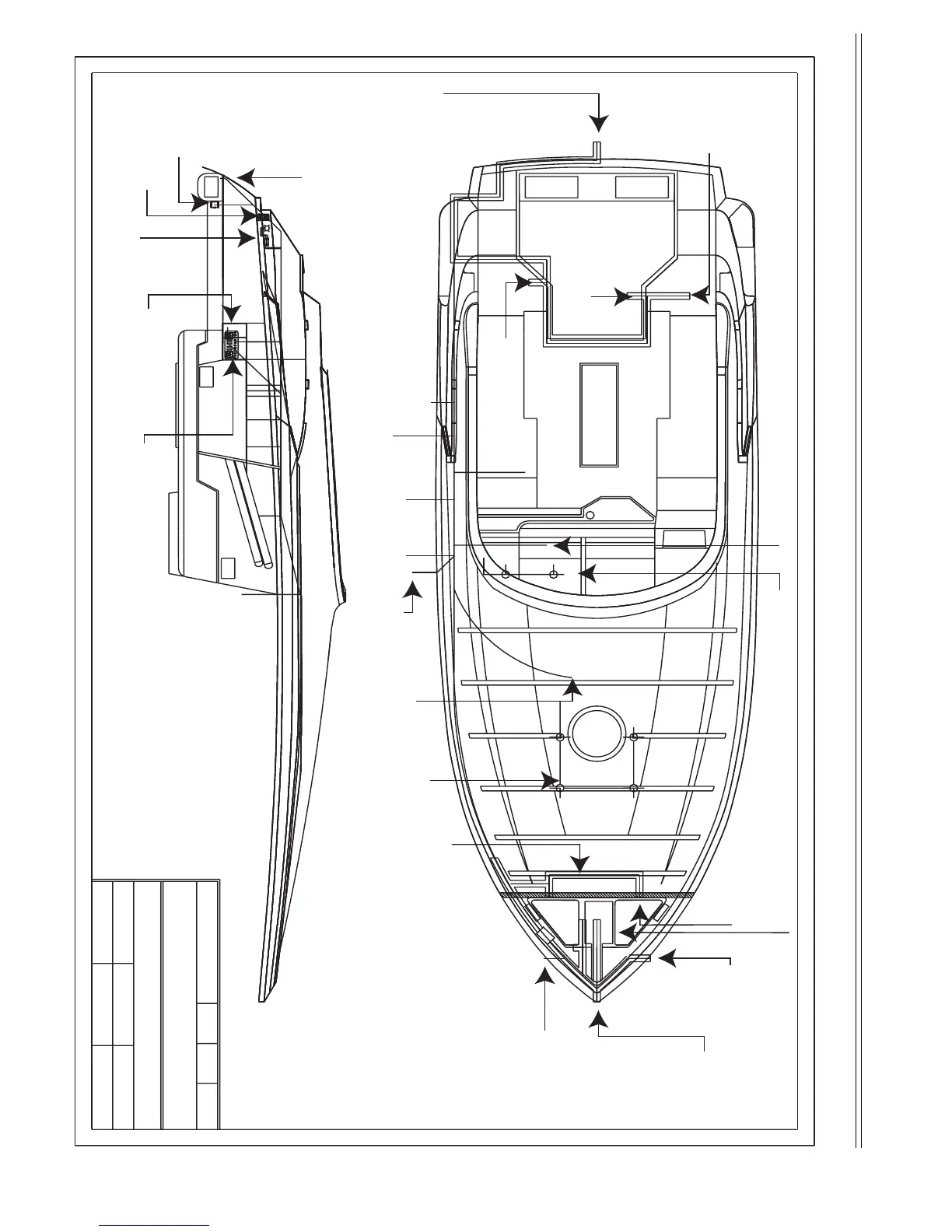

VC DECK HARNESS INSTALLATION
APP. BY:
LATEST REV :
TELEPHONE (407) 851-4360
ORLANDO FLORIDA 32809-7895
REGAL MARINE INDUSTRIES
DATE:
01-30-04
DR. BY:
FORWARD
DECK LT.
SPOT LT.
(OPT)
STBD ROPE
LOCKER LT.
WIPER
HORN
ROUTE TO
AFT COCKPIT
LIGHT/STBD
BILGE LIGHT/SPEAKER
120VAC INLET/
INTERMEDIATE MAIN AC
BREAKER
12VDC POWER
CONNECTOR/
COCKPIT SW PANEL
ROUTE TO
TRANSOM LT.
HORN
TRANSOM LT.
ALL-ROUND LT.
SOCKET
WINDLASS
CONTROL
(OPT)
WINDLASS
MOTOR
PORT ROPE
LOCKER LIGHT
PORT DOCKING
LIGHT (OPT)
STBD DOCKING
LIGHT (OPT)
EXHAUST
BLOWERS
FWD CABIN LTS
AFT CABIN
OVERHEAD LTS
DASH
FUNCTIONS
12VDC/120VAC
DISTRIBUTION
PANEL
COMBINATION
BOW LT
(MOUNTED TO BOW RAIL)
FWD
CKPT LT
STBD
BILGE LT/
RR SPEAKER
PORT BILGE
LT
RR
SPEAKER
BATTERY SWITCH
PANEL
