Regency C34 - Rigid Pipe Venting System Options; Horizontal and Vertical Termination Types

18 | Regency
®
CLASSIC C34-10 Direct Vent Freestanding Gas Stove
|
18
installation
Pipe Length
Vertical
Termination
Cap
Storm Collar
Flashing
Ceiling Firestop
24" Pipe
Length
Adj.Pipe Length
11"-14-5/8"
90 Elbow
o
Horizontal
Termination Cap
# 946-523/P
Wall Thimble
Vinyl Siding
Standoff (Optional)

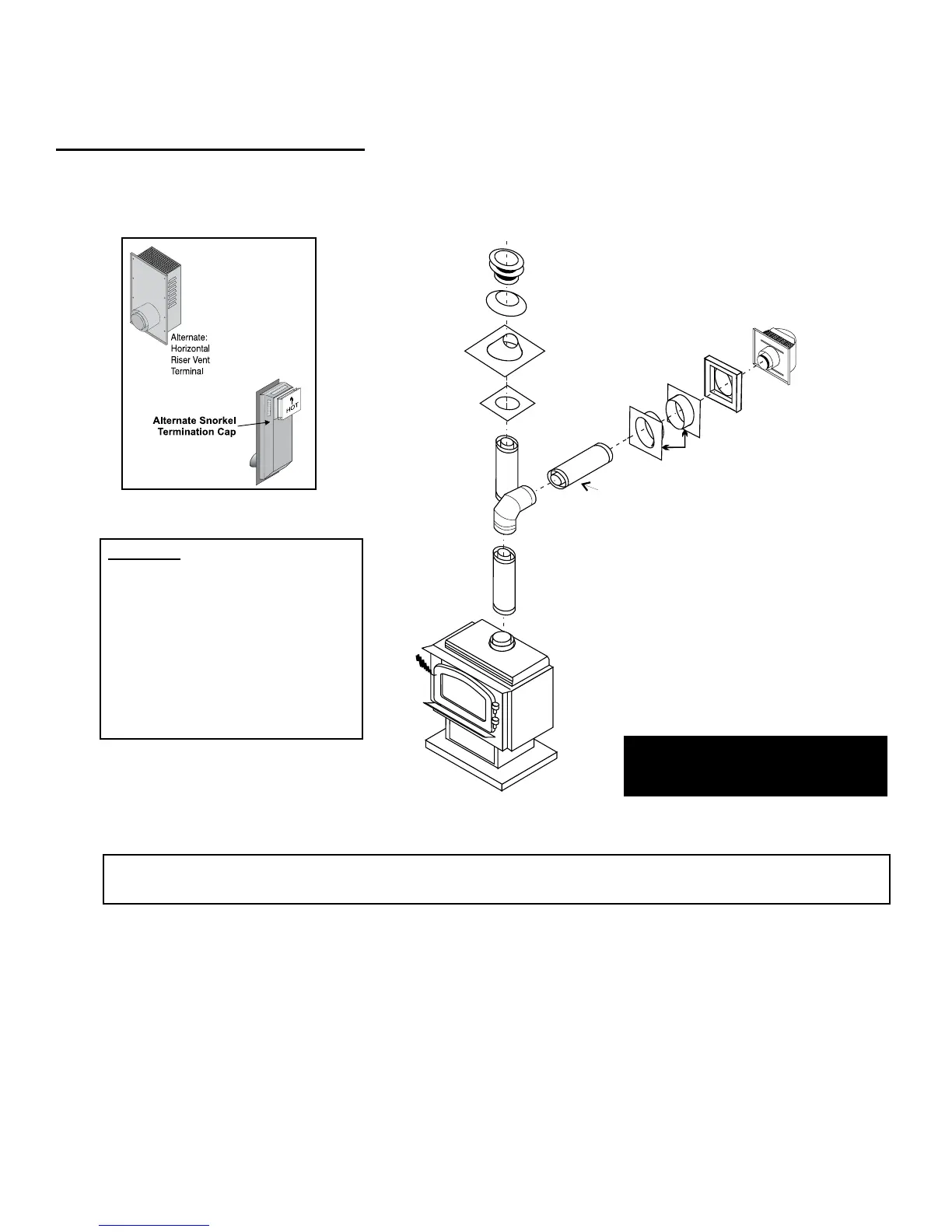

RIGID PIPE VENTING SYSTEMS
Horizontal or Vertical Terminations
Alternate
Horizontal
Termination
Caps
This product has been evaluated by Intertek for
use with Duravent Direct-Vent , Selkirk Direct-
Temp, Ameri Vent Direct venting and Security
Secure Vent systems.
WARNING:
Do not combine venting components from
different venting systems.
However use of the the AstroCap
TM
and FPI
Riser is acceptable with all systems.
When using Rigid Vent other than
Simpson Dura-Vent, 3 screws must be
used to secure rigid pipe to unit.
The FPI AstroCap
TM
and FPI Riser Vent terminal are certied for installations using FPI venting systems as well as Simpson Dura-Vent
®
Direct Vent, Ameri-
can Metal Products Ameri Vent Direct Vent, Security Secure Vent
®
, Selkirk Direct-Temp. AstroCap
TM
is a proprietary trademark of FPI Fireplace Products
International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.
