Regency C34 - Main Assembly Parts Identification; Main Assembly Components List

Regency
®
CLASSIC C34-10 Direct Vent Freestanding Gas Stove | 39
|
39
parts list

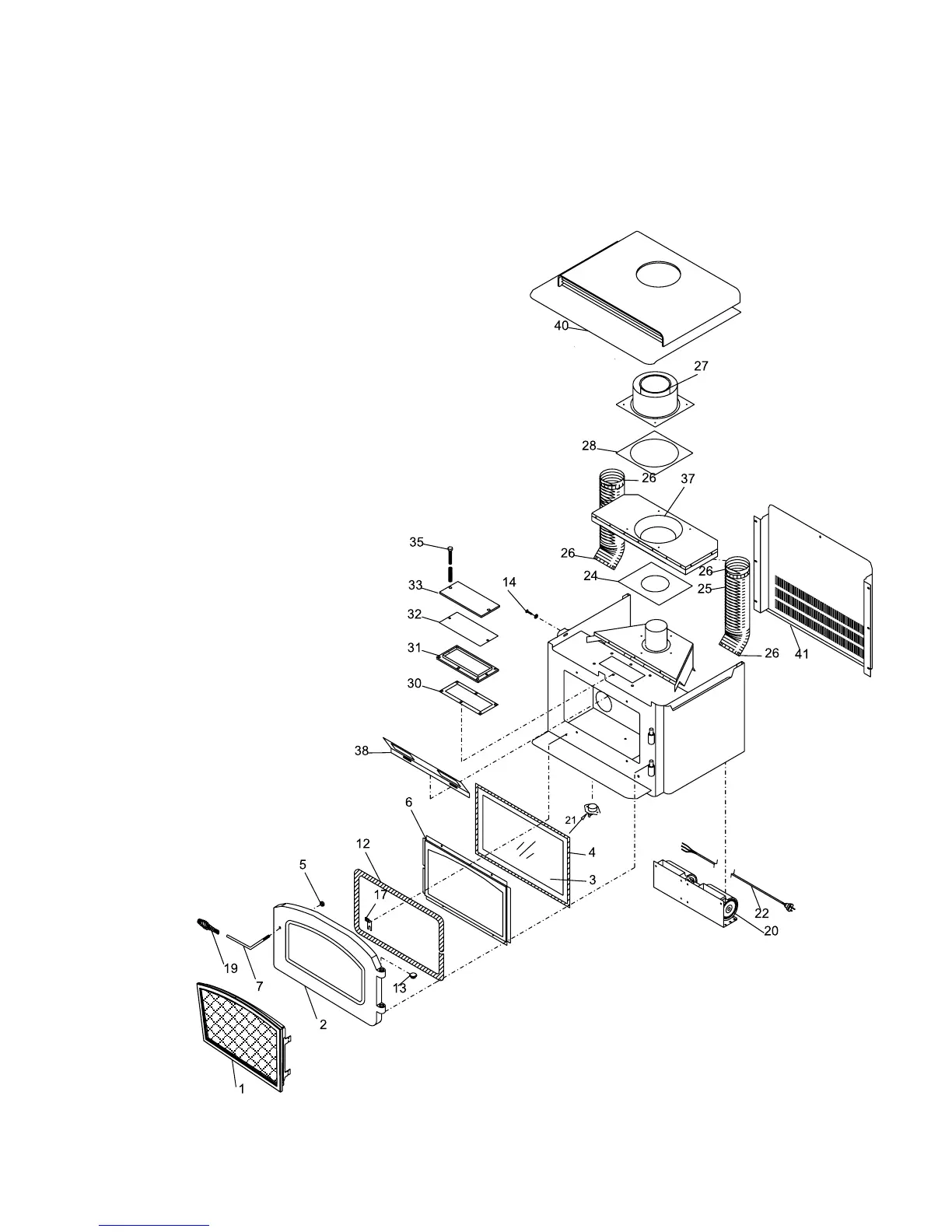

MAIN ASSEMBLY
Part # Description
1. 493-519 Safety Screen
2. 490-941 Small Door - Black
490-943 Small Door - Nickel Accent
3. 846-302 Small Glass
4. 936-240 Glass Gasket (1/8")
5. * Nut - 3/8 N/C Jam
6. 490-028 Glass Frame
7. 490-030 Door Handle
12. 936-233 Door Gasket
14. * Screw 10-24 x 3/4"
17. 471-031 Door Retainer Clip
19. 948-135 Spring Handle (Large)
20 493-917 Complete Fan Assembly (Optional)
910-157/P Blower Motor (120V)
21. 910-142 Fan Auto on/off Thermodisc
22. 910-813 Power Cord (120V)
24. * Gasket - Air Passage
25. * Flex Pipe - 3" ID
26. * Stainless Steel Hose Clamp
27. 936-197 Gasket - Flue Collar/Starter Collar
28. 936-194 Gasket - Starter Collar/Air Passage
30 W260260 Relief Frame Gasket
31. 942-117 Top Relief Plate Frame
32. W260280 Top Relief Plate Gasket
33. 290-021 Air Bafe Plate
35. * Capscrew 1/4 x 1-3/4" NC
37. * Upper Air Passage Assembly
38. 490-081 Flue Restrictor
40 490-520 Top Assembly
41. 490-042 Rear Panel
919-490 Manual
*Not available as a replacement part.
