maintenance
REMOVING VALVE
ASSEMBLY
1. Shut off gas and electrical supply.
2. If optional fan is installed, disconnect power
source to stove.
3. Remove access panel.
a) Front panel on pedestal model.
See Diagram 1.
b) Panel from bottom of leg shield.
See Diagram 2.
Note: Access panel only has to be loosened
to be taken out.
4. Remove valve cover plate by removing two (2)
screws.
5. Disconnect receiver wire.
6. Remove cover plate by removing 4 screws
(Pedestal option only).

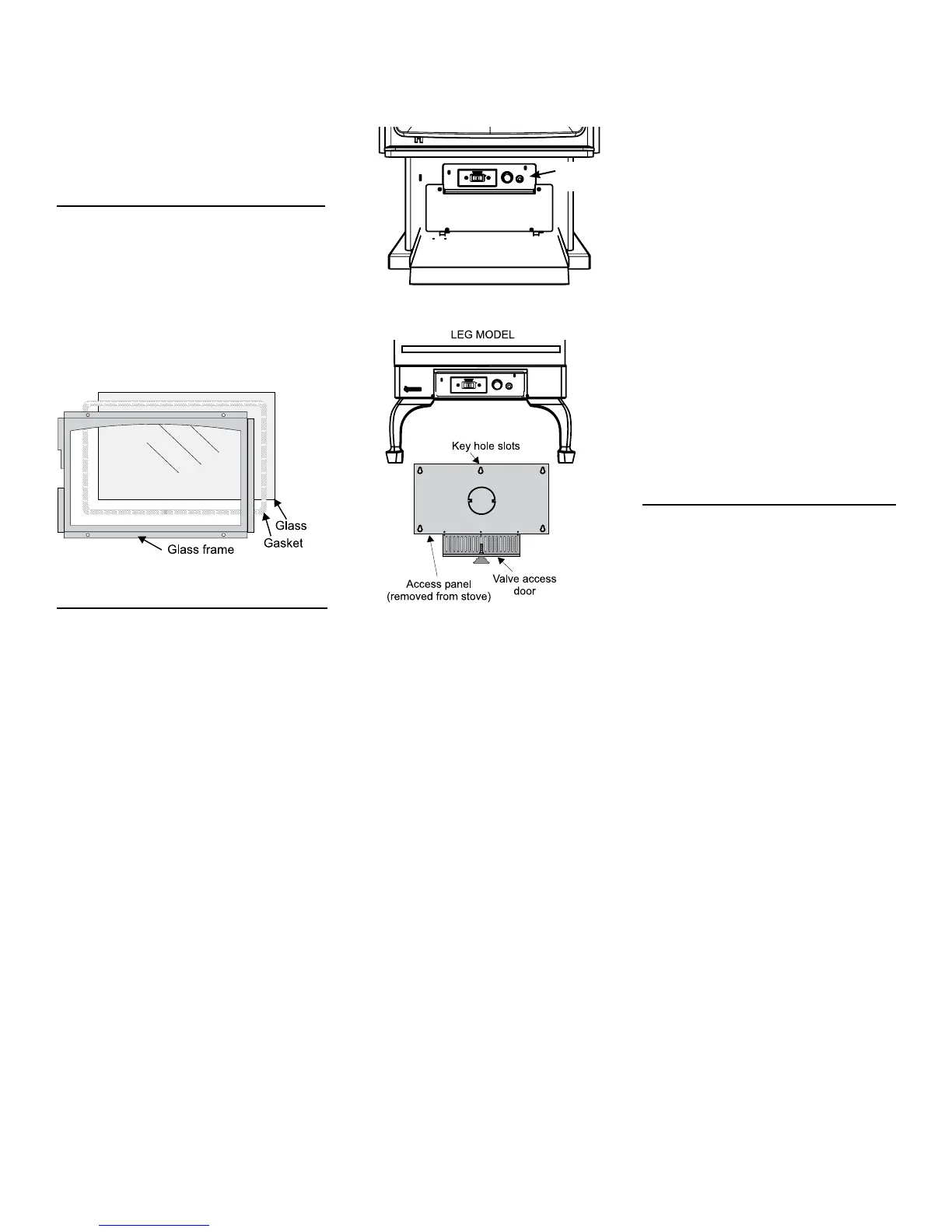

Diagram 2
Diagram 1
Access Panel
Cover Plate
Valve Cover
Plate
7. Disconnect gas line to stove.
8. Disconnect 3/8" NPT pipe from 90
o
elbow on
valve.
9. Disconnect the two (2) switch wires from valve.
10. Disconnect three (3) fan wire from DC sparker.
11. Remove orice.
12. Loosen four (4. phillips head M5 valve mounting
screws from underside of rebox. Drop valve
assembly down.
To remove valve from valve assembly,
continue.
13. Remove two (2) thermopile wires.
14. Remove thermocouple with a 9 mm (metric)
wrench.
15. Remove pilot nut with an 11 mm wrench.
16. Remove valve to orice nut with a 13/16"
wrench.
17. Remove inlet pipe with pipe wrench. Note
orientation of 90
o
elbow.
18. Remove two (2) phillips head M5 screws on
each side of the valve.
19. Remove valve and remove gas out 90
o
brass
tting. Note orientation of tting.
See diagram in "Optional Fan Installation"
section for more detail.
INSTALLING
VALVE ASSEMBLY
1. To install a new valve assembly, reverse
instructions for removing valve. See as-
sembly steps 1-10.
2. Check for leaks and manifold pressure. See
Gas Pressure Test instructions.
3. To reinstall valve, reverse instructions for
removing valve assembly, steps 11-17.
GLASS GASKET
If the front glass requires replacement use (Part
# 846-302).
GLASS
REPLACEMENT
Your CLASSIC stove is supplied with high tem-
perature, 5 mm Neoceram ceramic glass that
will withstand the highest heat that your unit will
produce. In the event that you break your glass by
impact, purchase your replacement glass from an
authorized Regency
®
dealer only.
