INSTALLATION

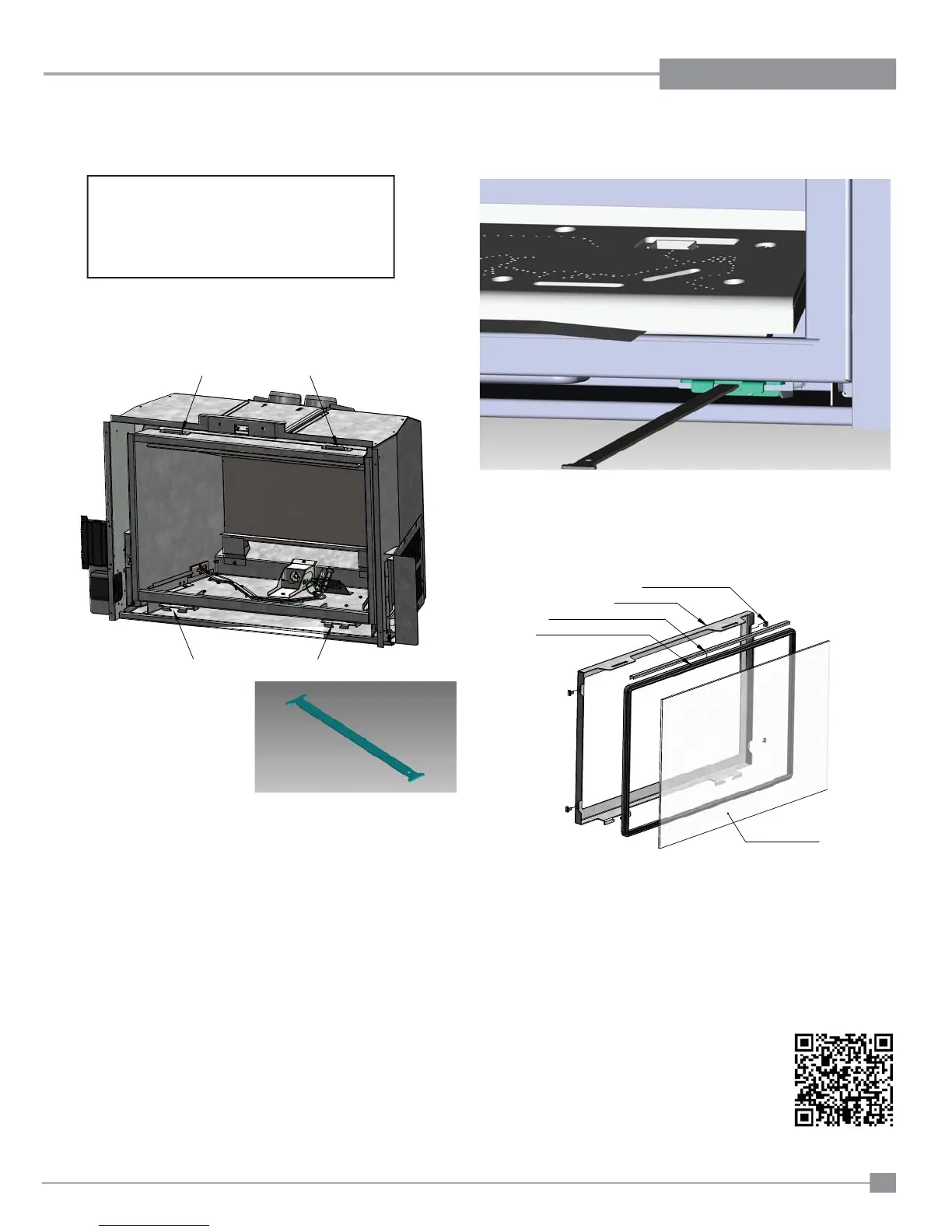

GLASS DOOR REMOVAL / INSTALLATION
Upper Door Hooks
Lower Door Latches
2) Pull forward until the lower door latch is disengaged from the door frame.
3) Push downward until the Lower Door Latch is below the Door Frame.
4) Release the lower door latch until it reaches its resting point.
5) Remove the door tool and repeat steps 1-5 on the other lower door latch.
6) Pull the bottom of the door towards you until the door is angled away from
the fi rebox by about 30°. Lift the door up and over the upper door hooks.
7) To install the glass door - reverse steps.
Door Com
onents
Window Glass
Window Glass Gasket
Door Frame
Window Clip (x4)
Glass Gasket Retainer
1) Insert the door tool into the lower door latch.
WARNING: Do not operate the appliance
with the glass panels removed, cracked or
broken. Replacement of the glass panels
should be done by a licensed or qualifi ed
service person.
Door Tool
Glass Door Cleaning & Removal
