L390E-2 / HZI390E-2 Direct Vent Gas Insert
39
INSTALLATION

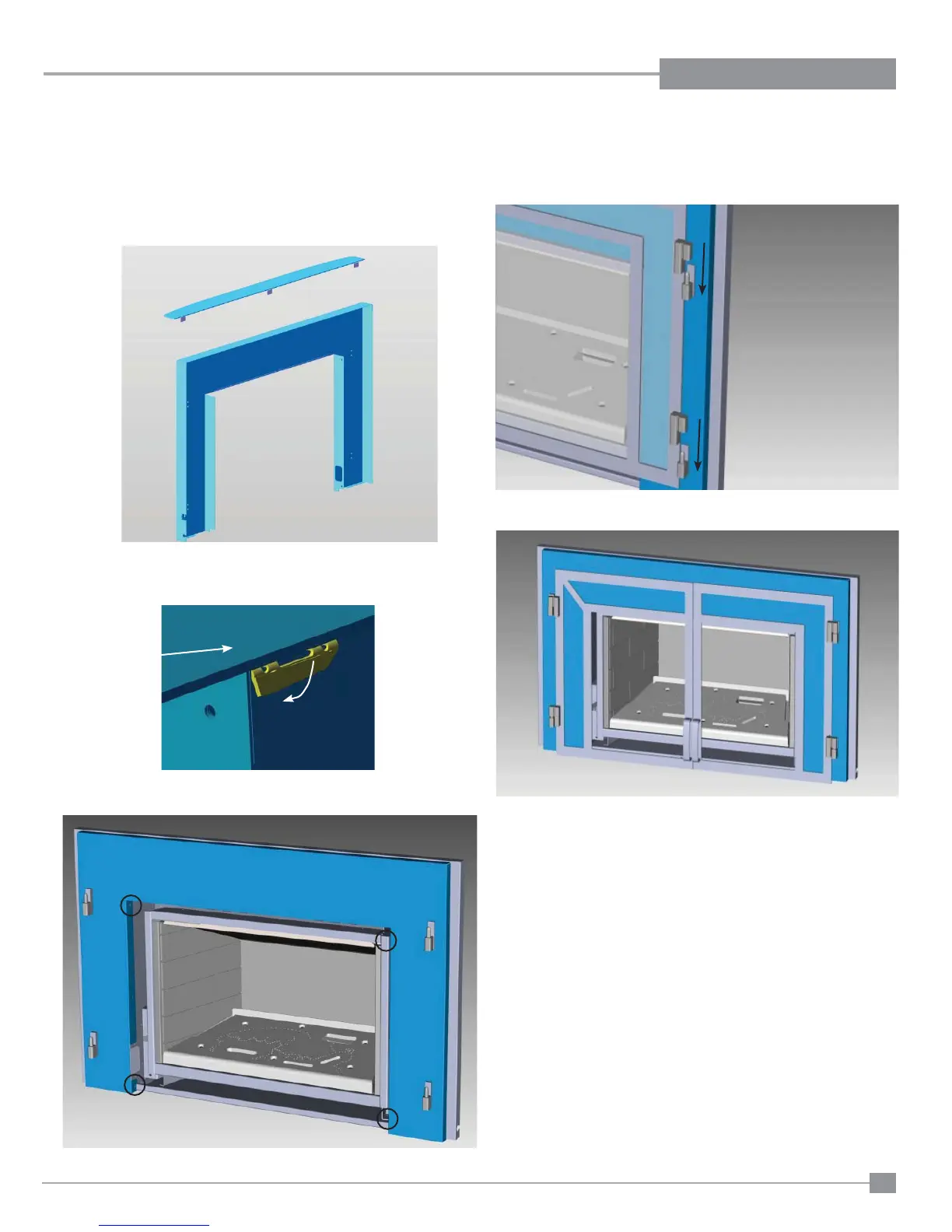

OPTIONAL FULL SCREEN DOOR INSTALLATION
3) Install the optional full screen to the unit by securing with 4 screws in
locations shown below.
4) Install the optional full screen doors onto the frame.
Final Install
2) Bend all 3 tabs 90º to secure the defl ector to the top of the frame
. The tabs should be fl ush with the underside of the top lip of the back plate.
Top of backing
plate
Note: A mantel defl ector may be installed to reduce the minimum mantel height.
Refer to minimum clearances in the installation manual.
If not installing the mantel defl ector - proceed to step 3.
1) Line up the mantel defl ector (tabs to the back) with the full screen frame
as shown below.
To Next Page
