L390E-2 / HZI390E-2 Direct Vent Gas Insert
INSTALLATION
OVERSIZE FACEPLATE INSTALLATION
Note: Faceplate may be installed after the unit is in it's fi nal position.

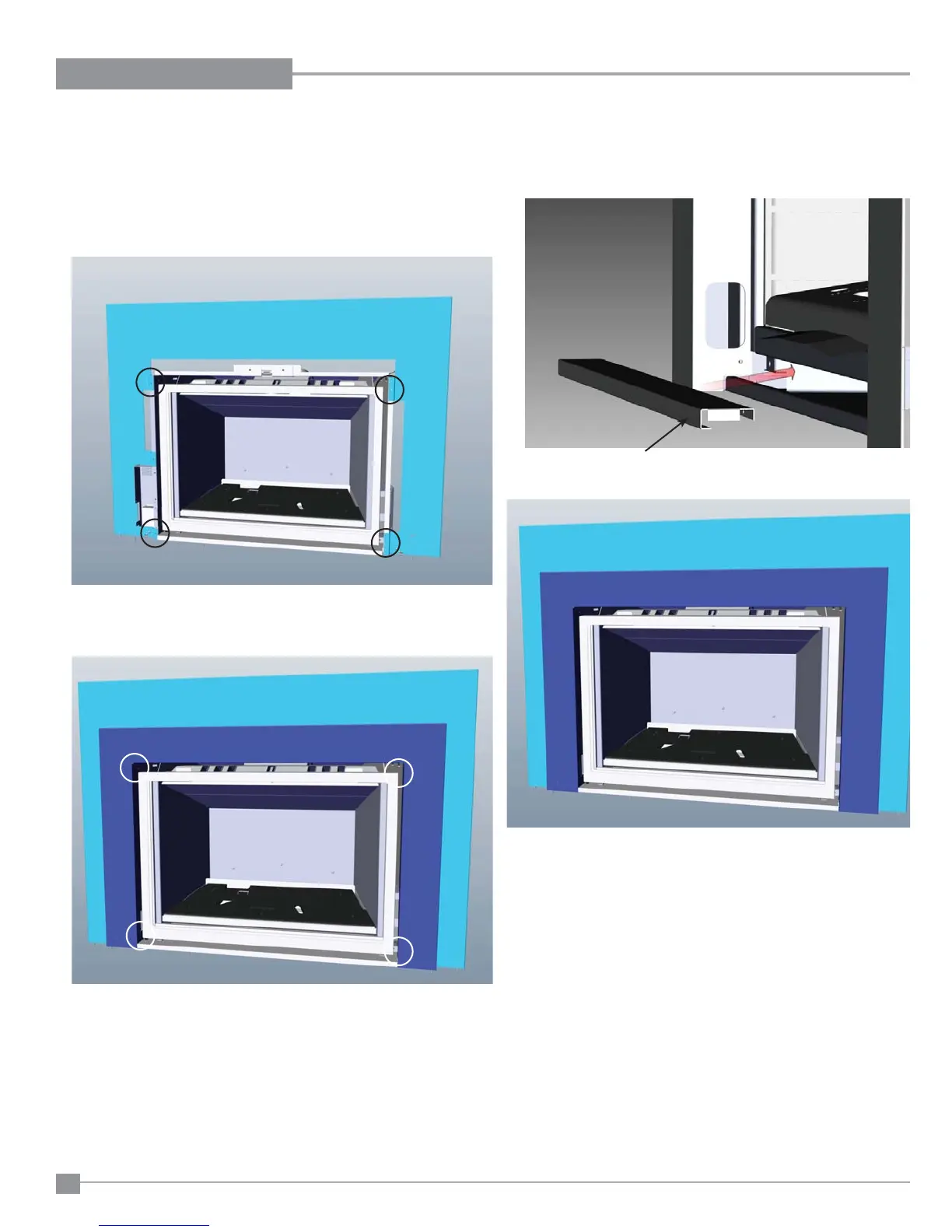

1. Install Low Profi le faceplate backing plate and secure to the unit with 4
screws in locations shown below.
2. Install front faceplate and secure to the unit with 4 screws in locations
shown below.
3. Install lower trim piece oriented as shown below.
Trim
Final Install
