34
L390E-2 / HZI390E-2 Direct Vent Gas Insert
INSTALLATION

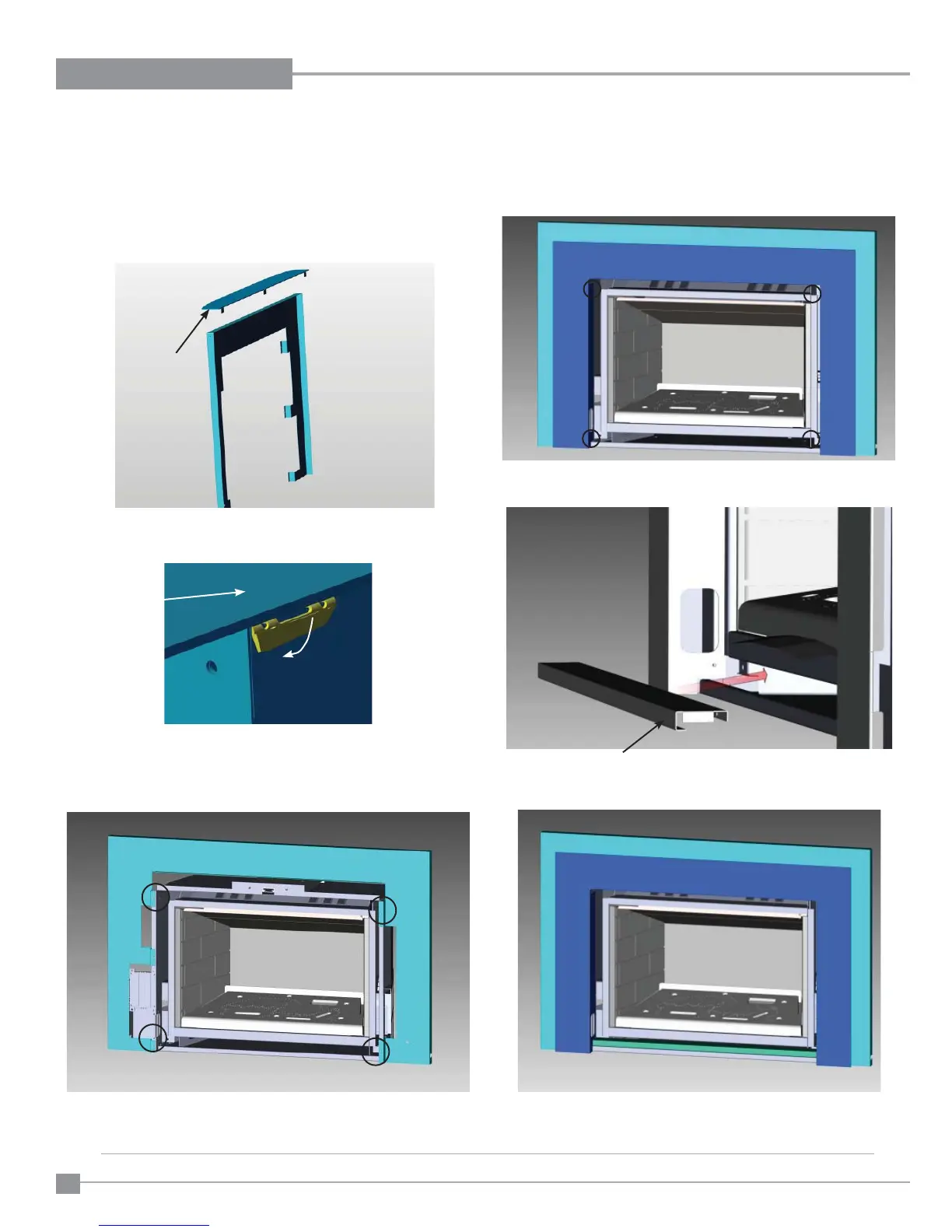

3 SIDED LOW PROFILE FACEPLATE INSTALLATION
Note: Faceplate may be installed after the unit is in it's fi nal position.
3) Install Low Profi le faceplate backing plate and secure to the unit with 4
screws in locations shown below.
Note: A mantel defl ector may be installed to reduce the minimum mantel height.
Refer to minimum clearances in the installation manual.
If not installing the mantel defl ector - proceed to step 3.
1) Line up the mantel defl ector (tabs to the back) with the Low Profi le back-
ing plate.
4) Install front faceplate and secure to the unit with 4 screws in locations
shown below.
5) Install lower trim piece oriented as shown below.
Trim
Final Install
2) Bend all 3 tabs 90º to secure the defl ector to the top of the backing plate.
The tabs should be fl ush with the underside of the top lip of the back plate.
top of backing
plate
mantel defl ector
To Next Page
