Regency P33-LP10 - Vertical Terminations; Rigid Pipe Venting Arrangements

Regency
®
P33-10 Zero Clearance Direct Vent Gas Fireplace | 21
|
21
installation
• Vent must be supported at offsets.
• Firestops are required at each oor level and whenever passing through a wall.
• Maintain clearances to combustibles.
.
Note: Must use optional rigid pipe adapter when using rigid vent systems (Part # 510-994).
RIGID PIPE VENTING ARRANGEMENTS
Vertical Terminations
(Propane & Natural Gas)

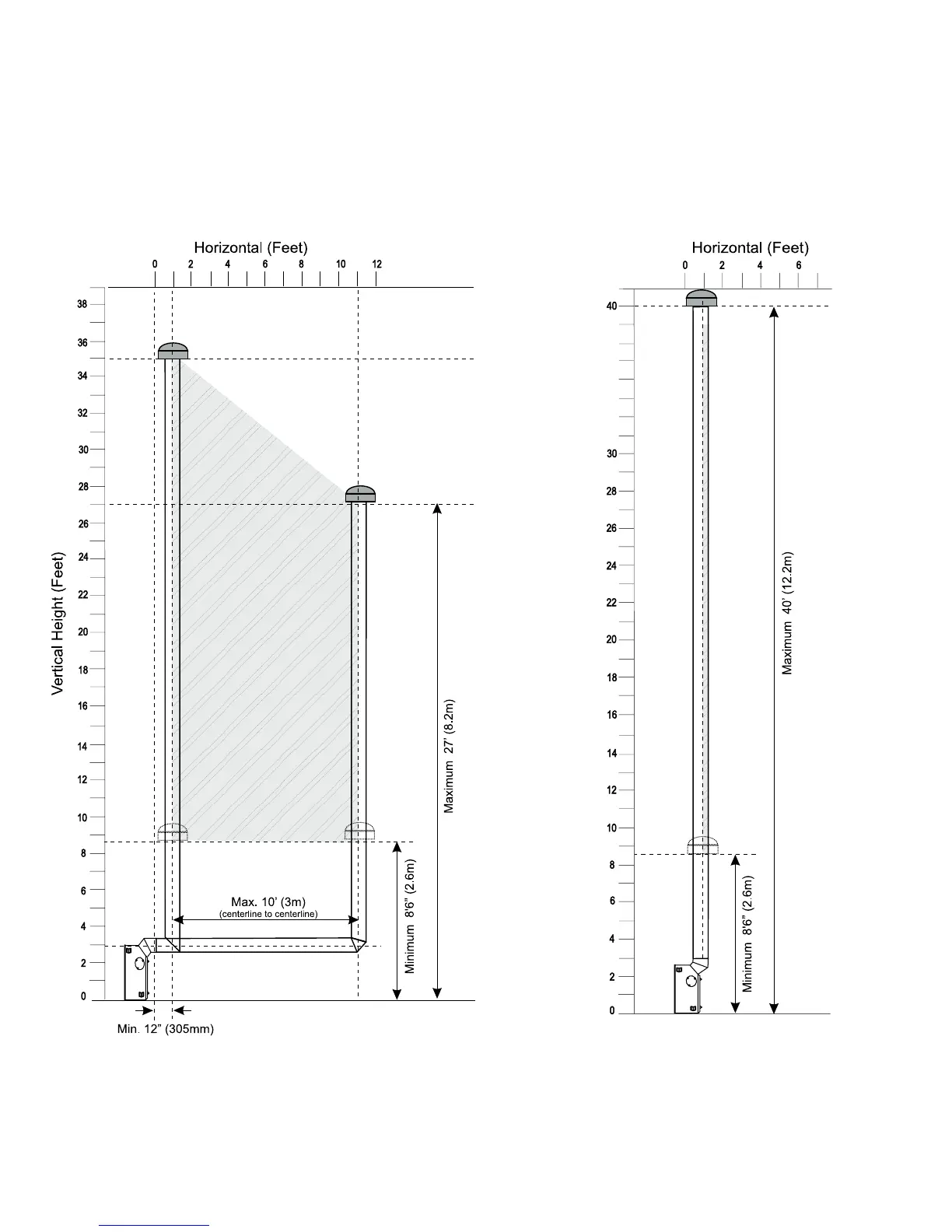

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using one 90
o
elbow, with rigid pipe
vent systems for Propane and Natural Gas.
