P33-10 Zero Clearance Direct Vent Gas Fireplace
|
38
installation
VIGNETTE FACEPLATE AND SAFETY SCREEN INSTALL
1
12.03.14
919-468
VIGNETTE FACEPLATE AND SAFETY SCREEN INSTALL

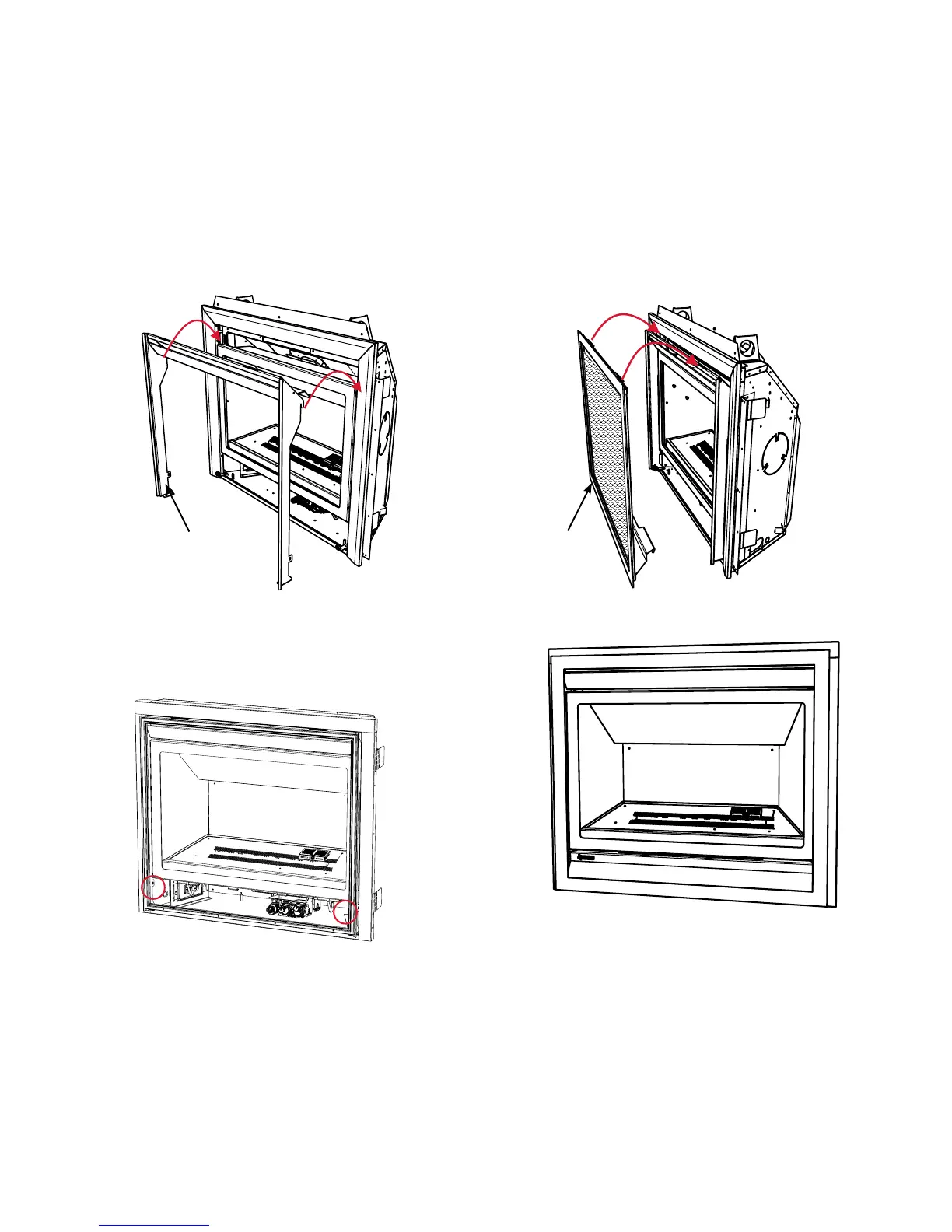

1. Hook tabs of Vignette frame onto unit in locations shown
below.
2. Secure Vignette frame using 2 screws in locations shown below.
3. Install safety screen assembly by inserting tabs on assembly
into slots on installed Vignette frame (see below). Screen
assembly is secured at bottom with magnets.
Vignette Frame
Final Install
Screen Assembly
4. Reverse Steps to remove.
P33/P33E
