Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION

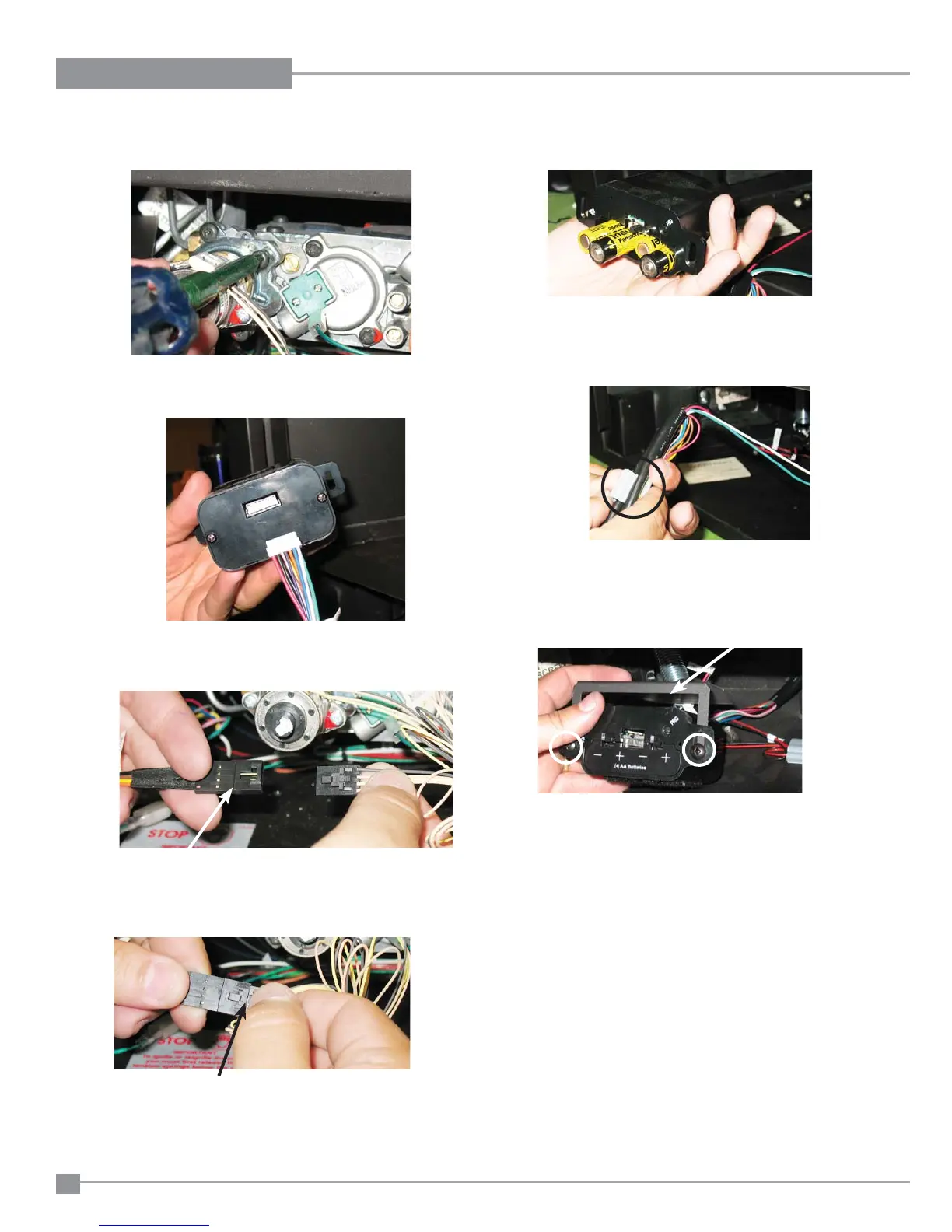

10) Install the stepper motor in the same location the hi/lo knob was
removed from - with 2 screws as shown below.
11) Remove the receiver if installed - unplug the motor wire from the
back of the receiver - as shown below.
17) Install the heat shield to the receiver with two screws and attach
to the fl oor of the unit with a velcro pad - also peel off paper on
back side of wire clip and place wires conveniently in appliance.
16) Bundle all wires together and clip with supplied wire clip - as
shown below.
18) Match the remote control to the receiver - see remote control
instructions.
19) Reverse steps 2 and 1.
20) Check to ensure there are no gas leaks.
Heat shield
15) Install 4-AA batteries into the receiver.
13) Plug the stepper motor into the ‘motor wire as shown below.
Motor wire
14) To unattach these wires - un-clip from the wires on the stepper
motor side as shown below.
Press down this tab
12) Reattach wires from step 5.
