Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION

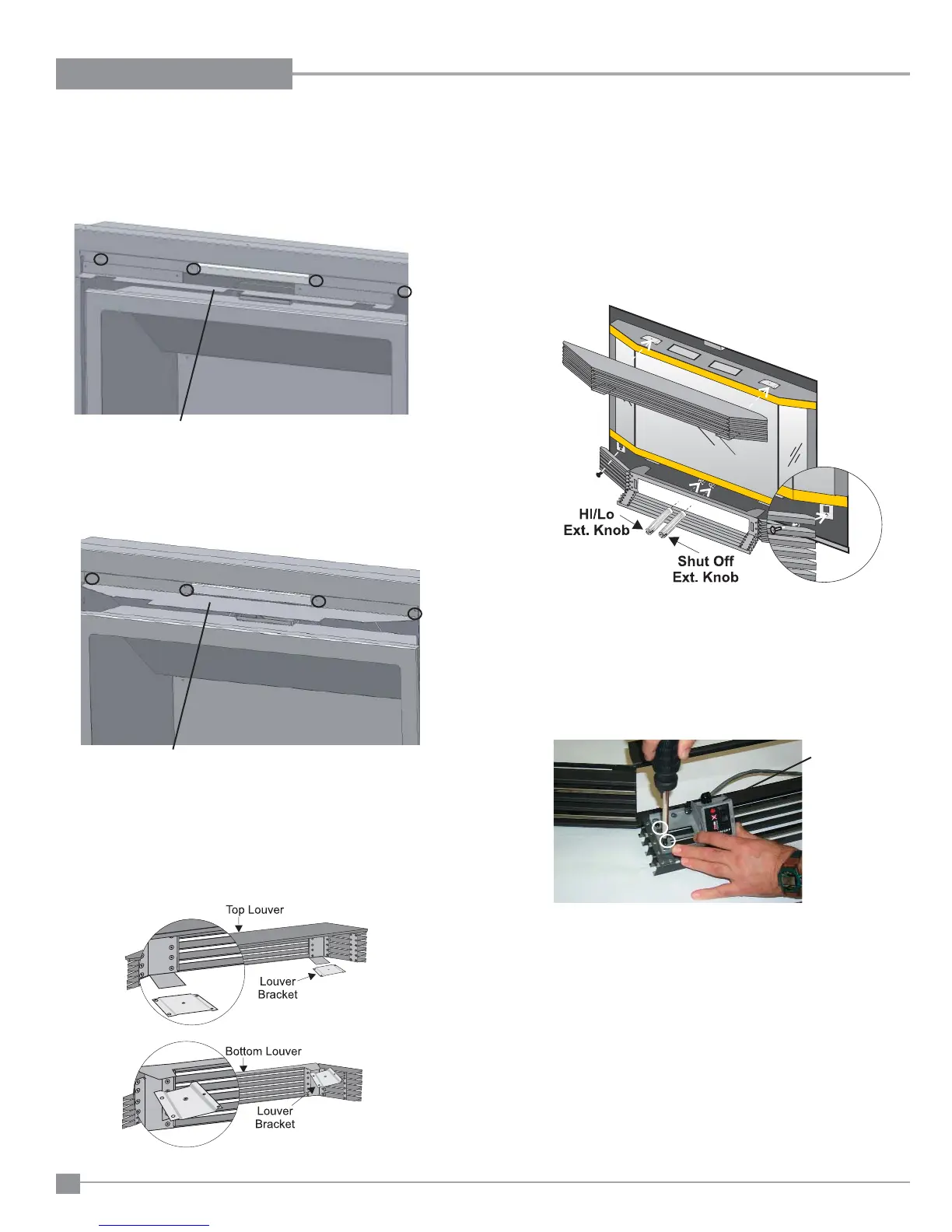

6) Open the bottom louver. Pull the Burner ON/OFF control box from
inside the bottom of the fi replace and position the slots in the bracket
over the 2 screws on the left side of the bottom louver. Push down
to lock into place. Tighten the screws.
Burner ON/OFF
control box
2) Install the bay louver top heat shield and secure with 4 screws.
Flush Louver Top
Heat Shield
3) Install top louver by sliding the two bracket clips into the brackets
located on top of the bay door. See below. The fi tted louver leaves
a small gap between faceplate bottom and louver top.
Bay Louver Top
Heat Shield
4) Install bottom louver by sliding the two bracket clips into the brackets
located underneath the bay door. Secure with 1 screw into each
Bottom Louver Mounting Bracket as per diagram below. Use the
bottom hole in the bracket.
5) Slide the valve extension knobs onto the valve knobs. Match the
correct ext. knob with the valve knob.
BAY LOUVERS
1) Remove fl ush louver top heat shield by removing the 4 screws.
To Next Page
