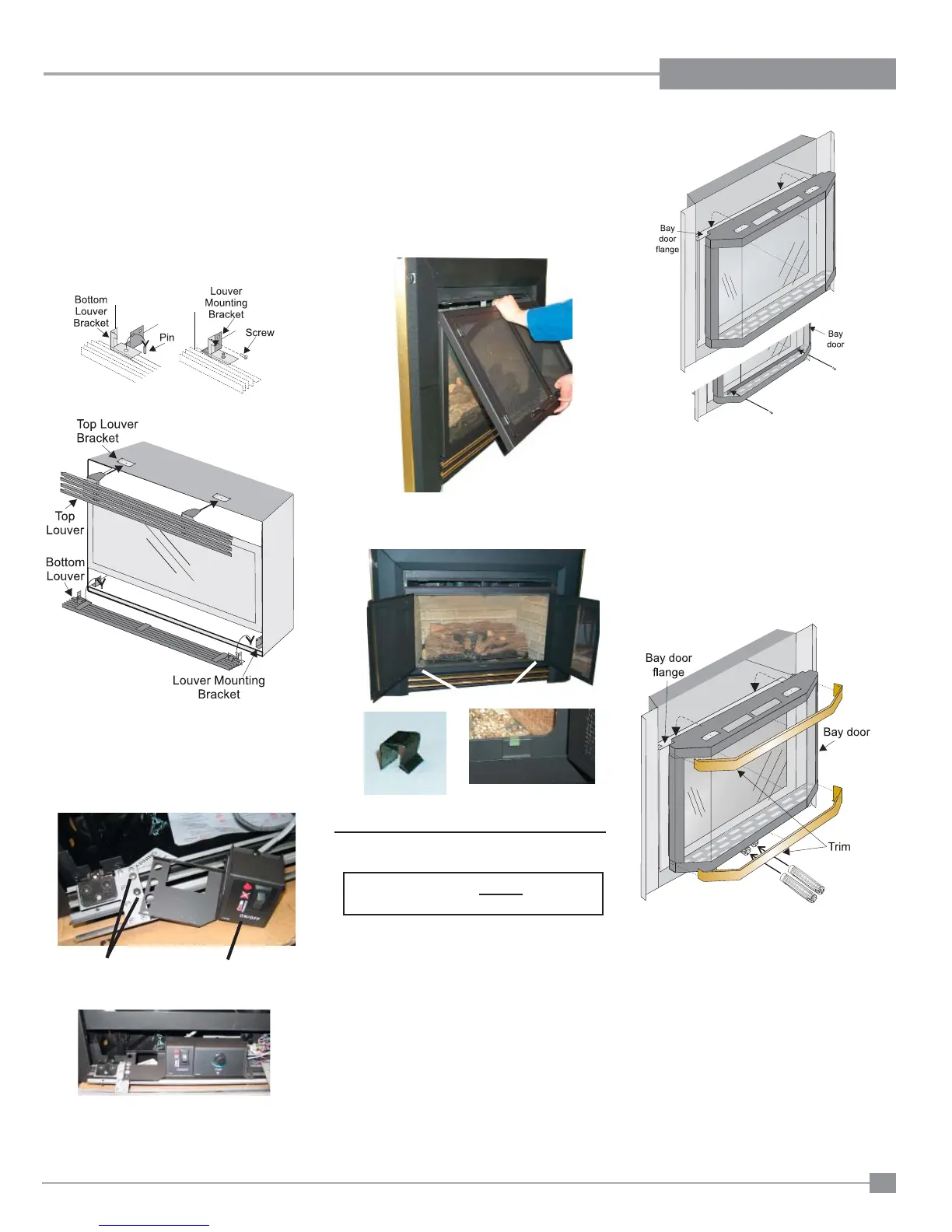

Regency P33E-NG4 - Flush Louvers; Double Screen Door; Optional Bay Door; Optional Bay Trim

Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace
43
INSTALLATION
OPTIONAL BAY DOOR
The Bay louvers MUST be used
with the Bay glass option.
The optional Bay door is an overlay on the fl ush
front. The standard fl ush door and glass must
remain on the unit.
1) Hook the top of the bay door over the fl ush
door fl ange and swing the bottom against the
bottom fl ange of the fl ush door.
2) Secure to the fl ush door bottom bracket with 2
screws provided.
Diagram 1 Diagram 2
FLUSH LOUVERS
1) Install the top louver by sliding the two bracket
clips into the brackets located underneath the
top of the fi rebox.
2) Install the bottom louver by folding the louver
down and then sliding the Bottom Louver bracket
down onto the 2 pins on the base of the unit
(Diagram1). Secure with 1 screw (Diagram 2).
Note: Top and
bottom louvers
are different.
3) Open the bottom louver. Pull the Burner ON/
OFF control box from inside the bottom of the
fi replace and position the slots in the bracket
over the 2 screws on the left side of the bottom
louver. Push down to lock into place. Tighten
the screws.
Screws on
louver bracket
Burner ON/OFF control box attached to
bottom fl ush louver.
Burner ON/OFF
control box
Note: If any maintenance etc. must be done in
the fi rebox, fi rst remove the Bay louvers
and door.
OPTIONAL BAY TRIM
Attach the 4 supplied magnets, each to the back of
the top and bottom trim pieces (space out evenly)
and attach trim to the top and bottom of Bay door.
DOUBLE SCREEN DOOR
1) Pull out the top louver.
2) Center the screen door and hook over the fl ush
door.
3) Open the screen door(s) and secure the screen
door to the fl ush door front with 2 clips on the
bottom left and right side.
Clip locations
Clip installed on right side.
