16
FPI P36-4 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION

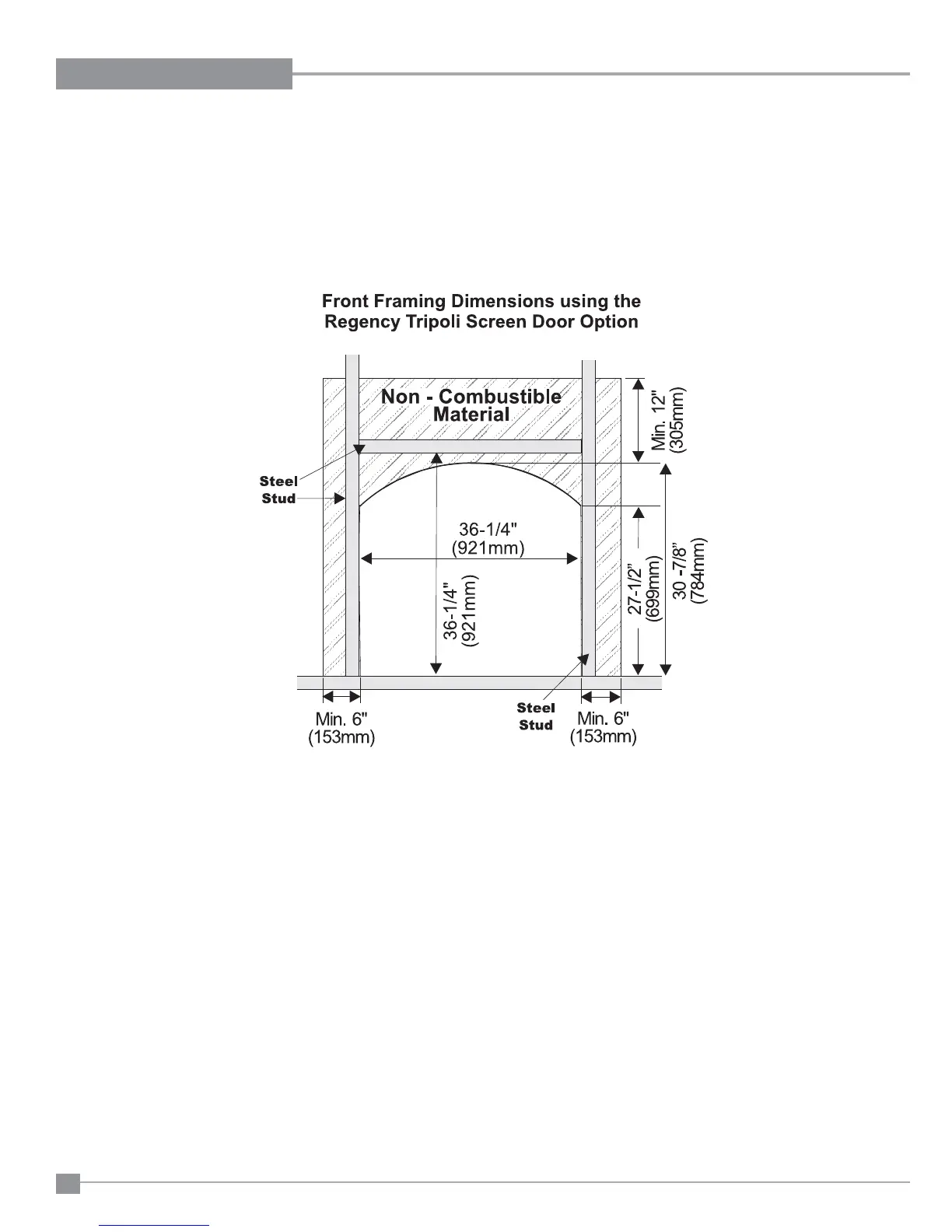

When installing the optional Tripoli Arch Door, a non-combustible material 12" (305mm) above the unit and 6" (153mm) on each side must be used. See
diagram 2. For complete framing dimensions - see page 57 in this manual.
The Tripoli Arch Door also requires steel stud framing above and on each side of the unit, see diagram 2.
TRIPOLI ARCH DOOR FRAMING NOTE
