FPI P36-4 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION

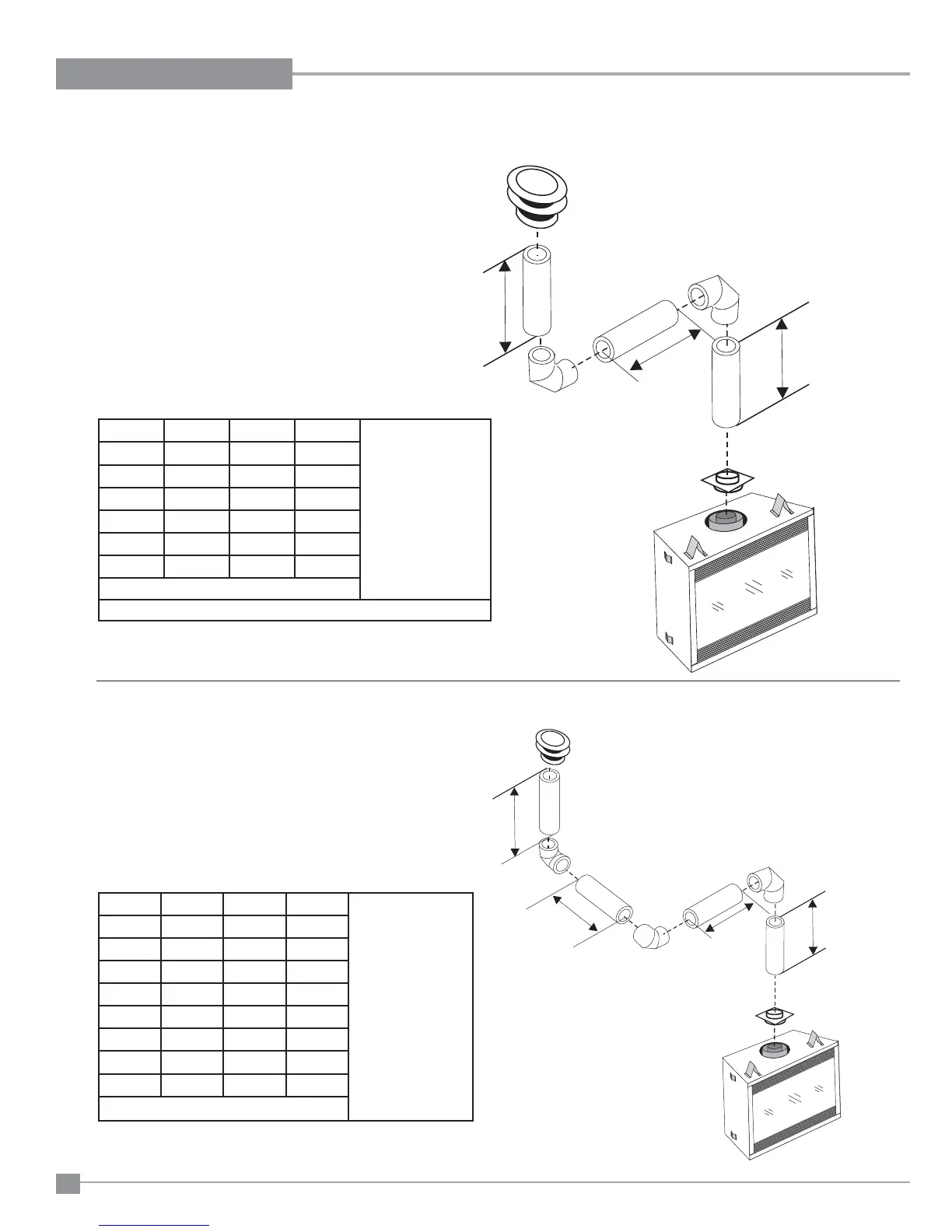

Vertical Venting with Two (2) 90
o
Elbows
Vertical Venting with Three (3) 90
o
Elbows
One 90
o
elbow = Two 45
o
elbows.
V1
V
H
V
H1
H
V1
One 90
o
elbow = Two 45
o
elbows.
Option V H V + V1
With these options,
max. total pipe length
is 30 feet with min.
of 6 feet total vertical
and max. 8 feet total
horizontal.
Please note min. 1
foot between 90
o
elbows is required.
A) 0' Min. 2' Max. 1' Min.
B) 1' Min. 4' Max. 2' Min.
C) 2' Min. 5' Max. 3' Min.
D) 3' Min. 6' Max. 4' Min.
E) 4' Min. 7' Max. 5' Min.
F) 5' Min. 8' Max. 6' Min.
Lengths do not include elbow indicated
For additional vertical venting with 2 x 90
o
elbows, refer to next page.
Option V H + H1 V + V1
With these options,
max. total pipe length
is 30 feet with min. of
10 feet total vertical
and max. 8 feet total
horizontal.
Please note min. 1
foot between 90
o
elbows is required.
A) 0' Min. 2' Max. 2' Min.
B) 1' Min. 2' Max 3' Min.
C) 2' Min. 3' Max 4' Min.
D) 3' Min. 4' Max 6' Min.
E) 4' Min. 5' Max 7' Min.
F) 5' Min. 6' Max 8' Min.
G) 6' Min. 7' Max 9' Min.
H) 7' Min. 8' Max 10' Min.
Lengths do not include elbow indicated
