FPI P36-4 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
5th Grate Tab
Rear Bracket
Front Brackets

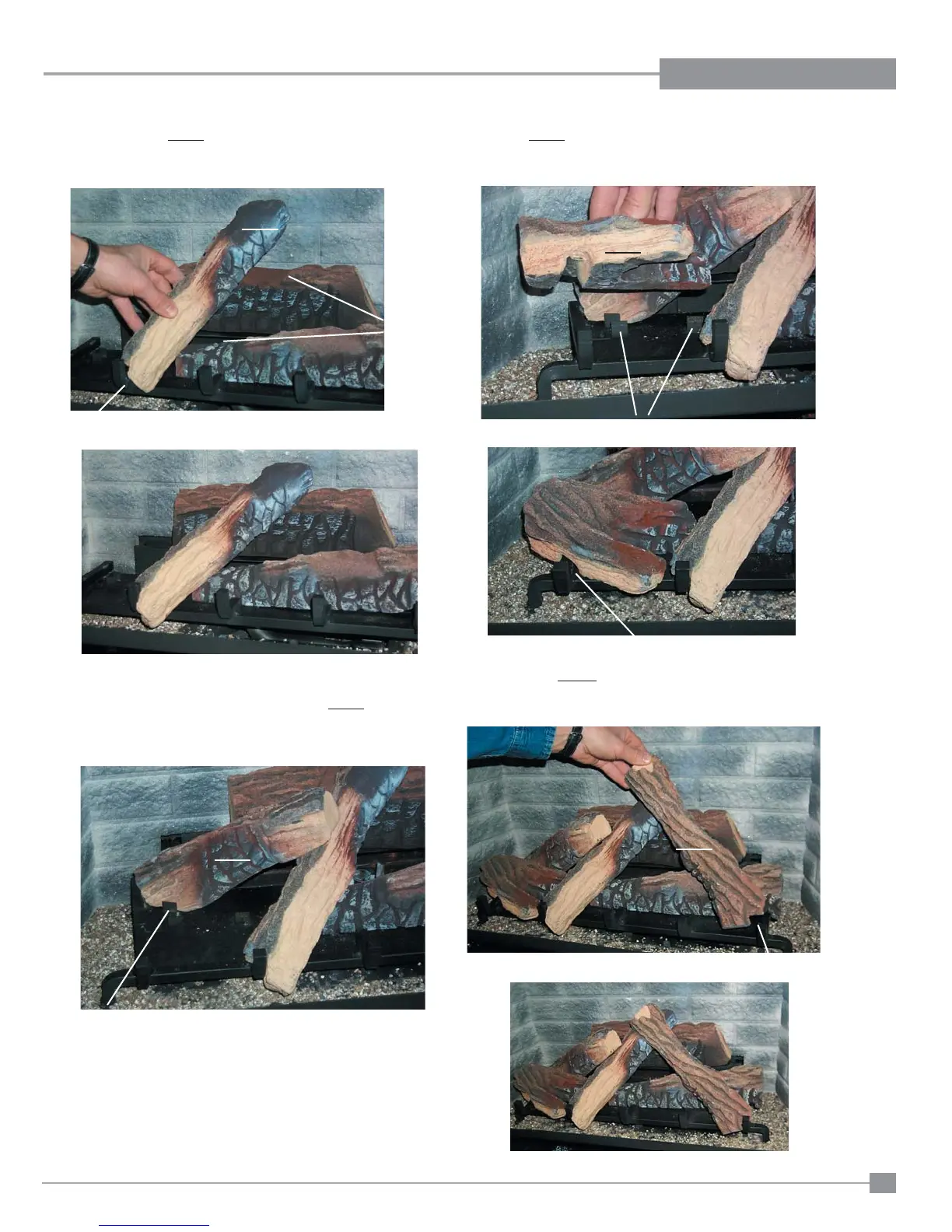

6) Place the bottom left front edge of Log 02-55 against the
rear bracket on the burner tray and rest the log on the
cutout on Log 02-53.
7) Sit Log 02-50 on the front left side of the burner. Push the
back of the log against the 2 front brackets with the notch
on the bottom of the log fi tting into the fi rst grate tab.
Notch
02-55
02-50
02-54
5) Position Log 02-53 across the cutouts in Logs 02-49 and
02-51 with the notch on the left side of the log fi tting into
the 2nd grate tab.
Cutouts
2nd Grate Tab
02-53
02-49
02-51
02-49
02-51
02-53
02-49
02-51
02-53
02-55
02-53
02-50
02-55
02-53
02-50
02-55
02-53
02-49
02-51
02-53
02-51
02-54
8) Position Log 02-54 across the cutouts in Logs 02-51 and
02-53. The notch in the bottom right end fi tting against the
5th grate tab.
