REGLOPLAS 90smart - Block Diagrams; 90 smart Block Diagram

V 11/2014
Temperature Control Unit 90smart/150smart Maintenance  25

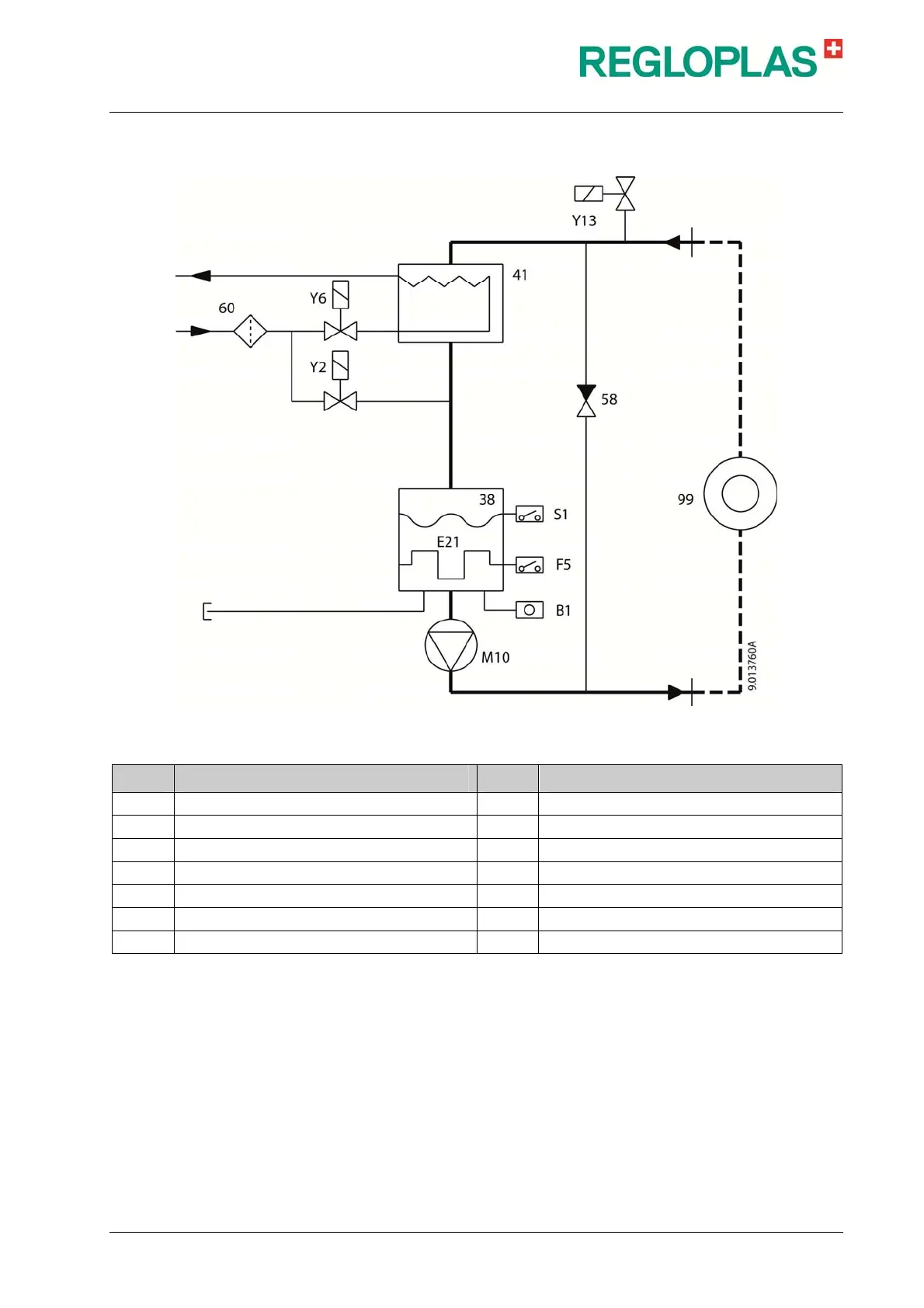

Block diagram 90smart
Block diagram 90smart
Item Designation Item Designation
38 Vessel, reservoir, tank F5 Safety thermostat
41 Cooler M10 Pump
58 Bypass S1 Level control
60 Filter - cooling circuit Y2 Solenoid valve - auto. water refill
99 Consumer Y6 Solenoid valve - cooling
B1 Temperature probe - internal Y13 Solenoid valve - suction (optional)
E21 Heating
