REGLOPLAS 90smart - Performance Graphs; Cooling Capacity 90 smart Graph; Cooling Capacity 150 smart Graph

V 11/2014
28  Maintenance Temperature Control Unit 90smart/150smart

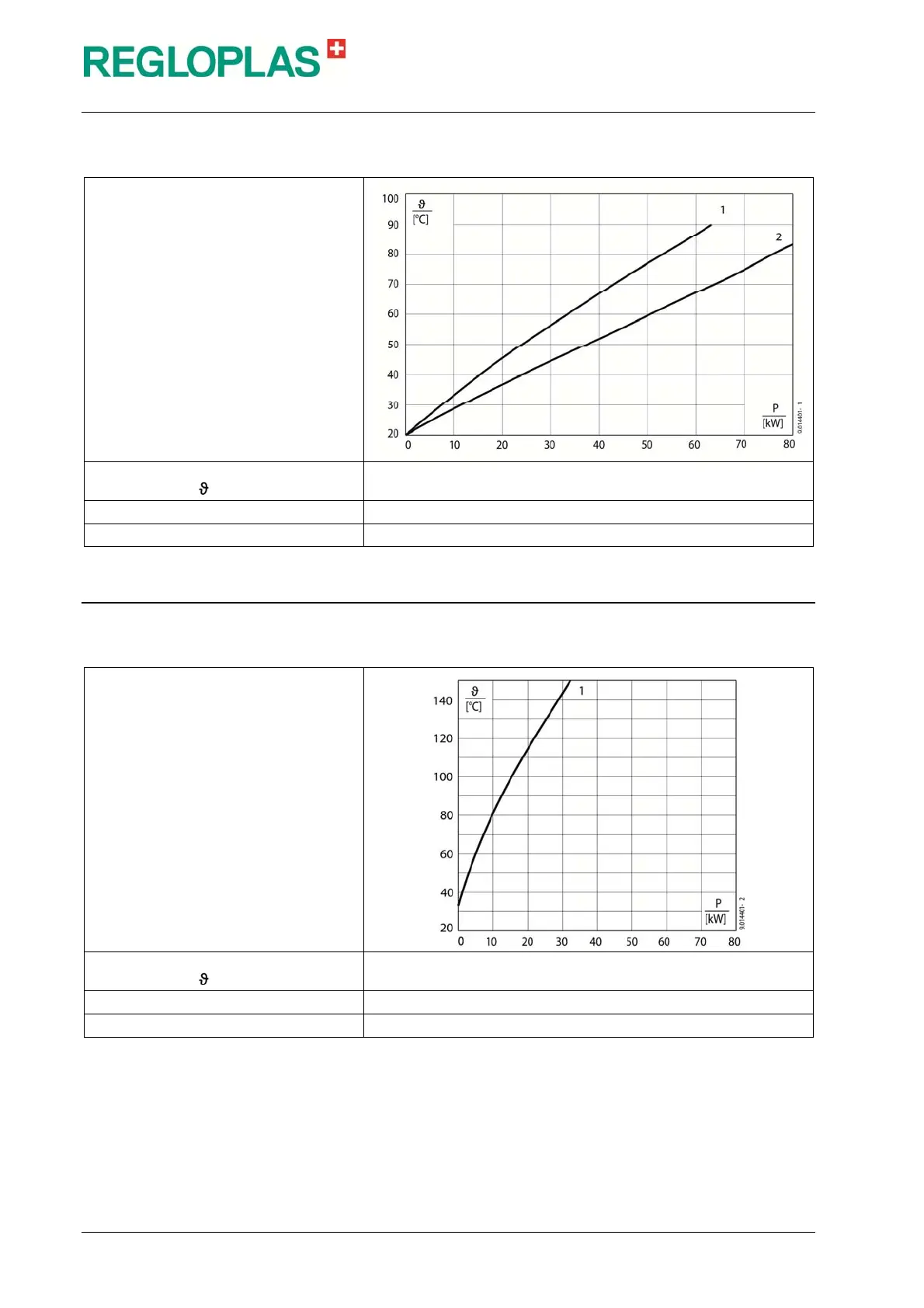

Graph (Cooling capacity 90smart)
1 - Cooling curve 90smart (1K)
2 - Cooling curve 90smart (2K)
Cooling capacity (P) as a function of out-
let temperature ( )
Cooling water temperature 20 °C
Flow rate 20 l/min
Graph (Cooling capacity 150smart)
1 - Cooling curve 150smart (Oil)
Cooling capacity (P) as a function of out-
let temperature ( )
Cooling water temperature 20 °C
Flow rate 10 l/min
