7

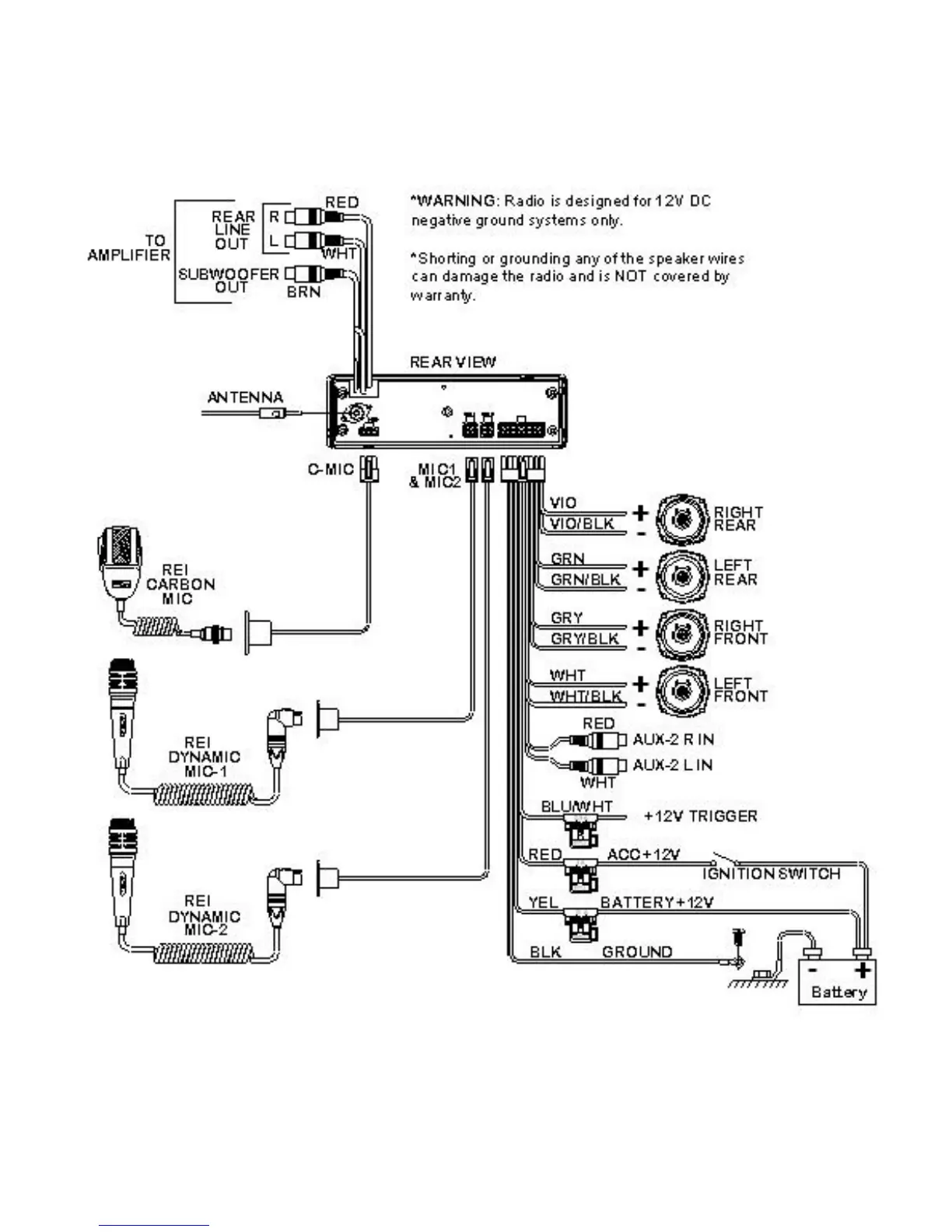

RADIO CONNECTIONS
Follow this easy wiring diagram when installing. Be sure to disconnect the battery
negative terminal before beginning.
