REQUIRED RADIO DIMENSIONS
Verify the radio will fit by following the suggested dimensions below.
RADIO INSTALLATION

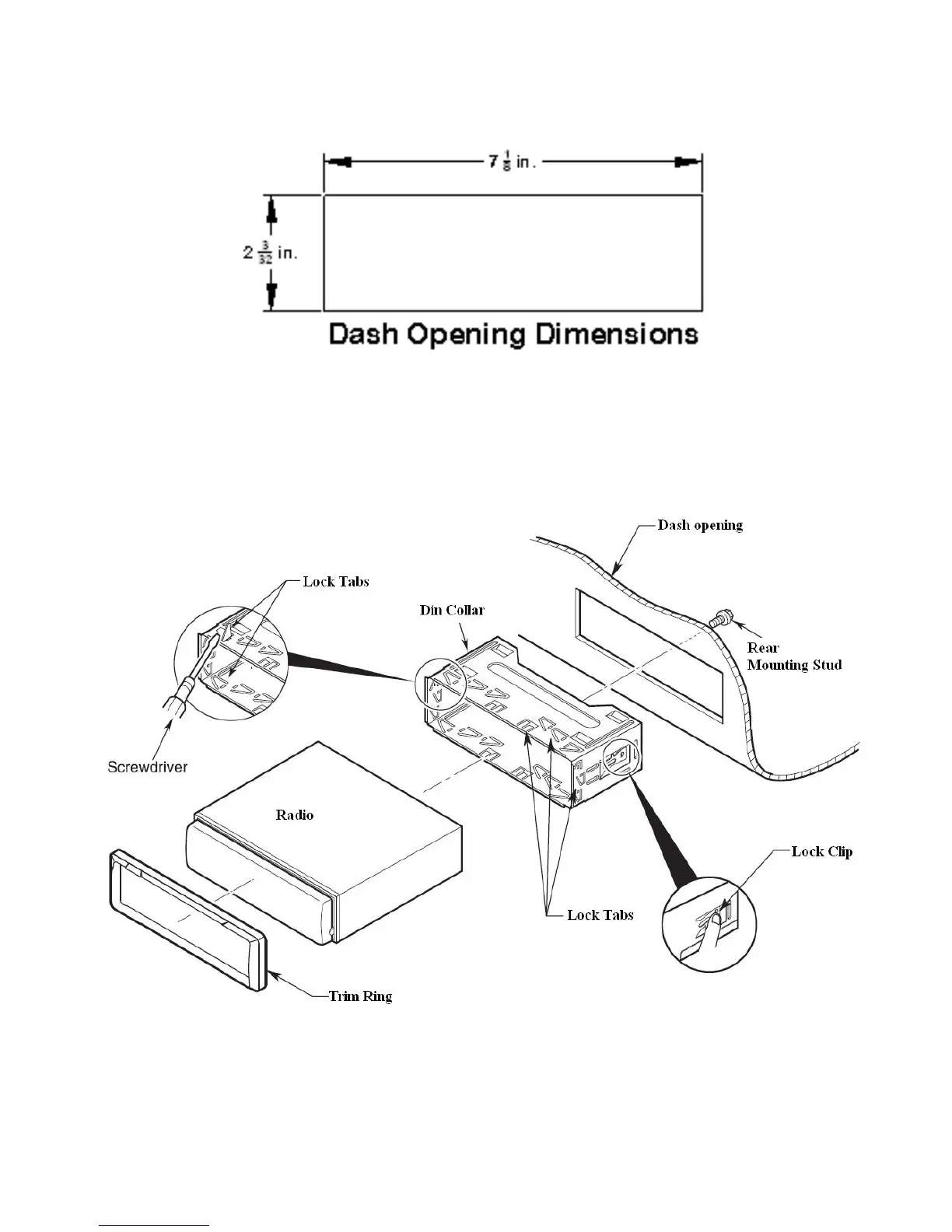

1. Verify lock Clips on the DIN collar are pressed inward. Place the collar into
the dash opening. Bend the tabs outward as shown on the drawing below to secure
into place in the Dash Opening.
2. Route all cable through the DIN collar and make all the necessary rear
connections with the radio. Verify clearance; then gently insert the radio into the DIN
Collar until both sides are locked. Secure rear mounting stud for additional support.
