MACH-Air™ VAV Controller
 2002 Reliable Controls™ Corporation
Workstation Connection
Workstation Connection
Peer
The MACH-Air™ VAV controller is designed to be
programmed using a workstation running the RC-Studio™
software. The workstation must be connected to a MACH1™,
MACH2™,or MACH-Global™ controller, or ETHER-Net™
portal that resides on the same system as the MACH-Air™
VAV controller.
No EIA-232 port is available on
the MACH-Air™ VAV controller.

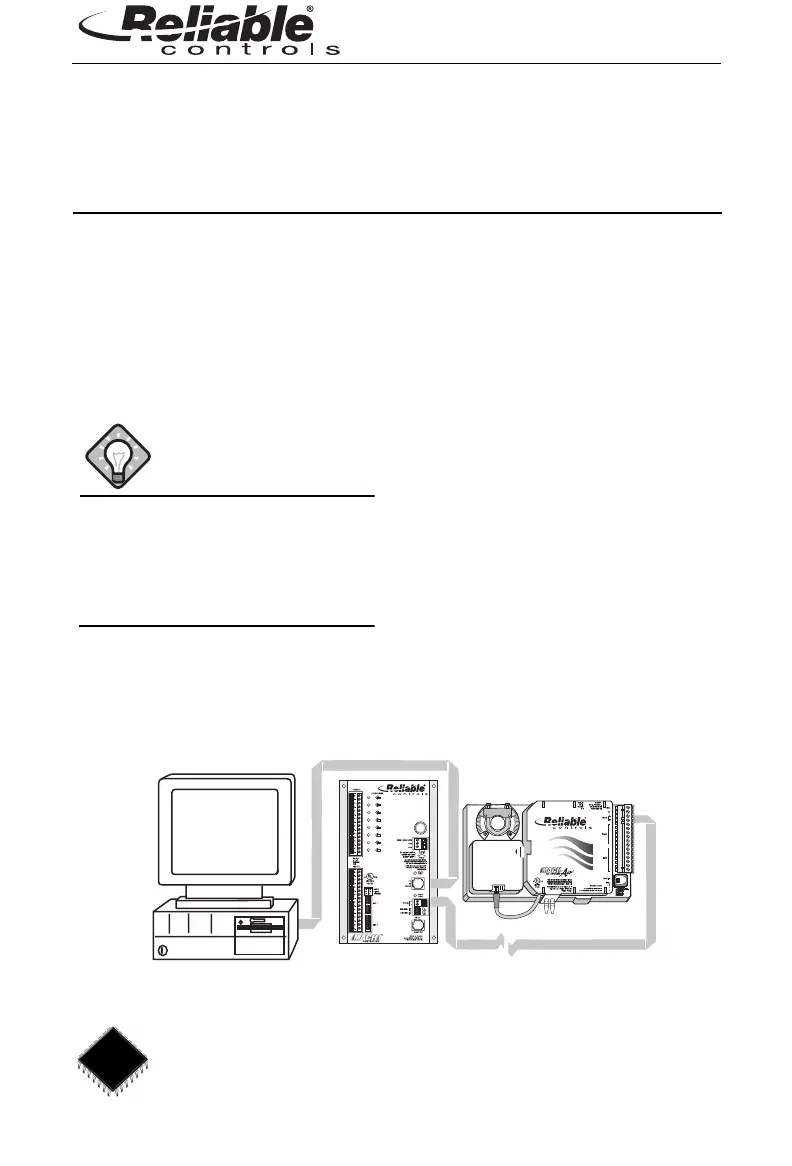

One way to access the
controller is through an EIA-
232 enabled controller on the
same system (as illustrated
below). An alternative is to use
the X-Port™ converter through
the SMART-Net™ port as
discussed on the next page.
A MACH1™, MACH2™, or MACH-
Global™ controller, or ETHER-
Link™ portal must be configured
as address one in the system.
(See MACH-Air™ Real Time Clock)
MACH1
™
MACH-Air
™
Operator Workstation
Peer Communications
