Reliable Controls MACH-Air User Manual

21
MACH-Air™ VAV Controller
Outputs
 2002 Reliable Controls™ Corporation
MA-T™ Single Stage Triac Outputs
The MA-T™ controller model has one single stage triac
output.
! Triac outputs are configured as
digital (binary).
! Each output can be connected
to a load or switching device
(relay).

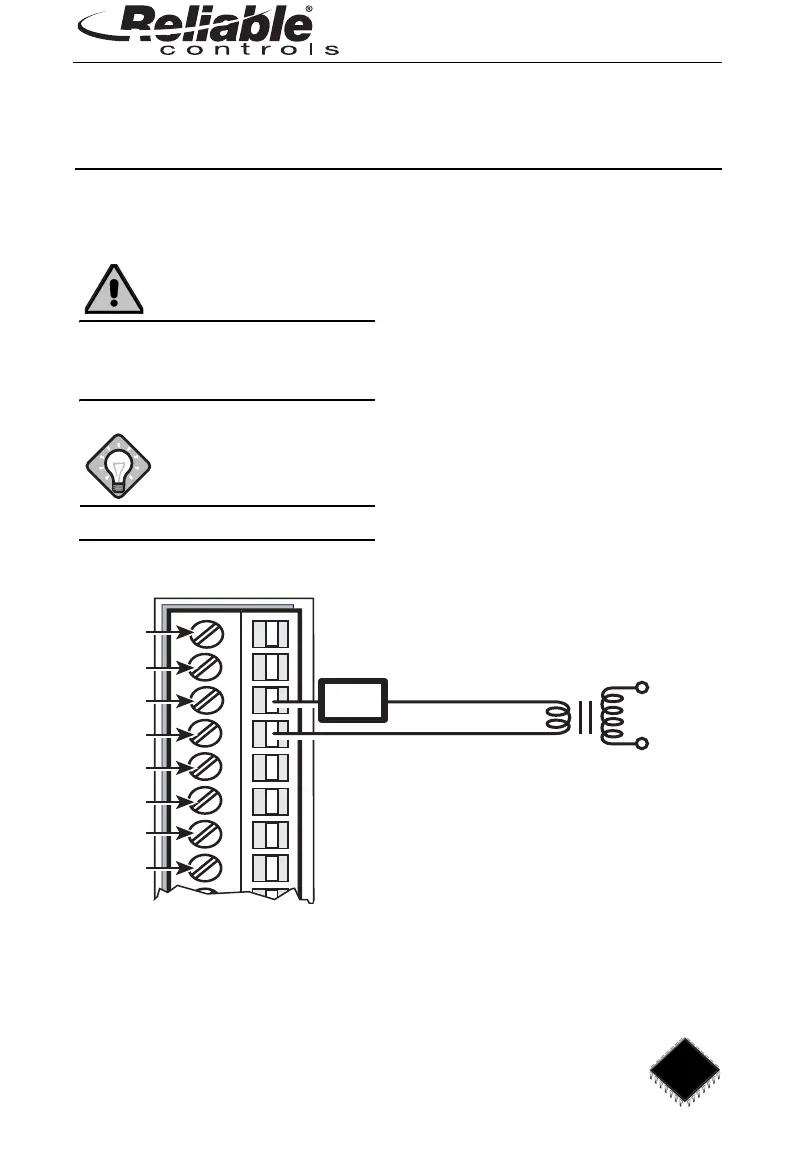

Connect the device as shown
in the diagram below.
Single stage triac outputs are
capable of switching 24 VAC at 1
Ampere.
Triacs switch AC voltage only.
A OUT+
A OUT -
TRIAC 1
RTN-T1
DS1-T1
DS1-T2
RTN-DS1
IN1 +
24VAC
120VAC
Transformer
LOAD
