MACH-Air™ VAV Controller
 2002 Reliable Controls™ Corporation
SETUP-Tool™
SETUP-Tool™

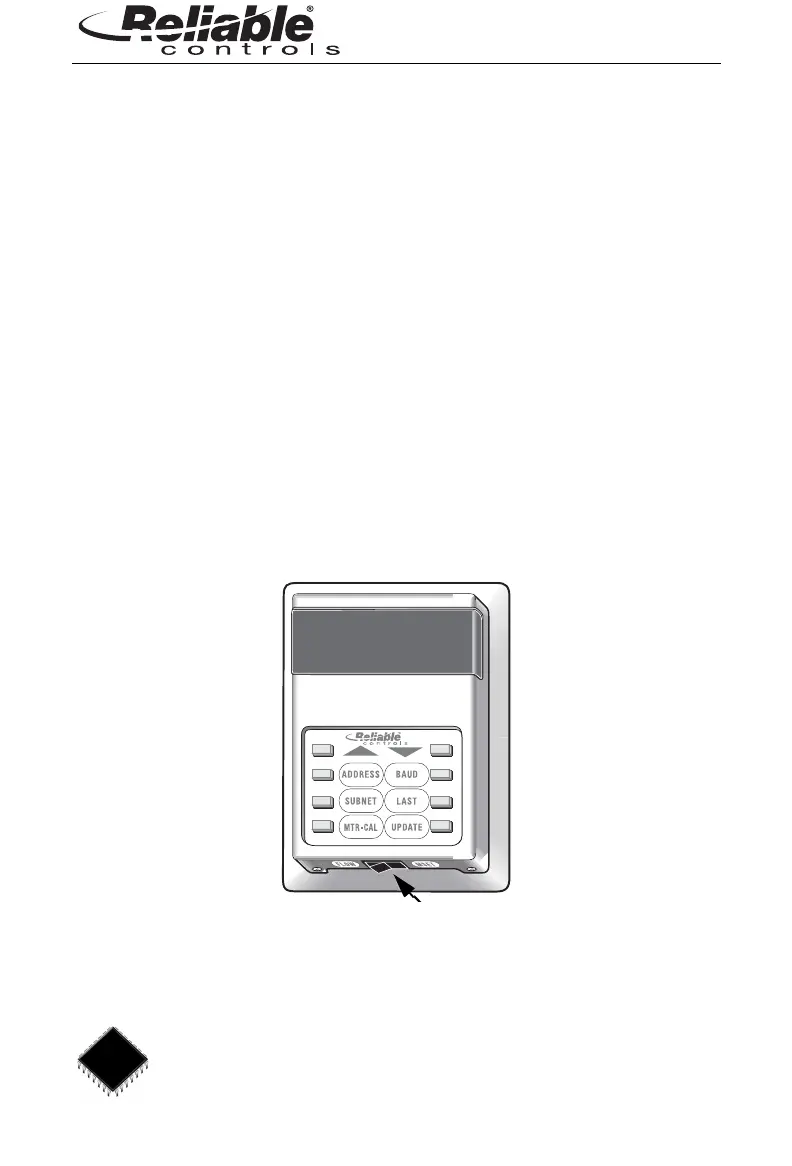

The SETUP-Tool™ is a specially designed SMART-Sensor™
used to configure the MACH-Air™ VAV controller. Each
MACH-Air™ VAV controller must be configured with the
SETUP-Tool™ prior to connection to the network, motor
calibration, or programming. The SETUP-Tool™ requires a
‘voice cable’ connection between the SETUP-Tool™ and the
SMART-Net™ port on the MACH-Air™ VAV controller. The
SETUP -Tool™ is powered by the MACH-Air™ VAV controller
and does not require a separate external power supply.
The SETUP-Tool™ has two modes of operation, MSET and
Flow mode. Mode selection is achieved with the rocker switch
on the bottom of the tool.
Mode Switch
