Reliance 3000 - Chair Assembly Diagrams; Figure 6: 3000 Chair Assembly Overview

IN-300014
** Please specify upholstery color when ordering.
To o r d e r c o m p l e t e U p h o l s t e r y S e t u s e P / N .
2764373 Cushion Set - 3000 - FX
FIGURE 6

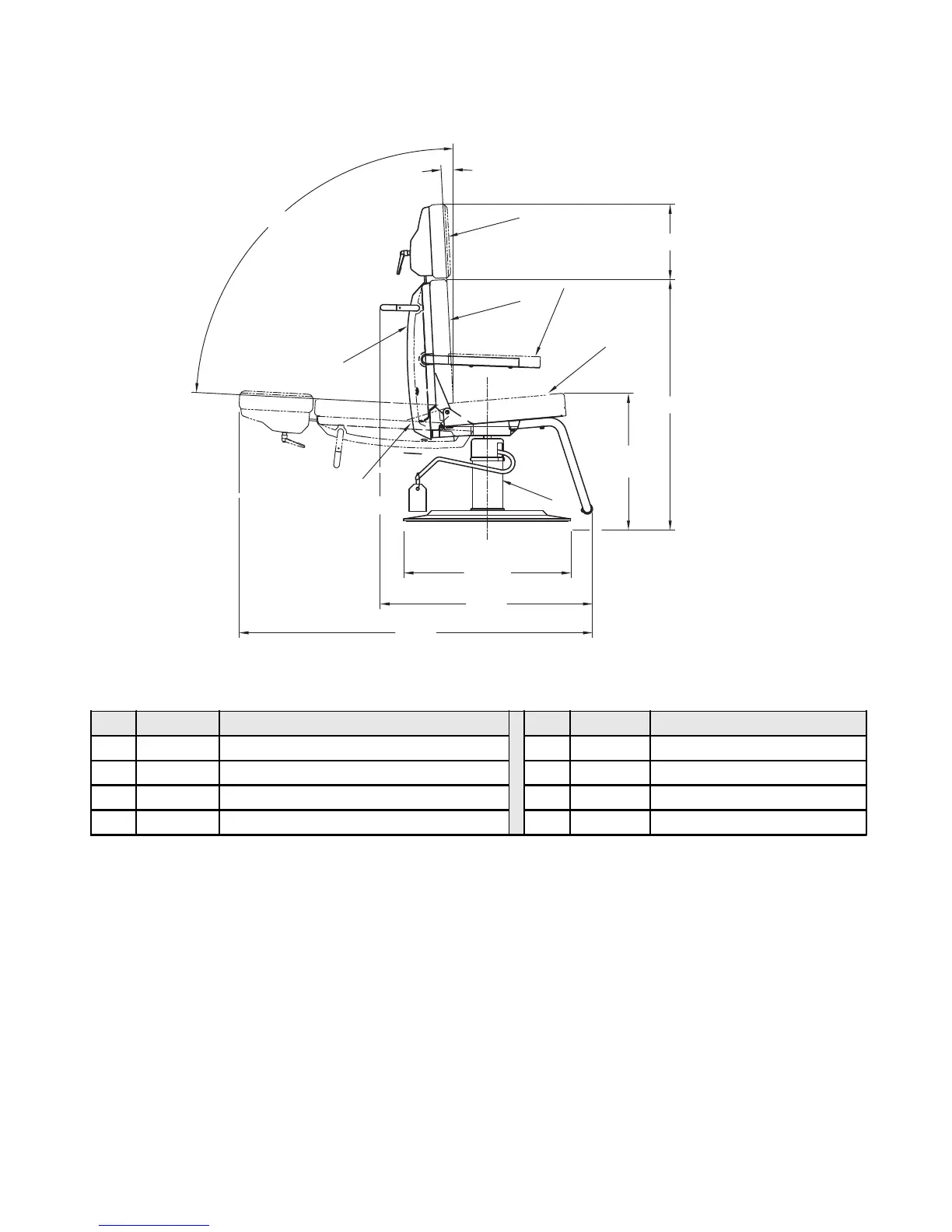

3000 CHAIR ASSEMBLY
3
2
5
1
4
6
MODEL NUMBER AND
SERIAL NUMBER PLATE
87°
3°
11.50”
38.00”±.25
21.00”±.25
(9.00 TRAVEL)
23.97”
33.00”
54.00”
ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION
1 Chair Top Assembly* (See Figure 7) 5
2 Base Assembly* (See Figure 8) 6
3 Headrest Assemblies (See Figures 10 thru 12) 7
4 3101273 Upholstered Back Assembly** 8
3101373 Upholstered Seat Assembly**
1555773 Upholstered Arm Assembly**
