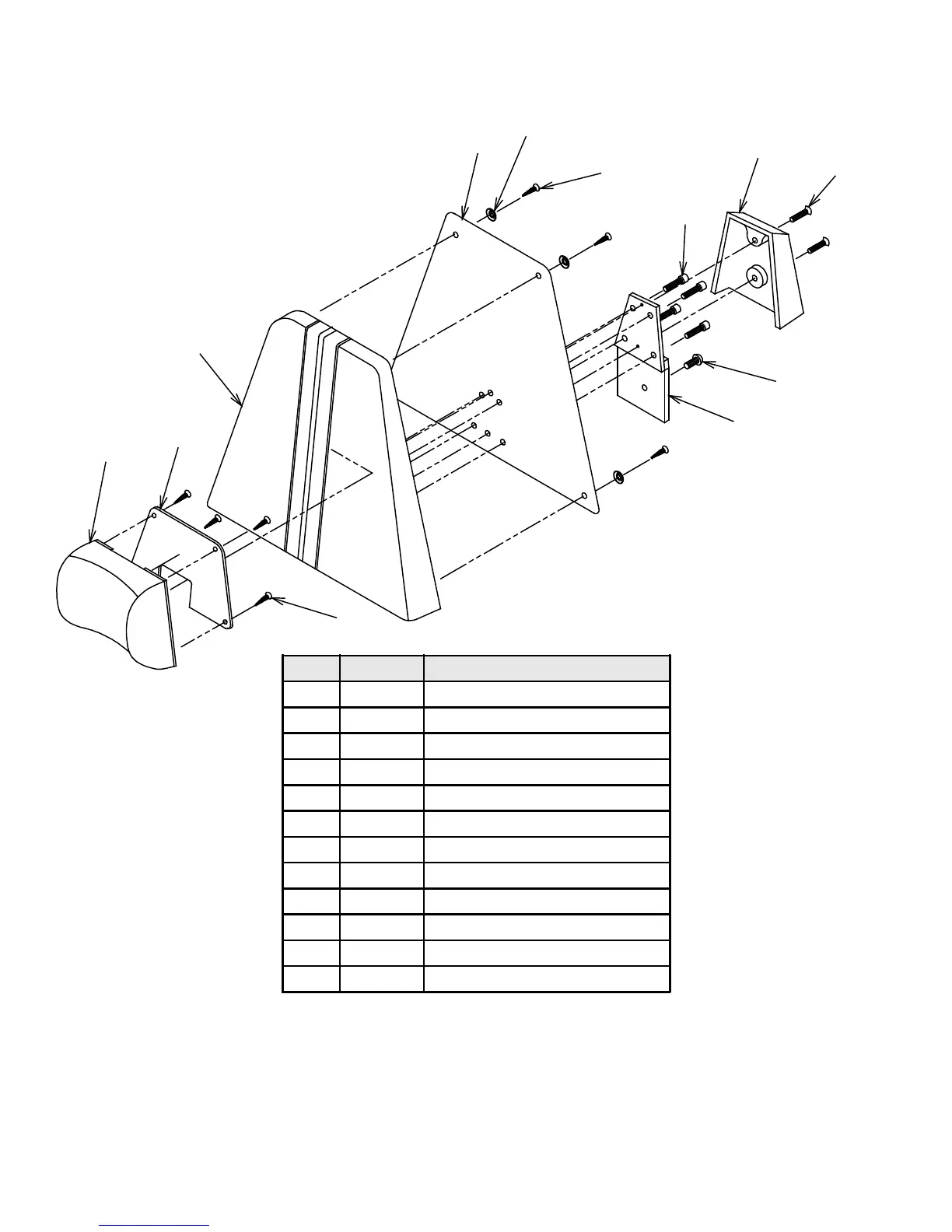

Reliance 3000 - Headrest Assembly Details; Figure 12: #10 Headrest Exploded View

IN-300026
FIGURE 12
# 10 HEADREST ASSEMBLY
To order complete Headrest Assembly use P/N.
665200 #10 Headrest Assembly*
*Please specify paint color when ordering.
** Please specify upholstery color when ordering.
3
5
4
2
7
6
11
1
8
12
10
9
(4)
(4)
(4)
ITEM PART NO. DESCRIPTION
1
0665073 Uph # 10 Board Assembly**
2 0574173 Pillow Assembly - #10**
3 0567903 High Back Cover*
4 0568003 Pillow Back Cover*
5 0845199 F.H.W.S. #6 x .50 - Phil
6 0569699 O.H.W.S. #6 x 3/4
7 0569799 #6 Finishing Washer
8 0557403 Mounting Plate Assembly
9 0123203 Bracket Cover*
10 0808699 F.H.C.S 1/4-20 x 1.00 - Socket
11 0788699 S.H.C.S. 1/4-20 x 1.00
12 1454799 B.H.C.S. 1/4-28 x 1/2 - Socket
Table Figure 12
# 10 HEADREST ASSEMBLY
