IN-30006
2. INSTALLATION
2.1. Unpacking
2.1.1. Chair
2.1.1.1. Open the shipping carton carefully and record any
shipping damage to the carton or to the contents.
2.1.1.2. Remove the upper portion of the crate from the skid
and unbolt the base clamping boards. It is recommended
that the Chair be located in position before unpacking the
upper structure.
2.1.1.3. Do not lift the Chair by the upper structure,
although the Chair may be tipped or slid by pushing or
pulling the upper structure.
2.1.1.4. A small tool packet containing three hexagon allen
wrenches, Sizes 1/8, 3/32 and 5/32 have been included
in the installation packet.
2.2. Assembly
Remove all wrappings. Only the headrest has been removed
for shipment.
2.2.1. Mounting the Headrest
2.2.1.1. Remove the Back Cushion assembly by pulling
straight out from the Chair. The Seat Cushions are both
attached with Velcro strips. This will permit access to the
seat-back.
2.2.1.2. Slide the Pivot Bracket on the Headrest into the
slot in the top of the Back Cover (Figure 1), and into the
bracket mounted under the Chair Back Cover.
2.2.1.3. lf the Pivot Bracket does not drop in smoothly, the
mounting screw (slightly off-center in the Chair Back) may
need to be backed out to allow the bracket to t. This screw
is a socket head set screw which requires a 1/8 hexagon
key allen wrench (included in the tool packet shipped with
the Chair) to loosen.
2.2.1.4. When the Pivot Bracket has been installed, tighten
the screw until it is snug. Replace the Back Cushion.
3. OPERATION
CAUTION- Caution should be taken to observe
that there are no obstructions (instruments,
trays, or tables) to impede the movement of
the Chair.
PRÉCAUTION : On devrait faire attention
pour s’assurer qu’il n’y a pas d’obstructions
(instruments, plateaux, tables) empêchant le
mouvement de la chaise.
WARNING- Chair capacity in the reclined
position 300 pounds; exceeding this limit may
result in insufficient stability.
AVERTISSANT- Présidez la capacité en
position reposée 136 kilogrammes ; dépasser
cette limite peut avoir comme conséquence
la stabilité insuffisante.
WARNING- Chair capacity in the upright
position 500 pounds.
AVERTISSANT- Présidez la capacité en
position droite 227 kilogrammes.

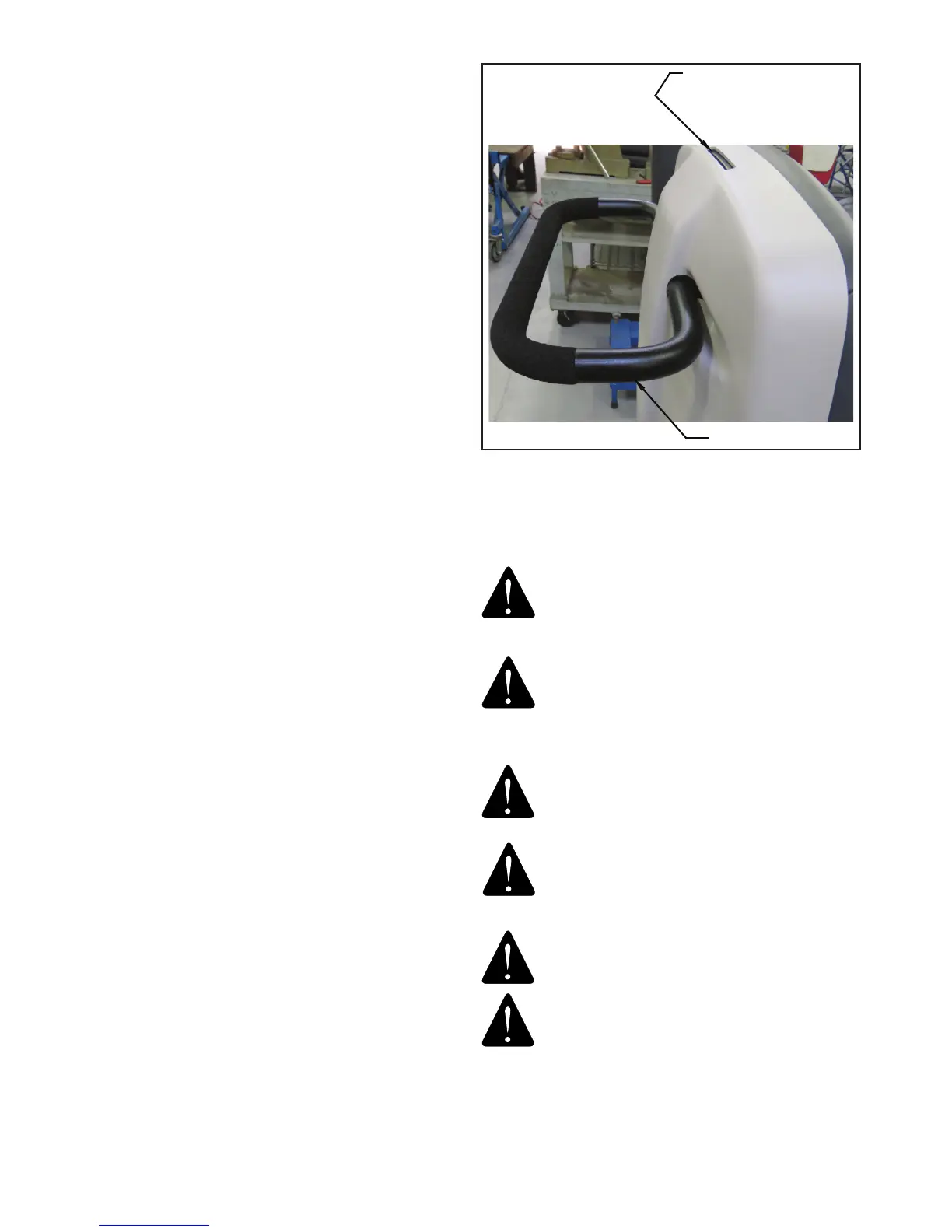

FIGURE 1
HEAD REST SLOT
RELEASE LEVER
