REMKO ML 263 DC - Unit Dimensions

2.2 Unit dimensions
Outdoor units
A
B
C
D
E

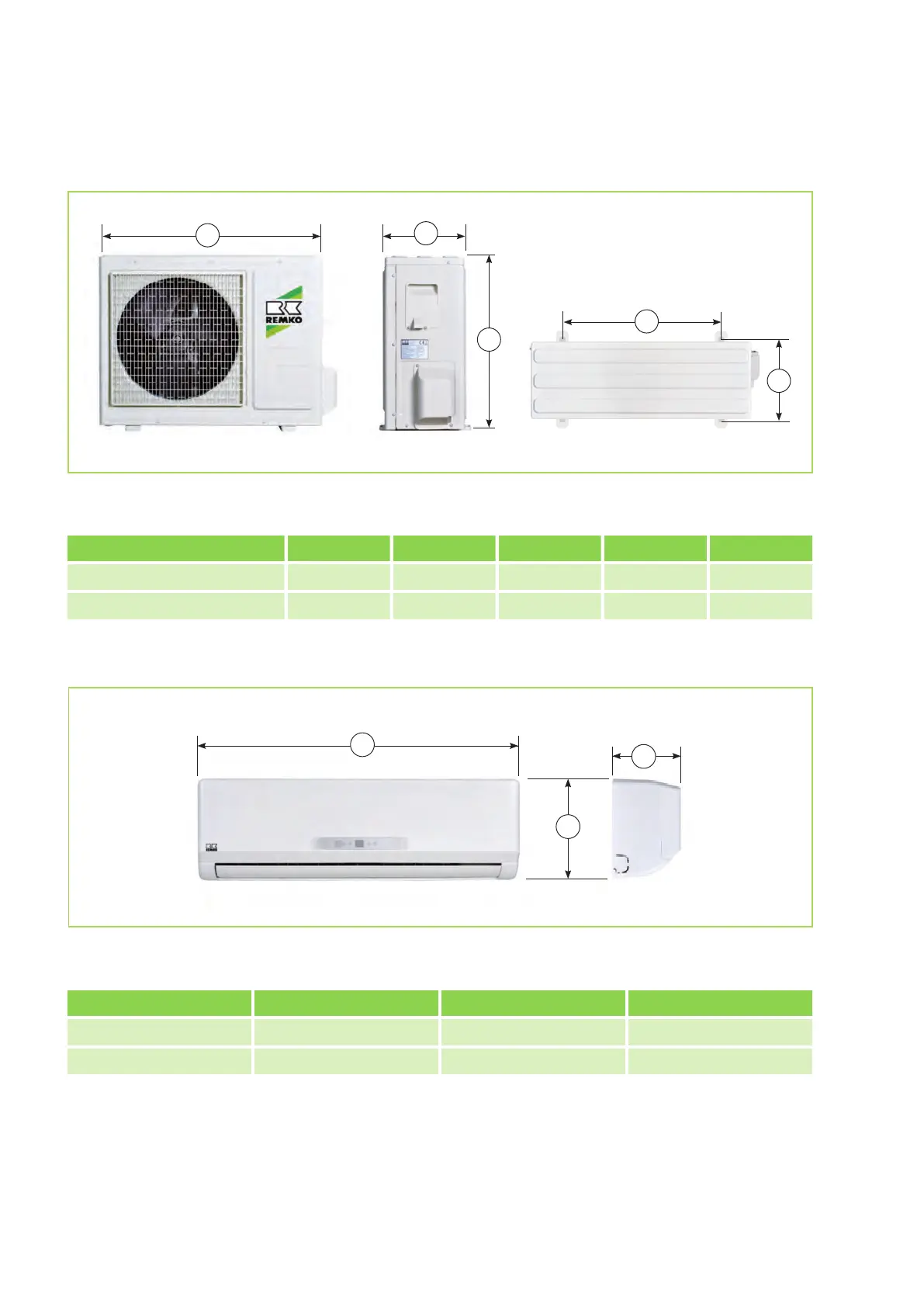

Fig. 1: Outdoor unit dimensions ML 263 DC AT-523 DC AT (All measurements in mm)
Dimensions (mm) A B C D E
ML 263 DC AT-353 DC AT 540 780 250 549 276
ML 523 DC AT 590 760 285 535 285
Indoor units
A
B
C
Fig. 2: Indoor unit dimensions ML 263 DC IT-523 DC IT (All measurements in mm)
Dimensions (mm) A B C
ML 263 DC IT-353 DC IT 275 800 188
ML 523 DC IT 275 940 205
We reserve the right to modify the dimensions and design as part of the ongoing technical development
process.
