5.5 Minimum clearances
Observe the minimum clearances to allow access for maintenance and repair work and facilitate optimum air
distribution.
2
1
2
1
A
B
C
D
E
E
C
A
B
F
IT AT

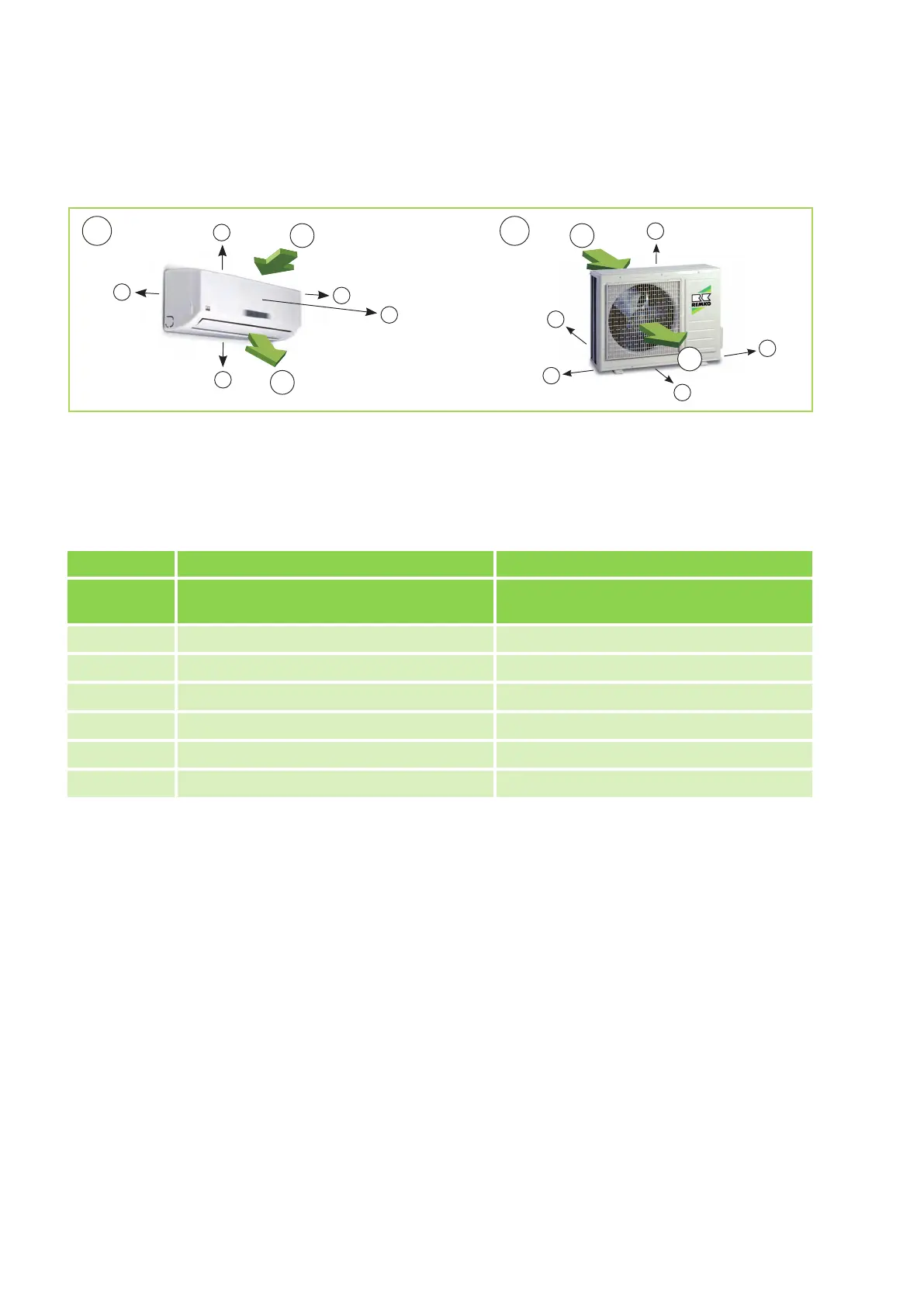

Fig. 29: Minimum clearances of the indoor unit and outdoor unit
AT: Outdoor unit
IT: Indoor unit
1: Air inlet
2: Air outlet
Indoor units Outdoor units
Dimensions
(mm)
ML 263 DC IT-523 DC IT ML 263 DC AT-523 DC AT
A 120 150
B 1500 700
C 120 400
D - 150
E 120 200
F 1700 -
REMKO ML...DC
26
