8.5 Electrical drawings
Indoor unit ML 263 DC IT
3
4
CE-KFR26G/BP3N1Y-11M.D.11.NP2-1
202302130849
L_IN
CN10
CN11
CN5
CN9
CN8
L_OUT
SW1
CN4
CN6
CN16
3
D
A
4
2
1
B
C
5

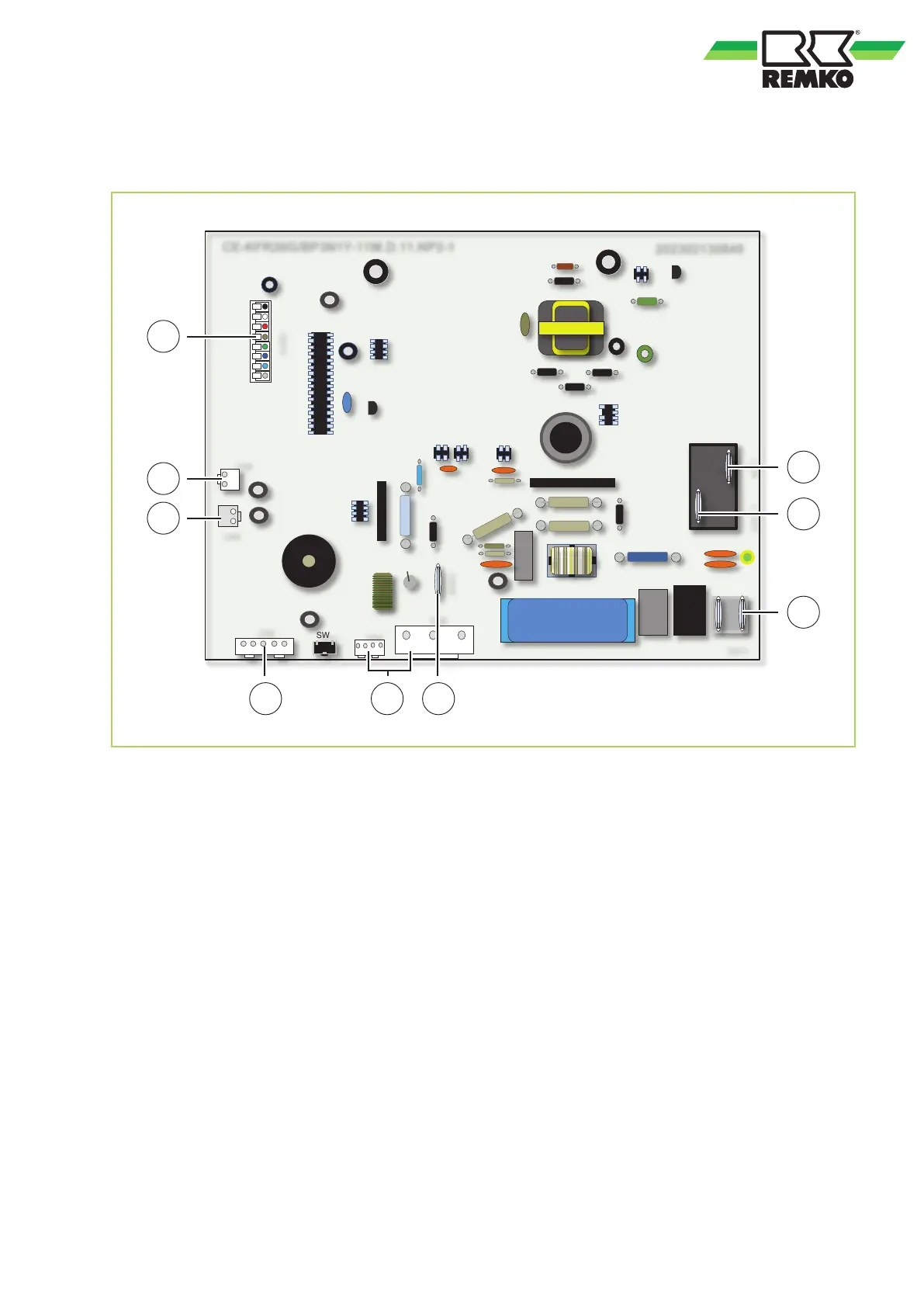

Fig. 45: Electrical drawings
A: Connection to terminal block, power supply and
supply to the indoor unit (contact 1)
B: Connection to terminal block, power supply and
supply to the indoor unit (contact L (1))
C: Connection to terminal block, power supply and
supply to the indoor unit (contact 2 (N))
D: Connection to terminal block, power supply and
supply to the indoor unit (contact S)
1: Display
2: Probe air inlet
3: Probe suction pipe
4: Swing motor
5: Evaporator fan motor / Evaporator fan board
37
