REMKO ML 263 DC - Condensate Pump Wiring

Connecting of optional condensate pump KP 6 / KP 8
L N PE
L N PE
L(1) 1 2(N) S
L(1) 1 2(N) S
L
N
WH
BK
PE
PE
A
B
C
1
2
3

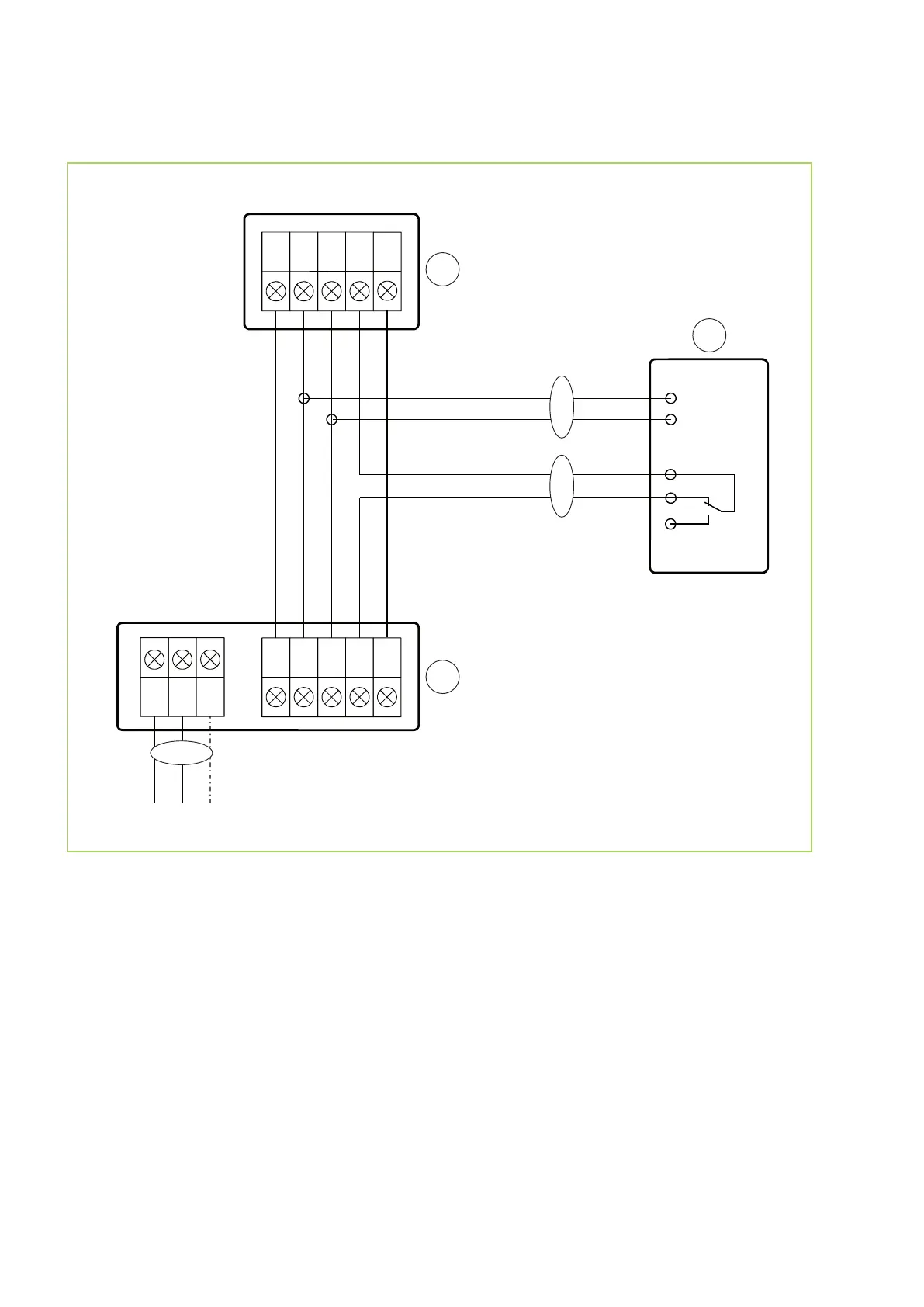

Fig. 44: Electrical wiring diagram
A: Outdoor unit
B: Indoor unit
C: Condensate pump KP 6 / KP 8
1: Power supply
2: Supply condensate pump
3: Fault contact condensate pump
BK: black
WH: white
REMKO ML...DC
