ENGINE AND PERIPHERALS
Overhauling the engine
10
10-101
Fitting the camshaft seal (timing side)
Fit the seal (18) to the mounting bush Mot. 1300. Oil
the external diameter of the seal. Fit the assembly on
to the camshaft (16).
If the seal lip marks the crankshaft mating face a
1.5 mm thick washer (fitting the tool) must be placed
between the seal and the tool to shift the seal.
Refit:
– the camshaft sprocket and tighten to a torque of
5 daNm,
– the injection pump rear mounting by tightening the
bolts to a torque of 2.5 daNm (do not tighten the
bolts at the front of the pump to carry out the
injection pump setting),
– Timing tensioning roller.

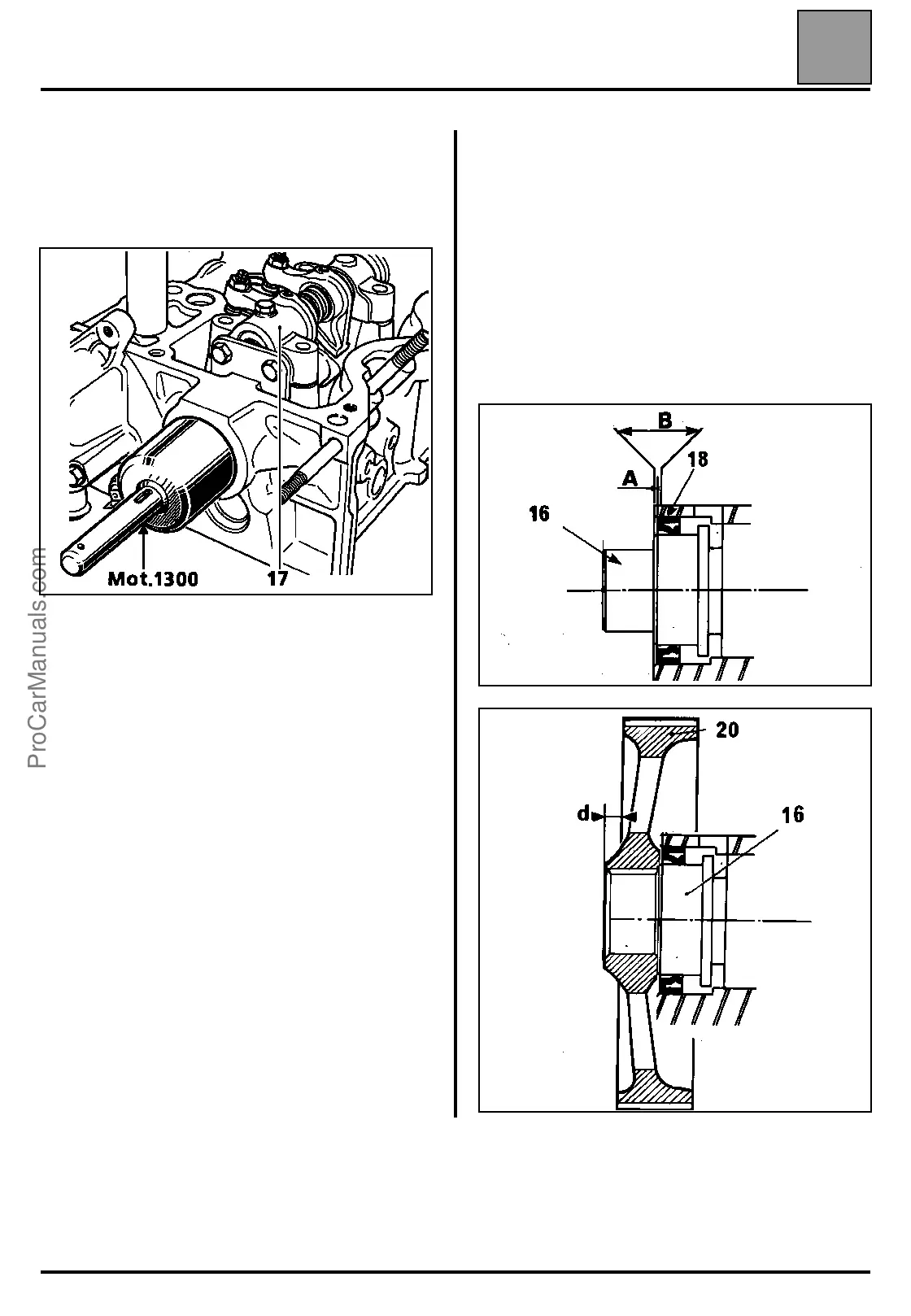

A: fitting dimension with tool Mot. 1300
B: fitting dimension with tool Mot. 1300, and the
washer (repair).
