ENGINE AND PERIPHERALS
Overhauling the engine
10
10-46
Overhauling the engine
REMOVING THE TOP ENGINE
Remove:
– the accessories belt,
– the air conditioning compressor (if fitted),
– the power assisted steering pump,
– the alternator,
– the multifunction mounting,
– the engine lifting bracket on the flywheel end.

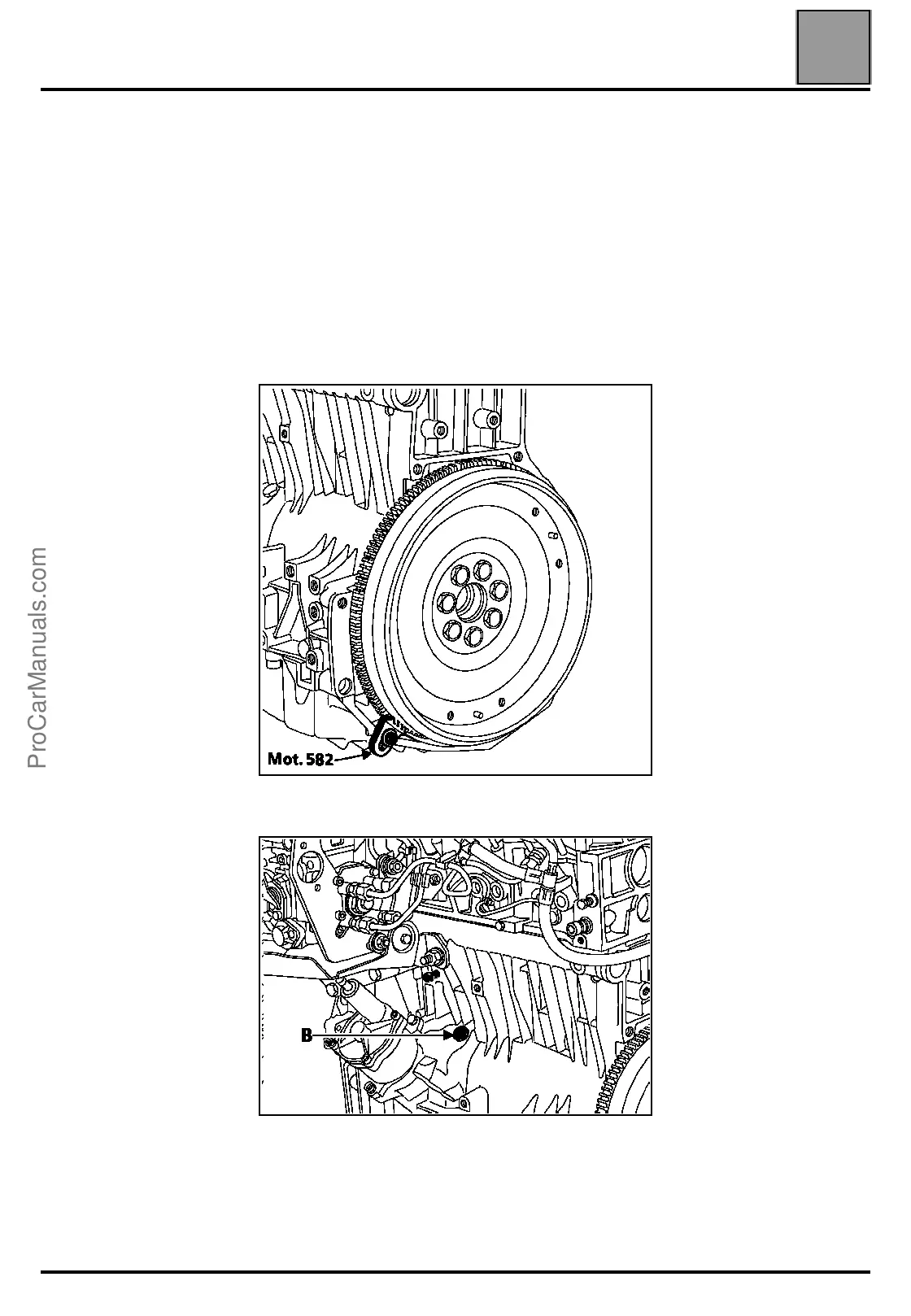

Fit the flywheel locking tool Mot. 582 and loosen the
accessories belt bolt.
Remove the TDC setting rod cap (B).
16531R
16535R1
