ENGINE AND PERIPHERALS
Overhauling the engine
10
10-66

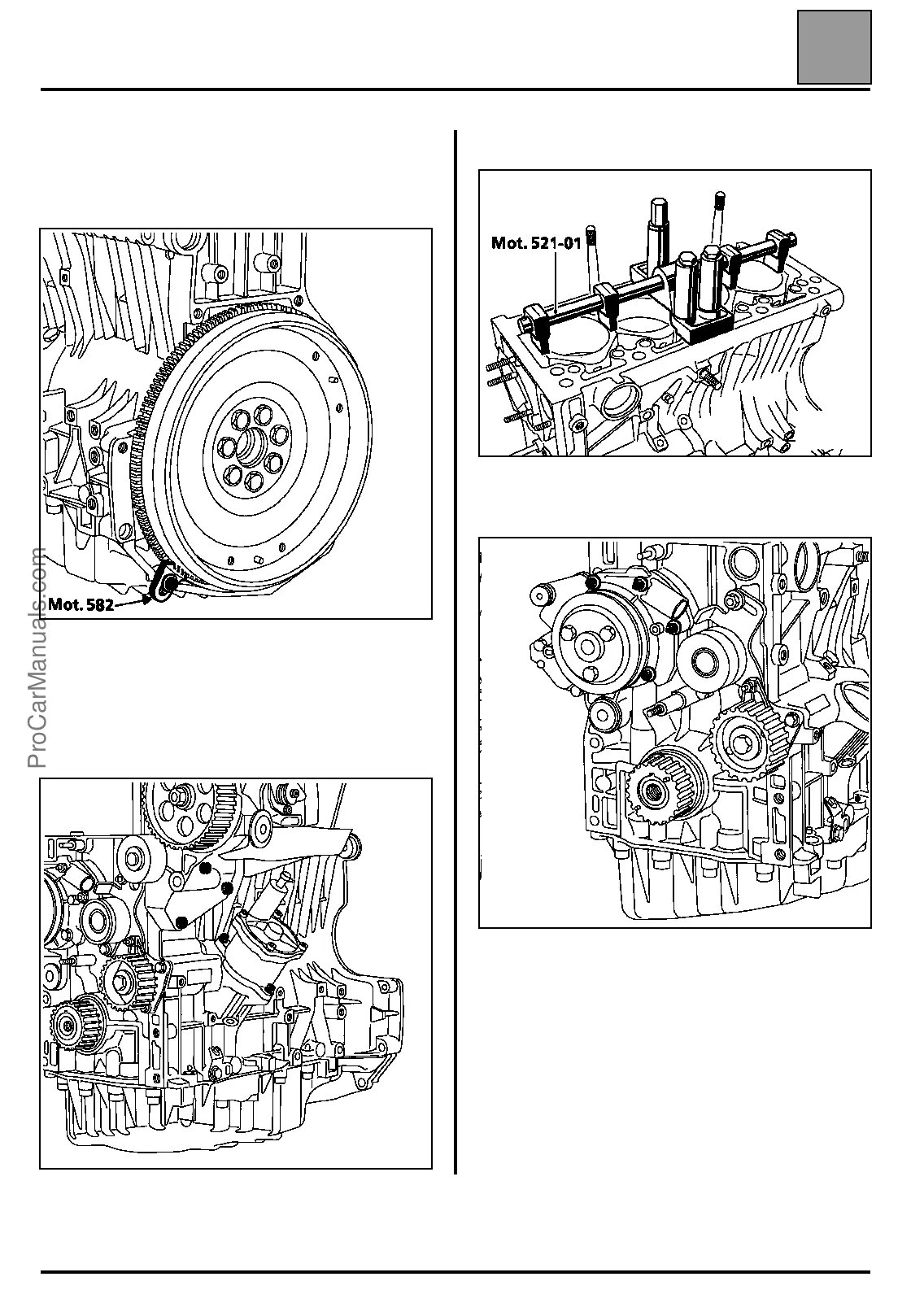

REMOVING THE BOTTOM ENGINE
Fit the flywheel locking tool Mot. 582 and remove the
clutch and the flywheel.
Unscrew the three mounting bolts on the injection
pump support to remove the unit comprising the pump,
the support and the injection pump pulley.
Remove the vacuum pump then remove the pinion
and the six pieces holding the oil pump.
Fit the cylinder liner clamp Mot. 521-01.
Remove:
ā the water pump.
16531R
16533S
16558R
16532-3S
