ENGINE AND PERIPHERALS
Overhauling the engine
10
10-51

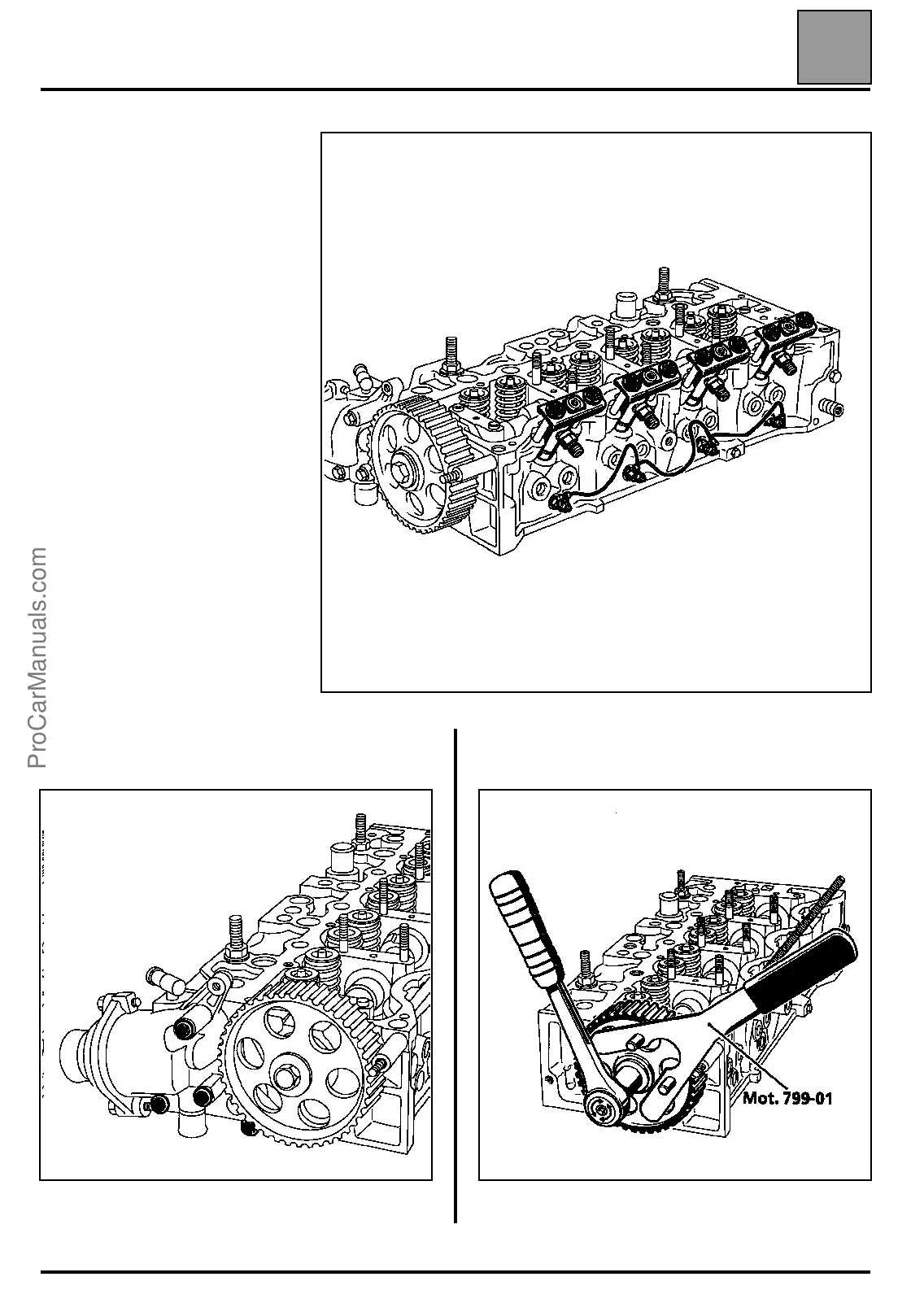

– the thermostatic unit, – the camshaft pulley using Mot. 799-01 (take care
with the key),
– the gasket.
STRIPPING THE CYLINDER
HEAD
Place the cylinder head on the
cylinder head support Mot. 1573.
Remove:
– the heater plugs and their
electrical wiring,
– the injectors and injector holders
with seals,
– the flame-shield washers
between the cylinder head and
the injector holder,
16534S 16544R
