ENGINE AND PERIPHERALS
Overhauling the engine
10
10-110
Injection pump setting

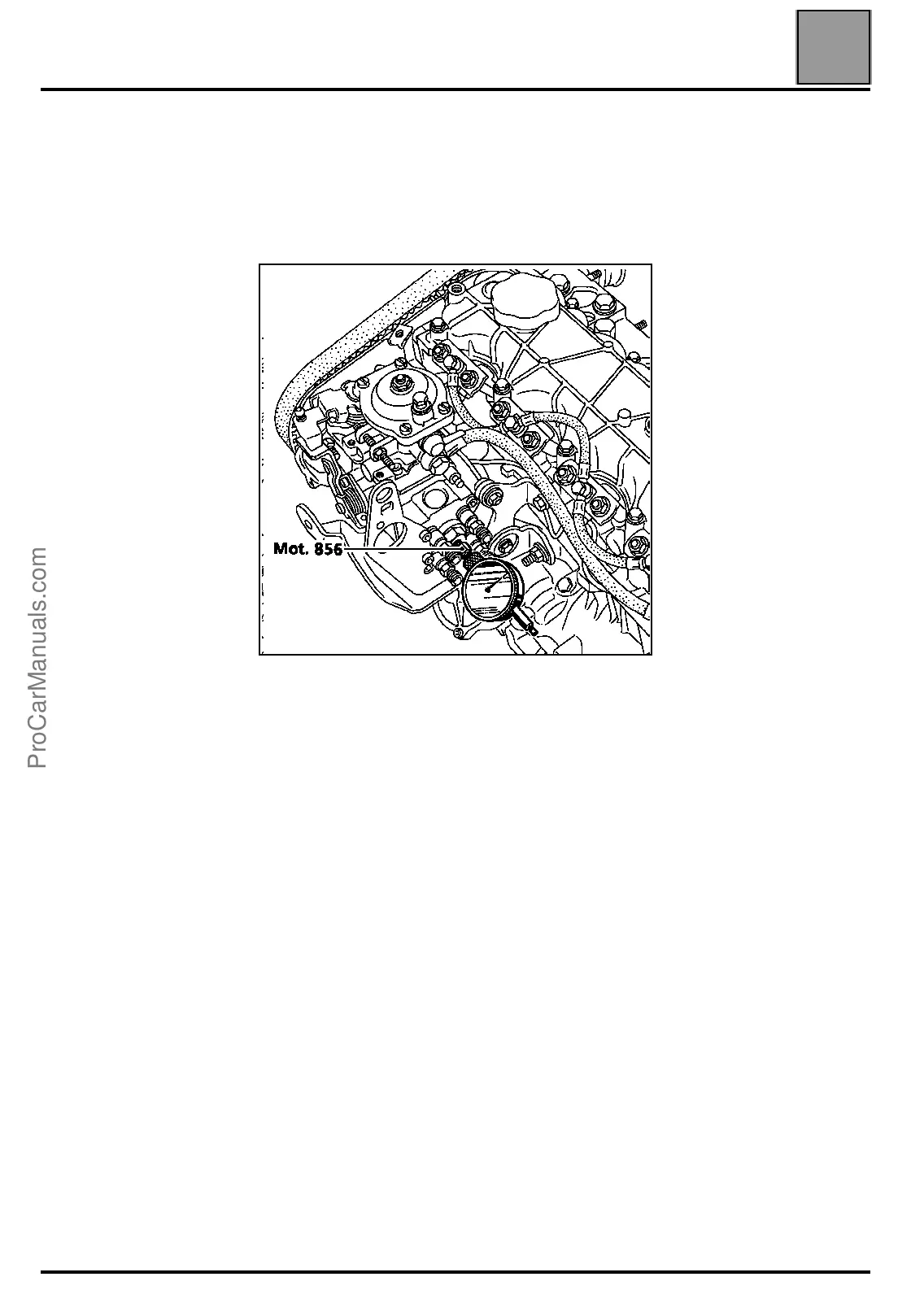

Remove the injector pump rear cap and fit dial gauge
support Mot. 856 and a dial gauge fitted with an
adapter.
Turn the engine over once and calibrate the dial gauge
on the bottom dead centre of the injection pump
piston (check that the dial gauge pin can move freely
in the pump body).
Turn the timing to the setting point (pin the engine
using Mot. 861 or Mot. 1054).
16541R1
